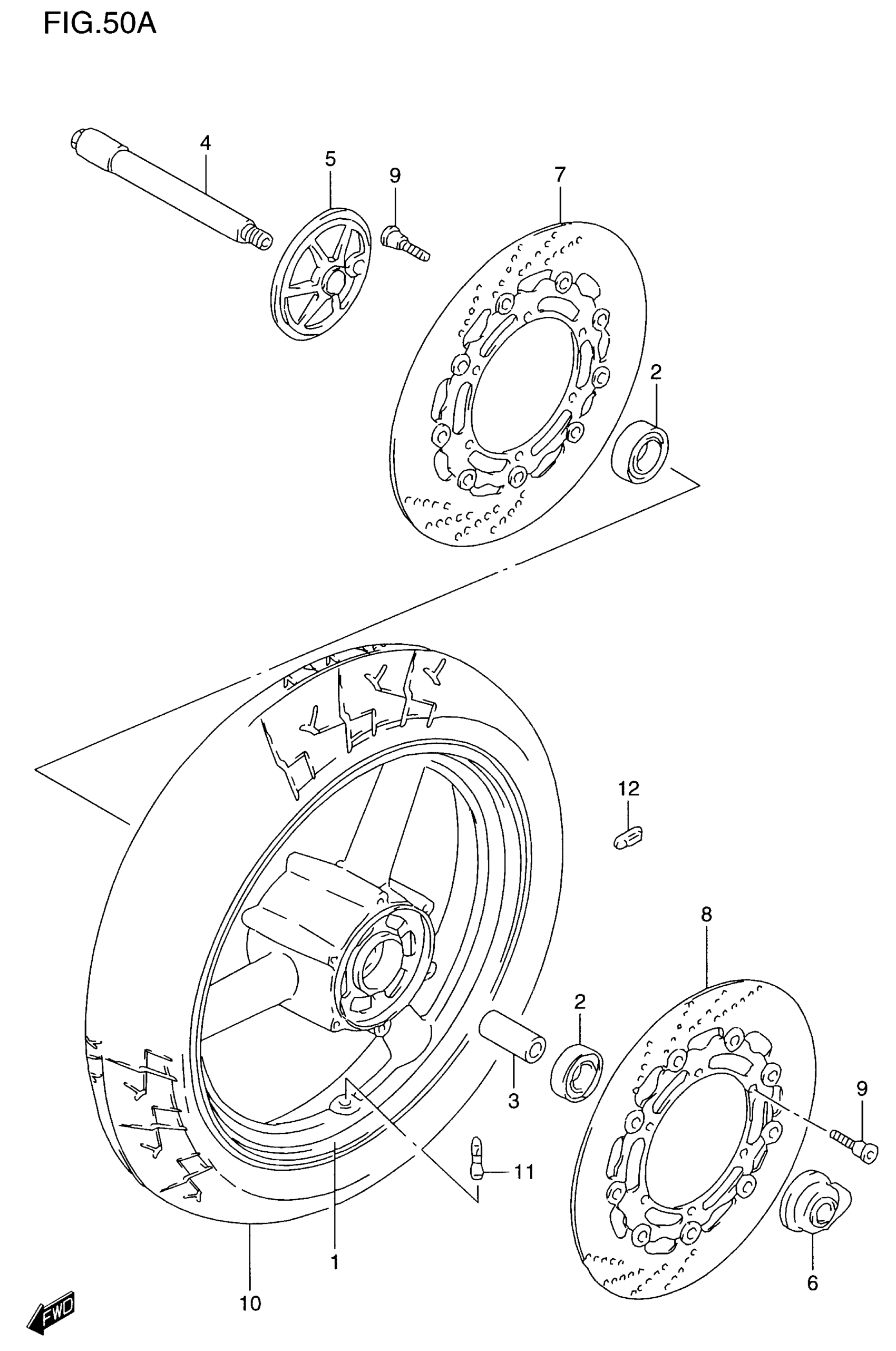

Suzuki GSF1200S (2000) FRONT WHEEL (GSF1200SAV) Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE This part replaces 54100-27810-35W.

54100-27811-35W

Unavailable

2

BEARING This part replaces 08123-62047.

08123-6204B

$15.93

3

SPACER (20.8X27.2X74)

09180-20103

$28.52

4

AXLE, FRONT

54711-27E50

Unavailable

5

PANEL, SPEED SENSOR FRONT

55720-27E50

Unavailable

6

BOX ASSY, SPEEDOMETER GEAR

54600-17C01

Unavailable

7

DISC, FRONT BRAKE RH

59210-27E50

Unavailable

8

DISC, FRONT BRAKE LH

59220-27E50

Unavailable

9

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.33

10

TIRE, FRONT 120/70 ZR17 (58W) (BRIDGESTONE)

55110-27E30

Unavailable

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

12

BALANCER, WHEEL (10G)

55411-00A00

$1.35

12

BALANCER, WHEEL NO.2 This part replaces 55412-00A01.

55412-17G00

$5.14
