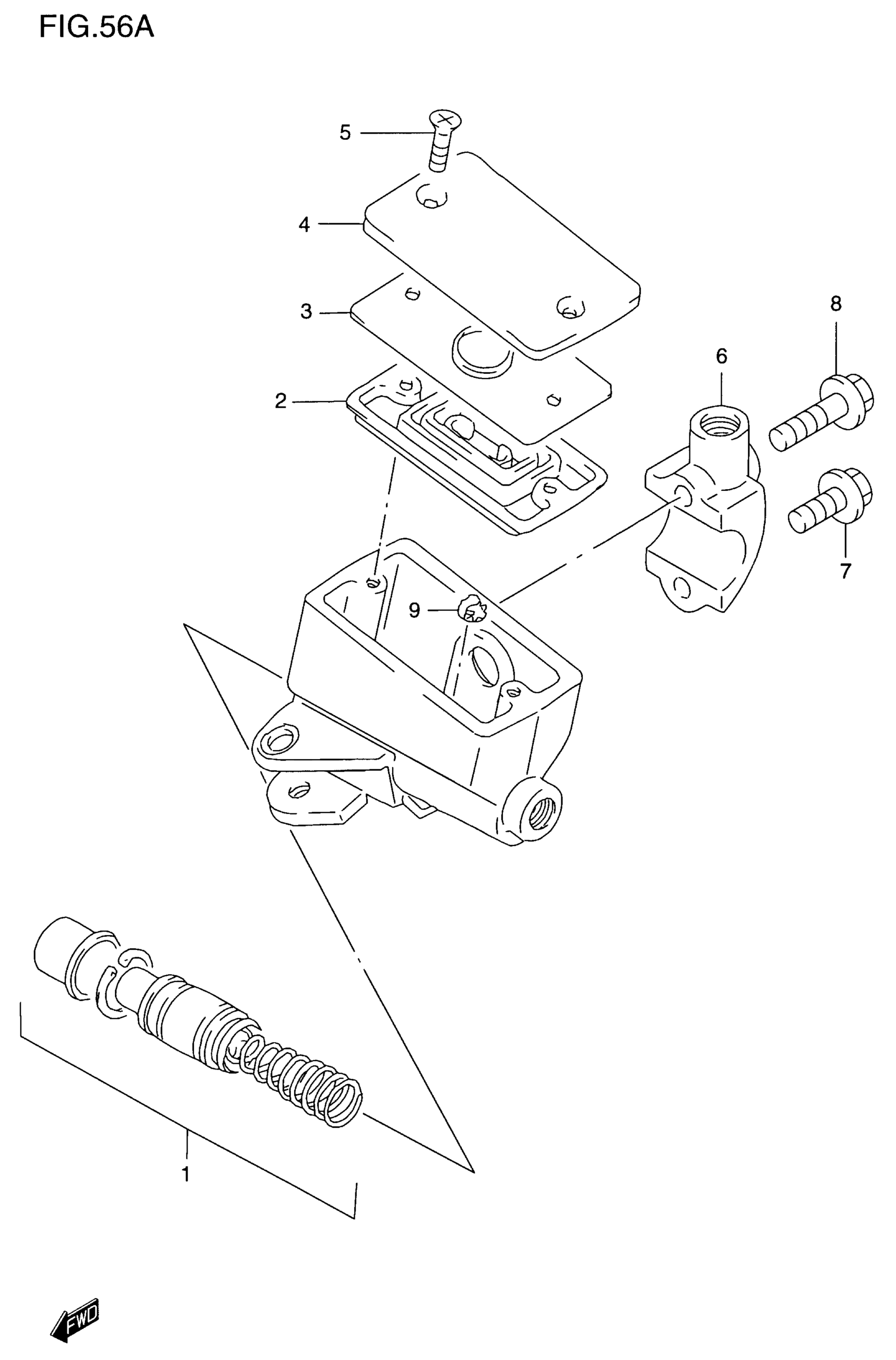

Suzuki GSF1200S (2000) FRONT MASTER CYLINDER (GSF1200SAV) Diagram

#

Description
Price

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 1 - 8

59600-27E50

Unavailable

1

PISTON/CUP SET

59600-27830

Unavailable

2

DIAPHRAGM

59667-49460

$9.78

3

PLATE

59668-41C00

$9.32

4

CAP

59669-41C00

$32.56

5

SCREW

69689-49300

$1.91

6

HOLDER

59671-44300

$17.37

7

BOLT HOLDER SET

59675-19C00

$4.02

8

BOLT (6X38)

59675-19C10

$4.82

9

PROTECTOR

59664-48B00

$11.02
