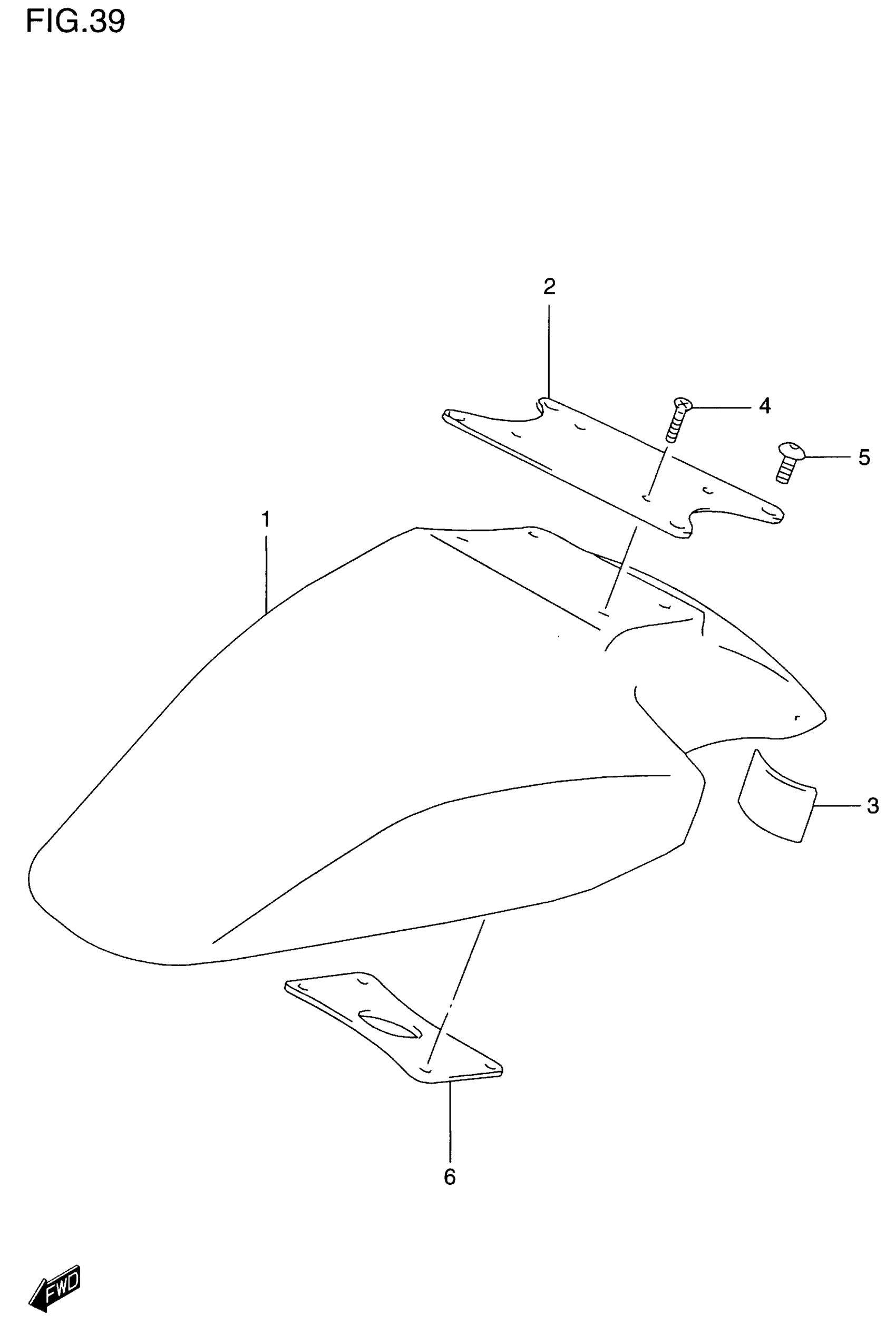

Suzuki GSF1200S (2000) FRONT FENDER Diagram

#

Description

Price

1

FENDER, FRONT (MAROON) | WITH OUT GSF1200SX

53111-17C21-22U

Unavailable

1

FENDER, FRONT (BLUE) | GSF1200SV

53111-17C21-Y0N

Unavailable

1

FENDER, FRONT (BLACK) | WITH OUT GSF1200SY

53111-17C21-33J

Unavailable

1

FENDER, FRONT (GREEN) | GSF1200SX

53111-17C21-Y7G

Unavailable

1

FENDER, FRONT (SILVER) | GSF1200SY

53111-17C21-YC7

Unavailable

2

BRACE, FRONT FENDER

53114-31E00

Unavailable

3

CUSHION,FR FEND This part replaces 53145-17C11.

53145-17C12

$5.12

4

SCREW (5X18)

09139-05032

$1.89

5

SCREW (8X16)

09139-08007

$3.70

6

BRACE, FRONT FENDER INNER

53210-17C00

$12.82
