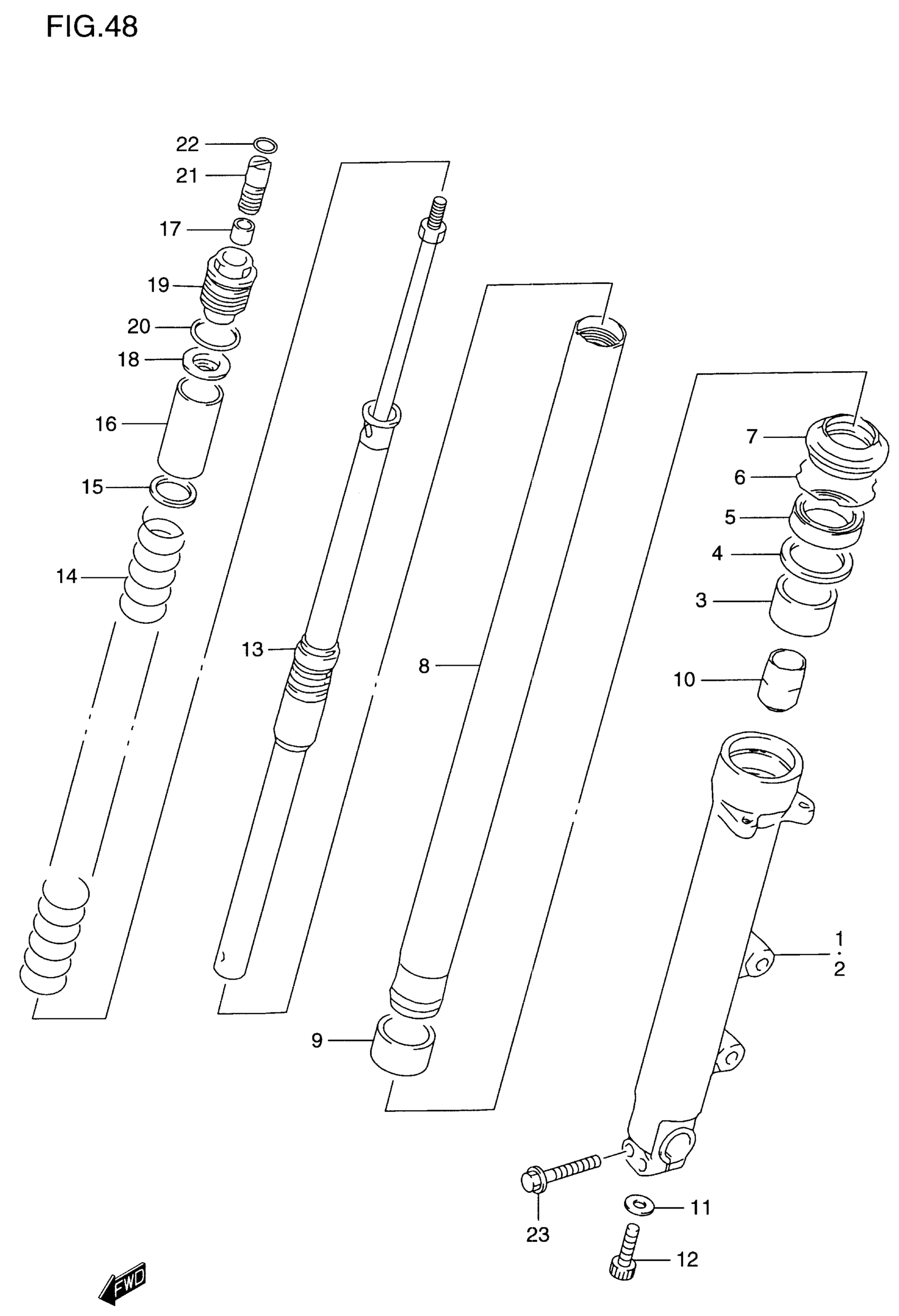

Suzuki GSF1200S (2000) FRONT DAMPER (GSF1200SV/SW/SX/SY) Diagram

#

Description
Price

DAMPER ASSY, FRONT FORK RH

51103-27E70

Unavailable

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 23

51104-27E20

Unavailable

1

TUBE, OUTER RH

51130-27E40

Unavailable

2

TUBE, OUTER LH

51140-27E00

Unavailable

3

BUSH, GUIDE

51152-31E00

$22.22

4

.SPACER, SEAL

51168-17C00

$6.28

5

SEAL, OIL

51153-14D00

$22.96

6

RING, STOPPER

51556-38B00

$7.22

7

SEAL, DUST

51173-29E00

$26.58

8

TUBE, INNER

51110-27E00

$523.65

9

.BUSH,SLIDE This part replaces 51121-17C00.

51121-07J00

$21.58

10

PIECE, OIL LOCK

51195-31E00

$30.22

11

GASKET

51148-36011

$3.56

12

BOLT

51147-48130

$4.34

13

DAMPER, FRONT This part replaces 52110-27E00.

52110-27E10

Unavailable

14

SPRING, FRONT

51171-27E00

Unavailable

15

SEAT, SPRING LOWER

51186-17C00

$7.53

16

COLLAR, SPRING (35X37X50) | GSF1200SV/SW

51176-17C00

Unavailable

16

COLLAR, SPRING (35X37X50) | GSF1200SX ~F.NO.X2101525

51176-17C00

Unavailable

16

COLLAR, SPRING (32.9X34X50) | GSF1200SX F.NO.X2101526~

51176-12C10

$13.92

16

COLLAR, SPRING (32.9X34X50) | GSX1200SY

51176-12C10

$13.92

17

.NUT

51827-27E00

Unavailable

18

SEAT, SPRING UPPER

51172-17C00

$14.20

19

BOLT, FORK

51189-14D00

Unavailable

20

O RING

09280-14011

$4.77

21

ADJUSTER, SPRING

51185-31E00

Unavailable

22

O RING

51117-17C00

$5.95

23

BOLT, RH

01550-08457

$4.00
