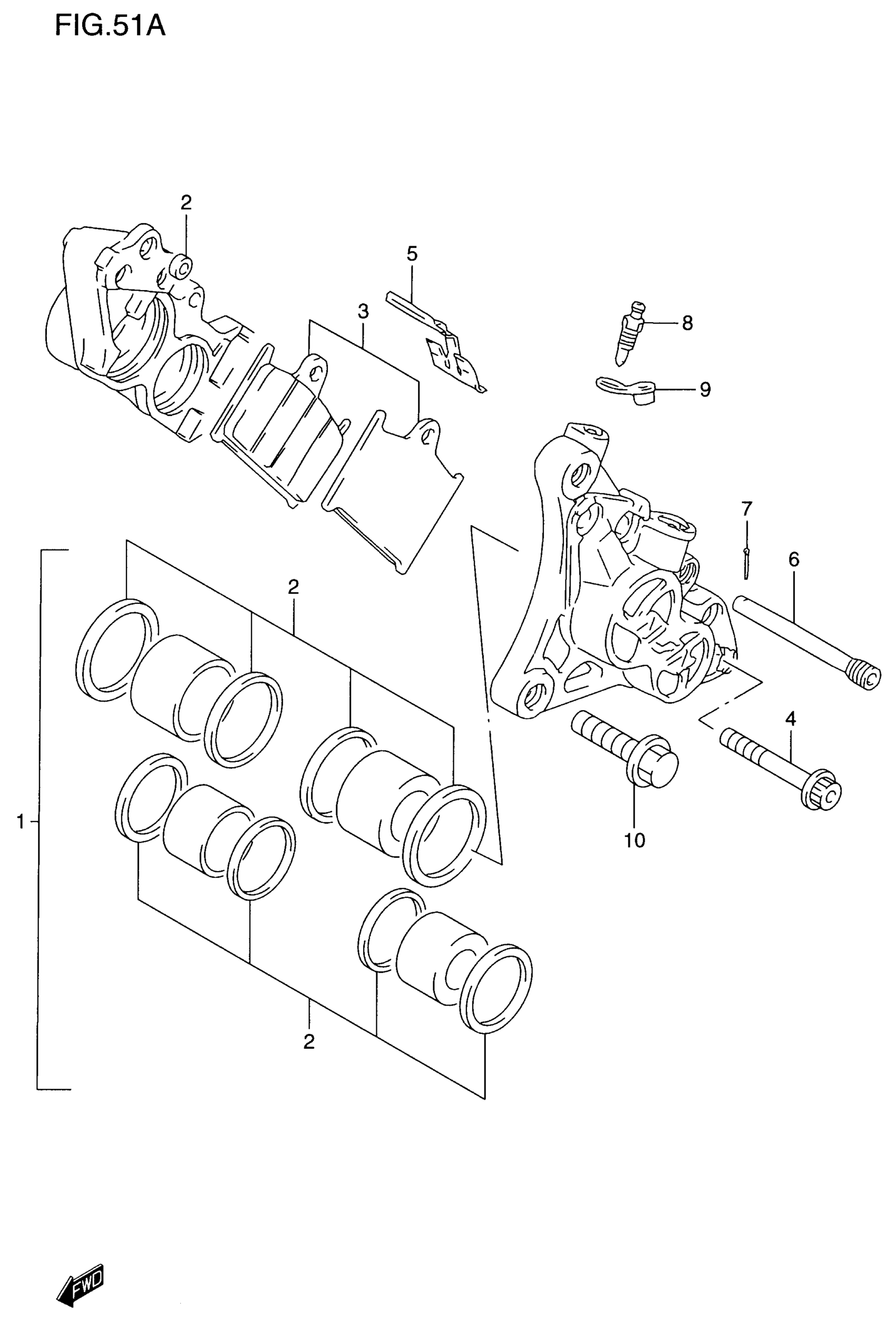

Suzuki GSF1200S (2000) FRONT CALIPER (GSF1200SAV) Diagram

#

Description
Price

CALIPER ASSY, FRONT RH

59100-27E50

Unavailable

CALIPER ASSY, FRONT LH | Includes Item(s) 1 - 9

59300-27E50

Unavailable

1

PISTON SET

59100-27820

Unavailable

2

SEAL SET, PISTON

59100-27830

Unavailable

3

PAD SET

59100-27840

Unavailable

4

BOLT

59145-33C00

Unavailable

5

SPRING

59315-17C00

$13.67

6

PIN

59345-33C00

$30.22

7

PIN This part replaces 04111-16208.

04111-1620A

$1.49

8

BLEEDER

59121-01A00

$8.73

9

CAP

59122-01A00

$4.34

10

BOLT This part replaces 01550-10303.

01550-1030A

$3.55
