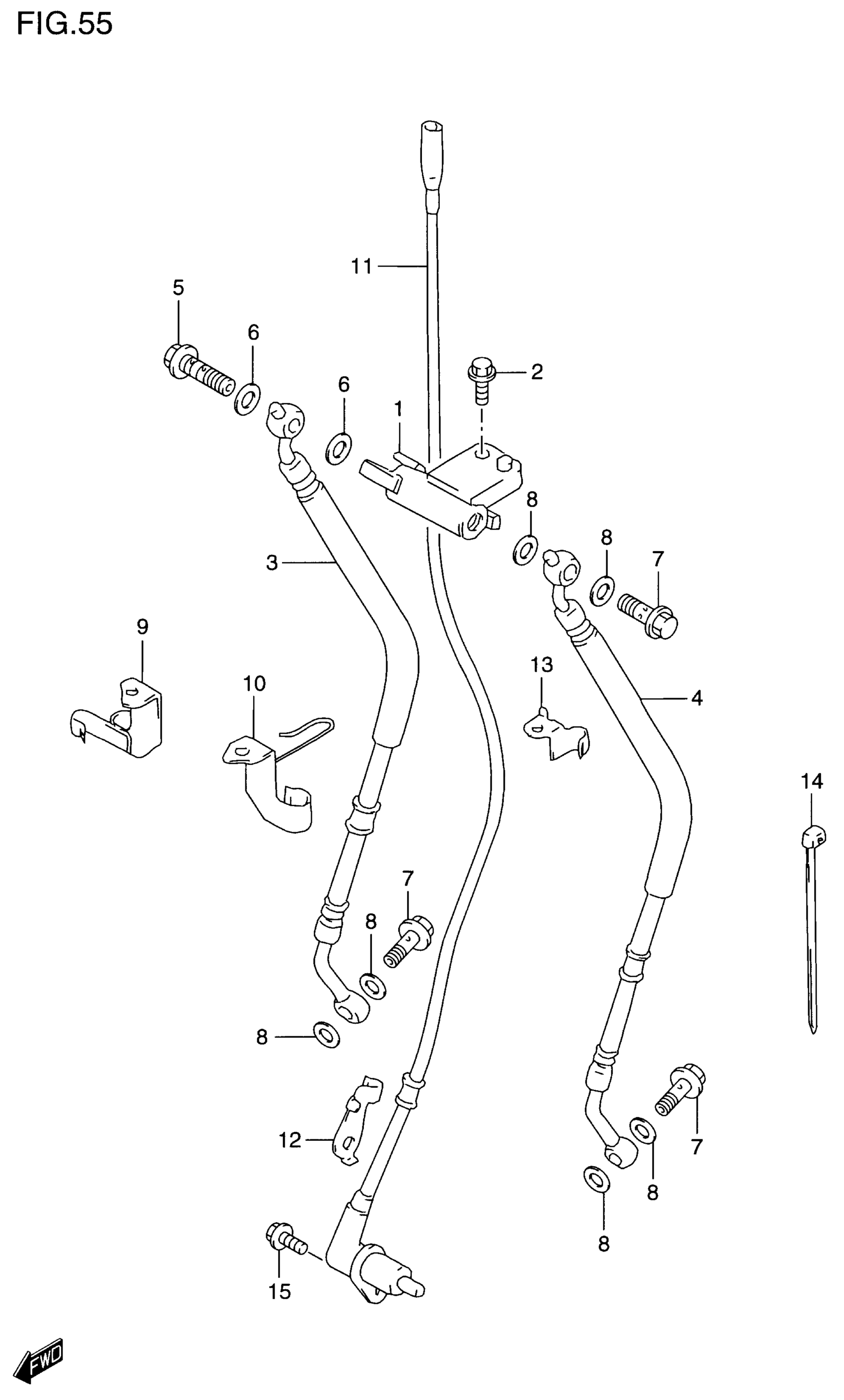

Suzuki GSF1200S (2000) FRONT BRAKE HOSE (GSF1200SAV) Diagram

#

Description

Price

1

JOINT, BRAKE HOSE

59491-17E00

Unavailable

2

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

3

HOSE, FRONT BRAKE RH

59240-27E50

Unavailable

4

HOSE, FRONT BRAKE LH

59440-27E50

Unavailable

5

UNION This part replaces 09360-10043.

09360-10063

$7.85

6

WASHER (10X15X1.5)

09161-10009

$1.84

7

UNION This part replaces 09360-10041.

09360-10061

$6.43

8

WASHER (10X15X1.5)

09161-10009

$1.84

9

CLAMP, BRAKE HOSE RH

59260-27E50

Unavailable

10

CLAMP, BRAKE HOSE LH

59260-27E00

Unavailable

11

SENSOR, FRONT WHEEL

55710-27E50

Unavailable

12

CLAMP, SENSOR FORK

55732-27E50

Unavailable

13

CLAMP, SENSOR JOINT

55731-27E50

Unavailable

14

CLAMP

09407-14407

$3.57

15

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32
