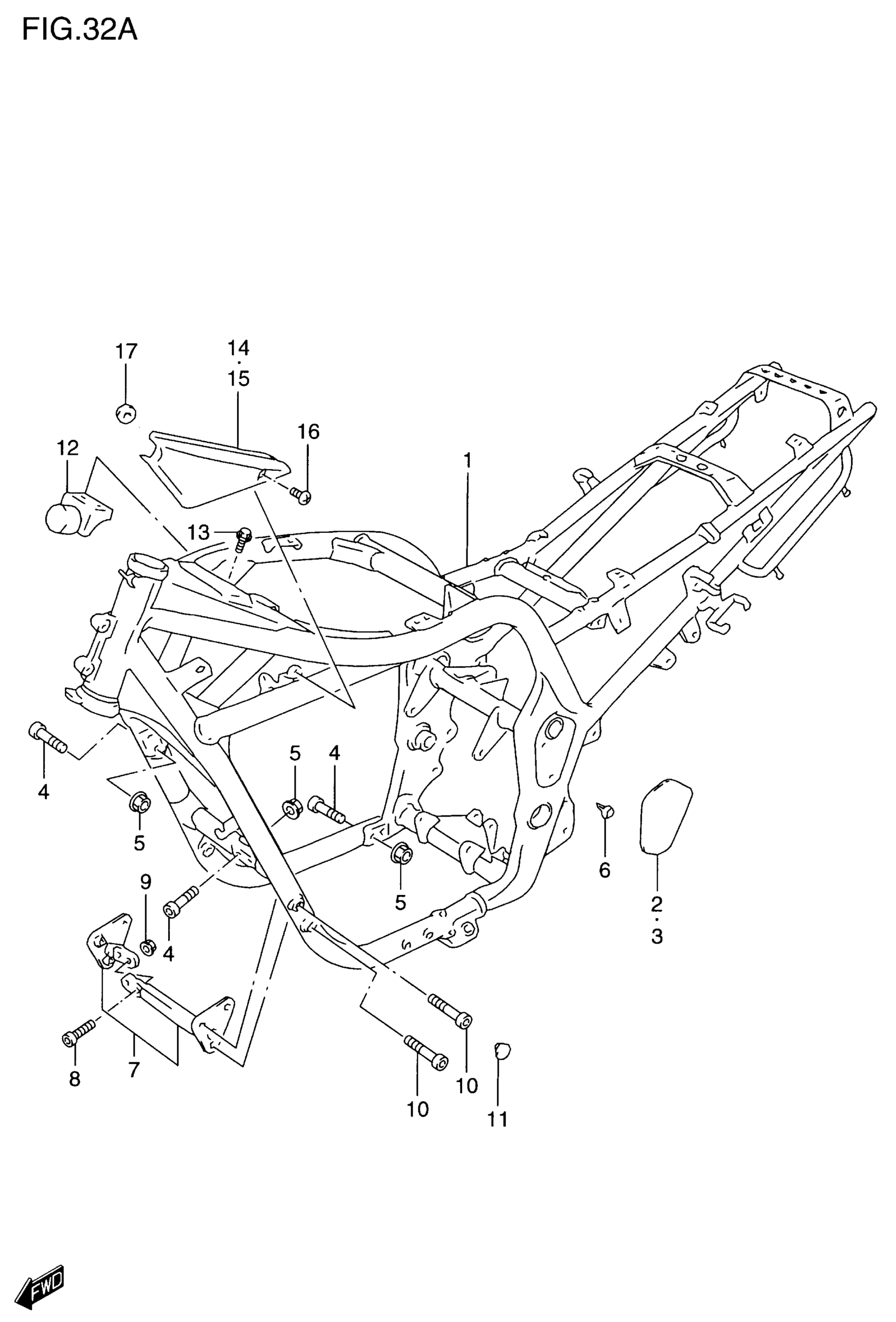

Suzuki GSF1200S (2000) FRAME (MODEL X) Diagram

#

Description
Price

1

FRAME (BLACK)

41100-27E61-33J

Unavailable

1

FRAME (GREEN)

41100-27E61-Y7G

Unavailable

1

FRAME (BLACK) | E33

41100-27E71-33J

Unavailable

1

FRAME (GREEN) | E33

41100-27E71-Y7G

Unavailable

2

COVER, FRAME BODY RH

41639-26E00

$20.77

3

COVER, FRAME BODY LH

41649-26E00

$20.77

4

BOLT (10X33)

09106-10019

$3.50

5

NUT This part replaces 08319-31103.

08319-3110A

$2.73

6

CLIP

09409-07329

$3.15

7

PLATE, ENGINE MOUNT (BLACK)

41900-27E00-33J

Unavailable

7

PLATE, ENGINE MOUNT (GREEN) | Includes Item(s) 8 - 9

41900-27E00-Y7G

Unavailable

8

BOLT This part replaces 07120-10303.

07120-1030B

$5.18

9

NUT This part replaces 08319-31103.

08319-3110A

$2.73

10

BOLT This part replaces 07130-08503.

07130-0850A

$4.17

11

CAP

09250-08016

$2.53

12

DAMPER, FRAME

42550-27E50

Unavailable

13

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

14

COVER, FRAME HEAD RH (BLACK)

47511-26E00-291

Unavailable

15

COVER, FRAME HEAD LH (BLACK)

47521-26E00-291

Unavailable

16

SCREW

09139-05021

$1.72

17

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93
