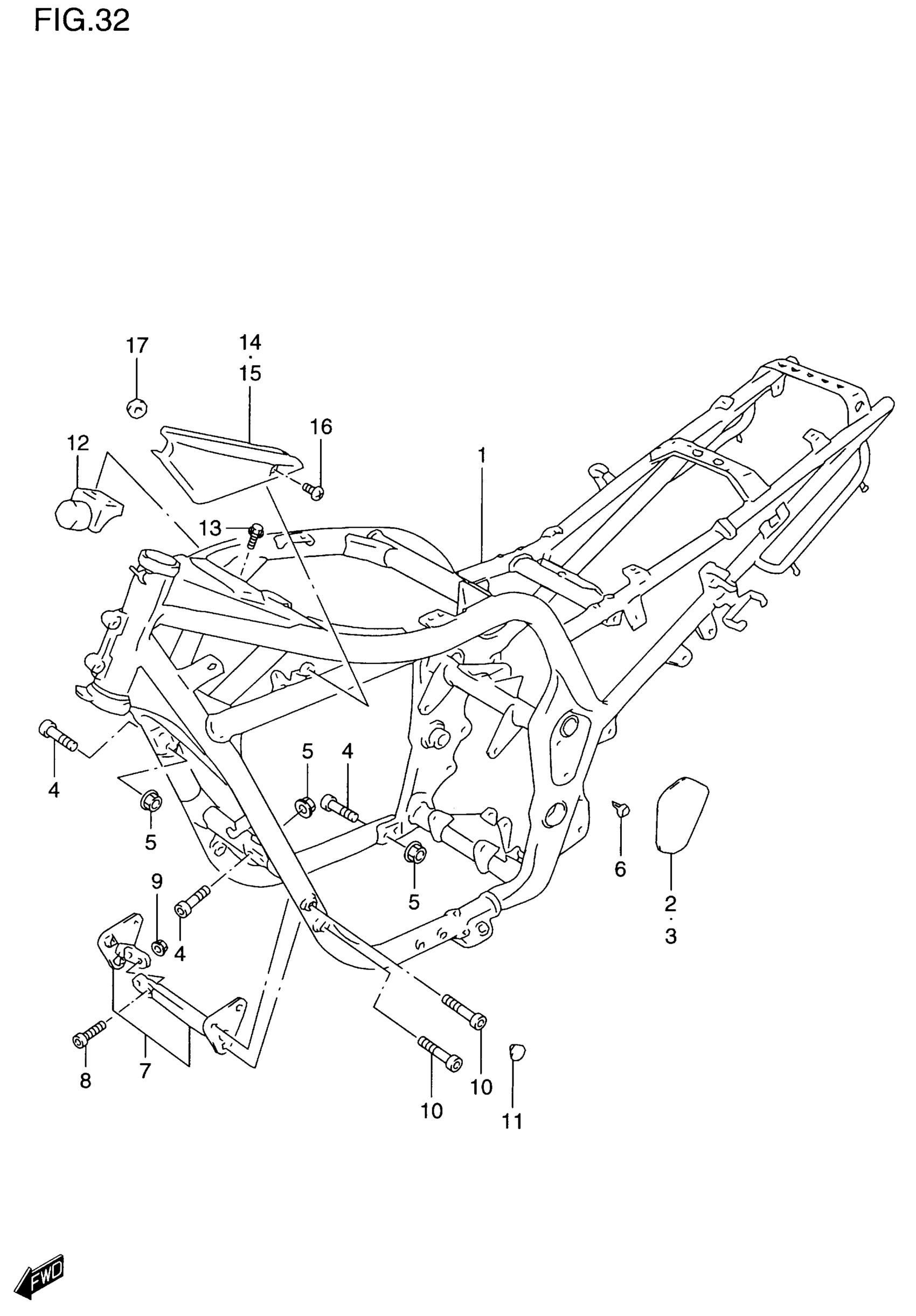

Suzuki GSF1200S (2000) FRAME (MODEL V/W) Diagram

#

Description
Price

1

FRAME (MAROON) | GSF1200SV This part replaces 41100-27E60-22U.

41100-27E61-22U

Unavailable

1

NO DESCRIPTION AVAILABLE | GSF1200SV This part replaces 41100-27E60-Y0N.

41100-27E61-Y0N

Unavailable

1

FRAME (MAROON) | GSF1200SV E33 This part replaces 41100-27E70-22U.

41100-27E71-22U

Unavailable

1

NO DESCRIPTION AVAILABLE | GSF1200SV E33 This part replaces 41100-27E70-Y0N.

41100-27E71-Y0N

Unavailable

1

NO DESCRIPTION AVAILABLE | GSF1200SAV This part replaces 41100-27E20-33J.

41100-27E21-33J

Unavailable

1

NO DESCRIPTION AVAILABLE | GSF1200SAV E33 This part replaces 41100-27E30-33J.

41100-27E31-33J

Unavailable

1

FRAME (MAROON) | GSF1200SW This part replaces 41100-27E60-22U.

41100-27E61-22U

Unavailable

1

FRAME (BLACK) | GSF1200SW This part replaces 41100-27E60-33J.

41100-27E61-33J

Unavailable

1

FRAME (MAROON) | GSF1200SW E33 This part replaces 41100-27E70-22U.

41100-27E71-22U

Unavailable

1

FRAME (BLACK) | GSF1200SW E33 This part replaces 41100-27E70-33J.

41100-27E71-33J

Unavailable

2

COVER, FRAME BODY RH

41639-26E00

$20.77

3

COVER, FRAME BODY LH

41649-26E00

$20.77

4

BOLT (10X33)

09106-10019

$3.50

5

NUT This part replaces 08319-31103.

08319-3110A

$2.73

6

CLIP

09409-07329

$3.15

7

PLATE, ENGINE MOUNT (MAROON)

41900-27E00-22U

Unavailable

7

PLATE, ENGINE MOUNT (BLUE) | MODEL V

41900-27E00-Y0N

Unavailable

7

PLATE, ENGINE MOUNT (BLACK)

41900-27E00-33J

Unavailable

7

PLATE, ENGINE MOUNT (GREEN) | MODEL W

41900-27E00-1UH

Unavailable

7

PLATE, ENGINE MOUNT (SILVER) | MODEL W; Includes Item(s) 8 - 9

41900-27E00-Y4H

Unavailable

8

BOLT This part replaces 07120-10303.

07120-1030B

$5.18

9

NUT This part replaces 08319-31103.

08319-3110A

$2.73

10

BOLT This part replaces 07130-08503.

07130-0850A

$4.17

11

CAP

09250-08016

$2.53

12

DAMPER, FRAME

42550-27E50

Unavailable

13

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

14

COVER, FRAME HEAD RH (BLACK)

47511-26E00-291

Unavailable

15

COVER, FRAME HEAD LH (BLACK)

47521-26E00-291

Unavailable

16

SCREW

09139-05021

$1.72

17

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93
