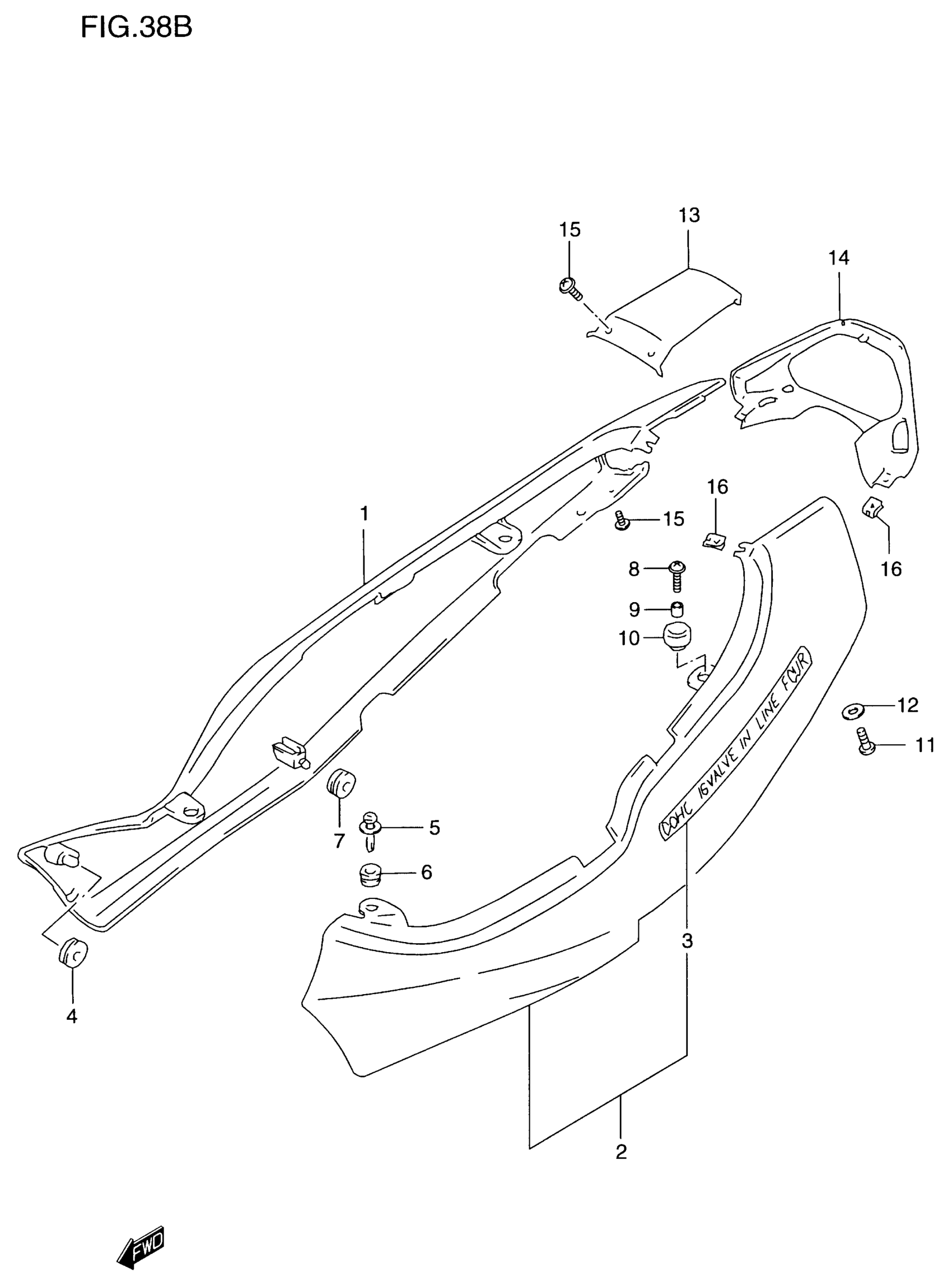

Suzuki GSF1200S (2000) FRAME COVER (GSF1200SW) Diagram

#

Description
Price

1

COVER ASSY, FRAME RH (MAROON)

47110-26E50-22U

Unavailable

1

COVER ASSY, FRAME RH (BLACK)

47110-26E50-33J

Unavailable

2

COVER ASSY, FRAME LH (MAROON)

47210-26E50-22U

Unavailable

2

COVER ASSY, FRAME LH (BLACK) | Includes Item(s) 3

47210-26E50-33J

Unavailable

3

EMBLEM, FRAME COVER (GOLD)

68131-26E30-24G

Unavailable

4

CUSHION,FRAME C This part replaces 47161-21E00.

47161-21E01

$10.17

5

CLIP

09409-10306

$3.04

6

CUSHION

09320-10501

$6.23

7

CUSHION, CENTER

09320-08018

$3.04

8

SCREW

09136-06105

$1.97

9

SPACER

09180-06286

$2.50

10

CUSHION, REAR UPPER

09320-10045

$3.76

11

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

12

WASHER

09161-06021

$2.83

13

COVER, FRAME CENTER (MAROON)

47311-26E00-22U

Unavailable

13

COVER, FRAME CENTER (BLACK)

47311-26E00-33J

Unavailable

14

COVER, FRAME REAR (BLACK)

47331-26E00-291

Unavailable

15

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

16

NUT

09148-05020

$2.18
