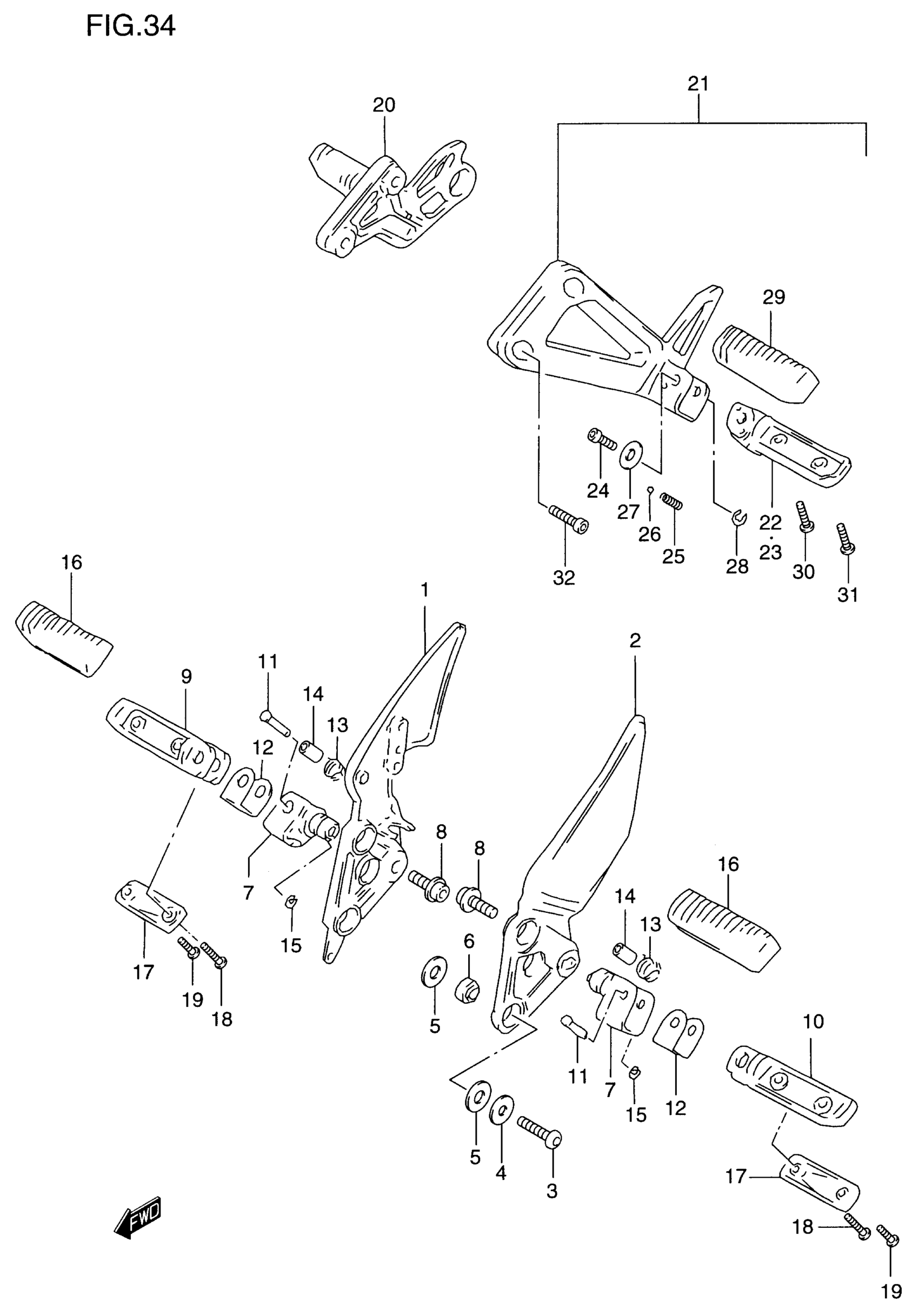

Suzuki GSF1200S (2000) FOOTREST (MODEL V/W/X) Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH | MODEL V This part replaces 43511-26E01.

43510-27820

Unavailable

1

BRACKET, FRONT FOOTREST RH | MODEL W/X This part replaces 43511-27E50.

43510-27820

Unavailable

2

BRACKET, FRONT FOOTREST LH | MODEL V This part replaces 43521-26E00.

43520-27820

Unavailable

2

BRACKET, FRONT FOOTREST LH | MODEL W/X This part replaces 43521-27E50.

43520-27820

Unavailable

3

BOLT

09106-08134

$3.68

4

WASHER This part replaces 09160-08131.

09160-08130

$2.03

5

WASHER

09161-12009

$4.32

6

BUSH (12X20X16)

09319-08036

$25.12

7

HOLDER, FOOTREST

43530-27E00

$96.22

8

BOLT

09106-10064

$4.90

9

BAR, FRONT FOOTREST RH

43511-40C00

$63.90

10

BAR, FRONT FOOTREST LH

43521-40C00

$63.90

11

PIN

09208-08010

$2.91

12

CUSHION,FRONT F This part replaces 43570-46E20.

43570-46E21

$18.25

13

SPRING

09448-18022

$3.79

14

SPACER (8.1X12X22)

09180-08149

$5.58

15

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

16

RUBBER, FOOTREST

43550-40C11

$21.90

17

BALANCER, FRONT FOOTREST LOWER

43536-31E20

$44.07

18

SCREW This part replaces 02142-05353.

02142-0535B

$2.17

19

SCREW This part replaces 02142-05253.

02142-0525B

$2.34

20

FOOTREST ASSY, PILLION RH

43600-27E50

Unavailable

21

FOOTREST ASSY, PILLION LH | Includes Item(s) 22 - 31

43700-27E50

Unavailable

22

BAR, PILLION FOOTREST RH

43610-40C00

Unavailable

23

BAR, PILLION FOOTREST LH

43620-40C00

Unavailable

24

BOLT, PILLION FOOTREST

43642-40C00

$8.98

25

SPRING

09440-05003

$1.49

26

BALL

06111-07004

$1.49

27

WASHER (10.5X24X1.6)

09160-10126

$2.12

28

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

29

RUBBER, FOOTREST

43550-40C11

$21.90

30

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

31

SCREW This part replaces 02142-05163.

02142-0516A

$1.49

32

BOLT (8X25)

09106-08097

$2.72
