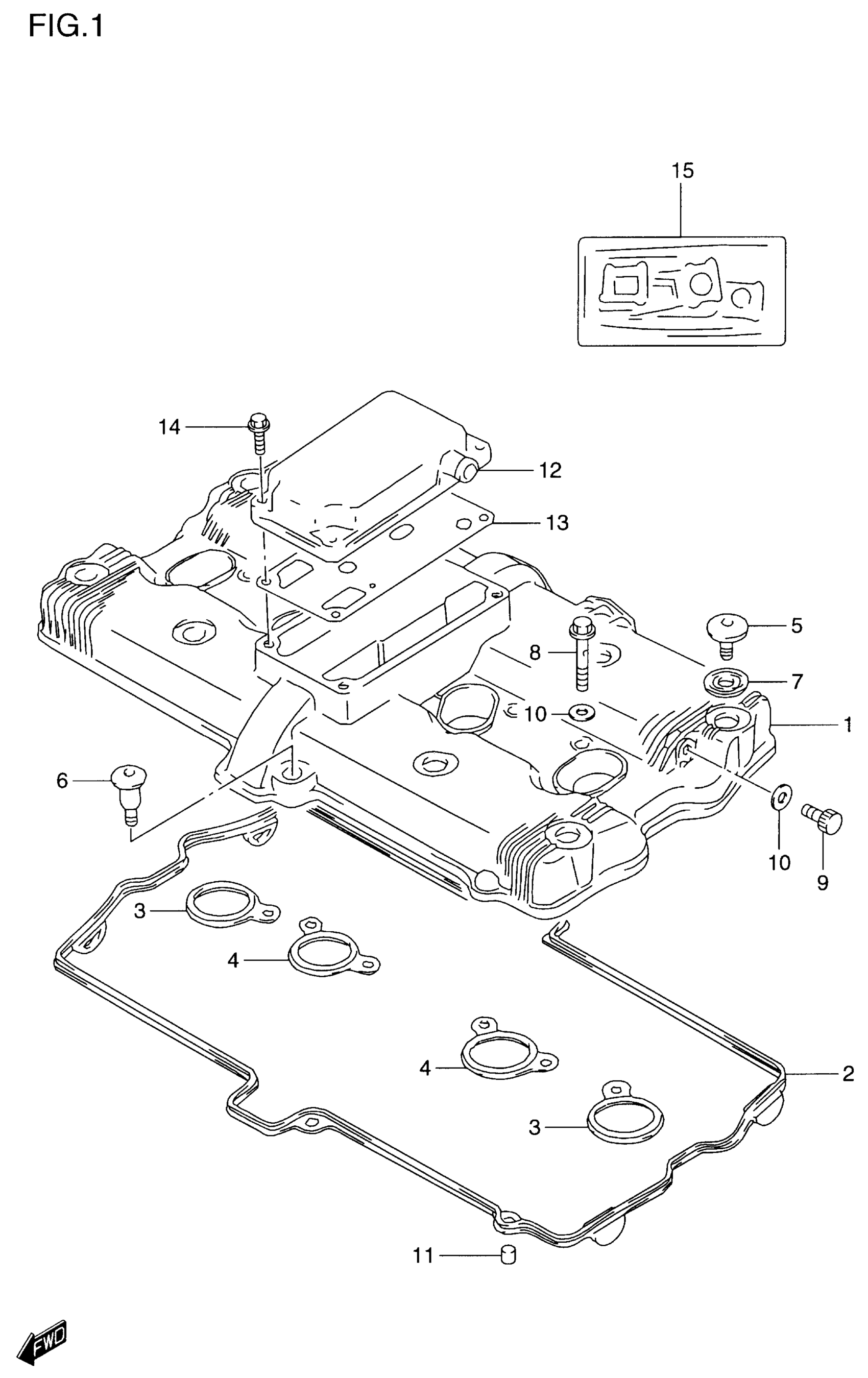

Suzuki GSF1200S (2000) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11171-27E00

Unavailable

2

GASKET,CYLINDER This part replaces 11173-06B02.

11173-06B03

$27.03

3

GASKET,HEAD COV This part replaces 11178-27A01.

11178-27A02

$6.79

4

GASKET,HEAD COV This part replaces 11179-27A02.

11179-27A03

$7.22

5

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

6

BOLT (L:19)

09106-07010

$4.64

7

WASHER

09161-11008

$4.49

8

BOLT AND GASKET | MODEL V/W ?11180-27820 BOLT AND GASKET SET This part replaces 09360-08009.

11180-27820

Unavailable

8

BOLT, UNION | MODEL X/Y

11181-27E00

$4.54

9

BOLT This part replaces 07130-08123.

07130-0812A

$3.72

10

GASKET (8.2X14X1) | MODEL V/W This part replaces 09168-08008.

09168-08016

$1.65

10

GASKET (8.2X16X1) | MODEL X/Y

09168-08029

$2.32

11

PIN

04221-08129

$1.99

12

COVER, BREATHER

11176-26D00

Unavailable

13

GASKET

11177-17E00

$10.24

14

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

15

GASKET SET | NOT INCLUDE 2ND AIR GASKET This part replaces 11401-27831.

11401-27837

Unavailable
