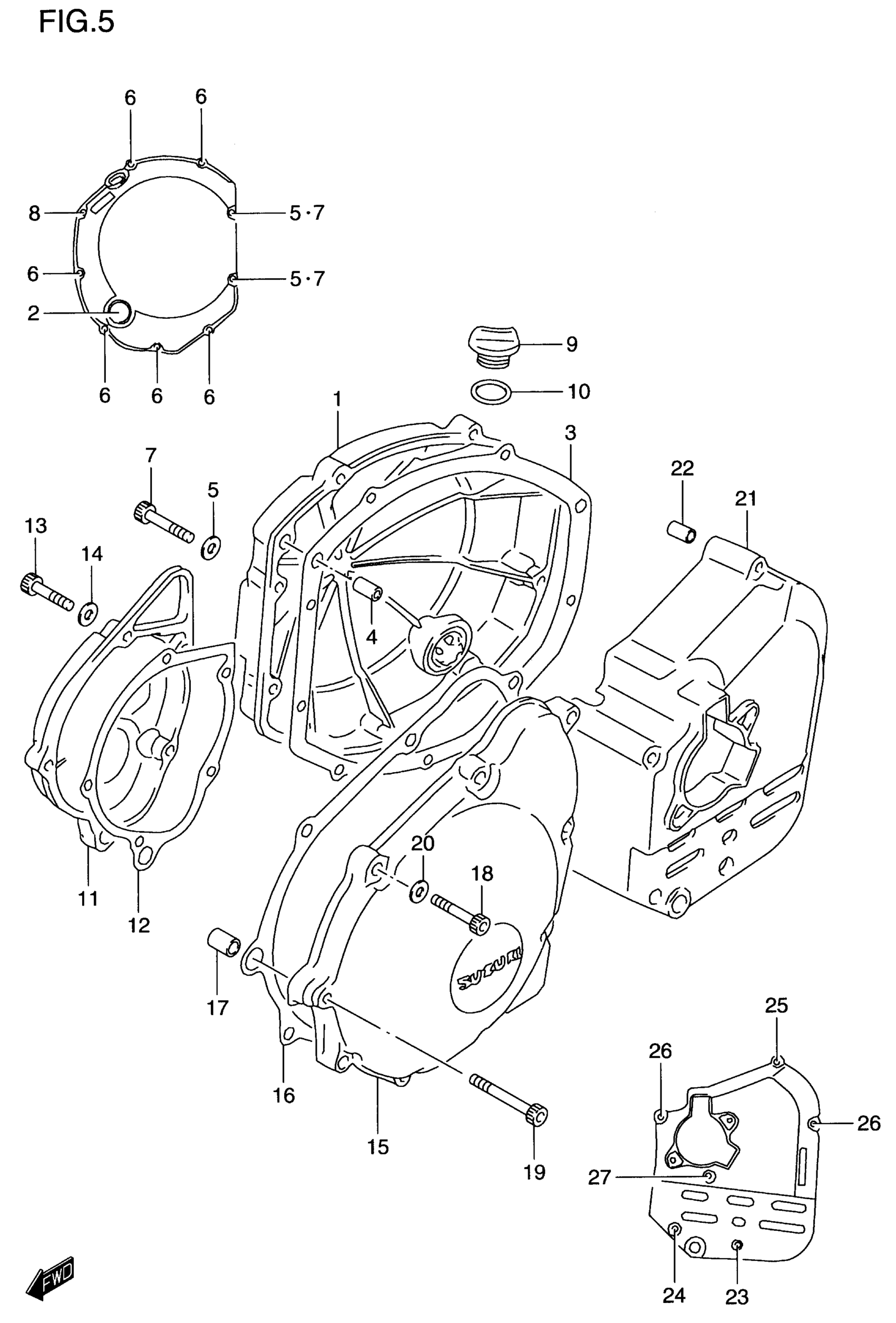

Suzuki GSF1200S (2000) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-26E20

Unavailable

2

LENS, OIL LEVEL CHECK

11971-33210

$18.20

3

GASKET

11482-27A20

$14.20

4

PIN

04211-09189

$1.65

5

GASKET (5.8X11X1.2) | ~E.NO.151843

09168-06024

$2.20

5

GASKET (5.8X13X1.2) | E.NO.151844~

09168-06023

$2.35

6

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

7

BOLT This part replaces 07130-06303.

07130-0630B

$3.37

8

BOLT This part replaces 07130-06353.

07130-0635B

$3.37

9

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$7.50

10

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

11

COVER, SIGNAL GENERATOR | MODEL T/V/W/X This part replaces 11381-26E20.

11381-26E21

$68.10

11

COVER, SIGNAL GENERATOR | MODEL Y

11381-26E21

$68.10

12

GASKET

11491-27A30

$8.40

13

BOLT

09106-06082

$2.62

14

GASKET (5.8X11X1.2) | ~E.NO.151843

09168-06024

$2.20

14

GASKET (5.8X13X1.2) | E.NO.151844~

09168-06023

$2.35

15

COVER, STARTER GEAR

11351-26E20

$203.12

16

GASKET,STARTER This part replaces 11483-48B20.

11483-48B21

$12.61

17

PIN

09206-11017

$6.30

18

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

19

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

$3.38

20

GASKET (5.8X11X1.2) | ~E.NO.151843

09168-06024

$2.20

20

GASKET (5.8X13X1.2) | E.NO.151844~

09168-06023

$2.35

21

COVER COMP,ENG | ~E.NO.157322 This part replaces 11360-27E00.

11360-27E02

Unavailable

21

COVER COMP,ENG | E.NO.157323~ This part replaces 11360-27E01.

11360-27E02

Unavailable

22

PIN

04211-09129

$1.65

23

BOLT This part replaces 07130-06453.

07130-0645B

$4.10

24

BOLT This part replaces 07130-06353.

07130-0635B

$3.37

25

BOLT This part replaces 07130-06553.

07130-0655B

$4.10

26

BOLT This part replaces 07130-06703.

07130-0670B

$3.89

27

BOLT This part replaces 07130-06753.

07130-0675B

$4.60
