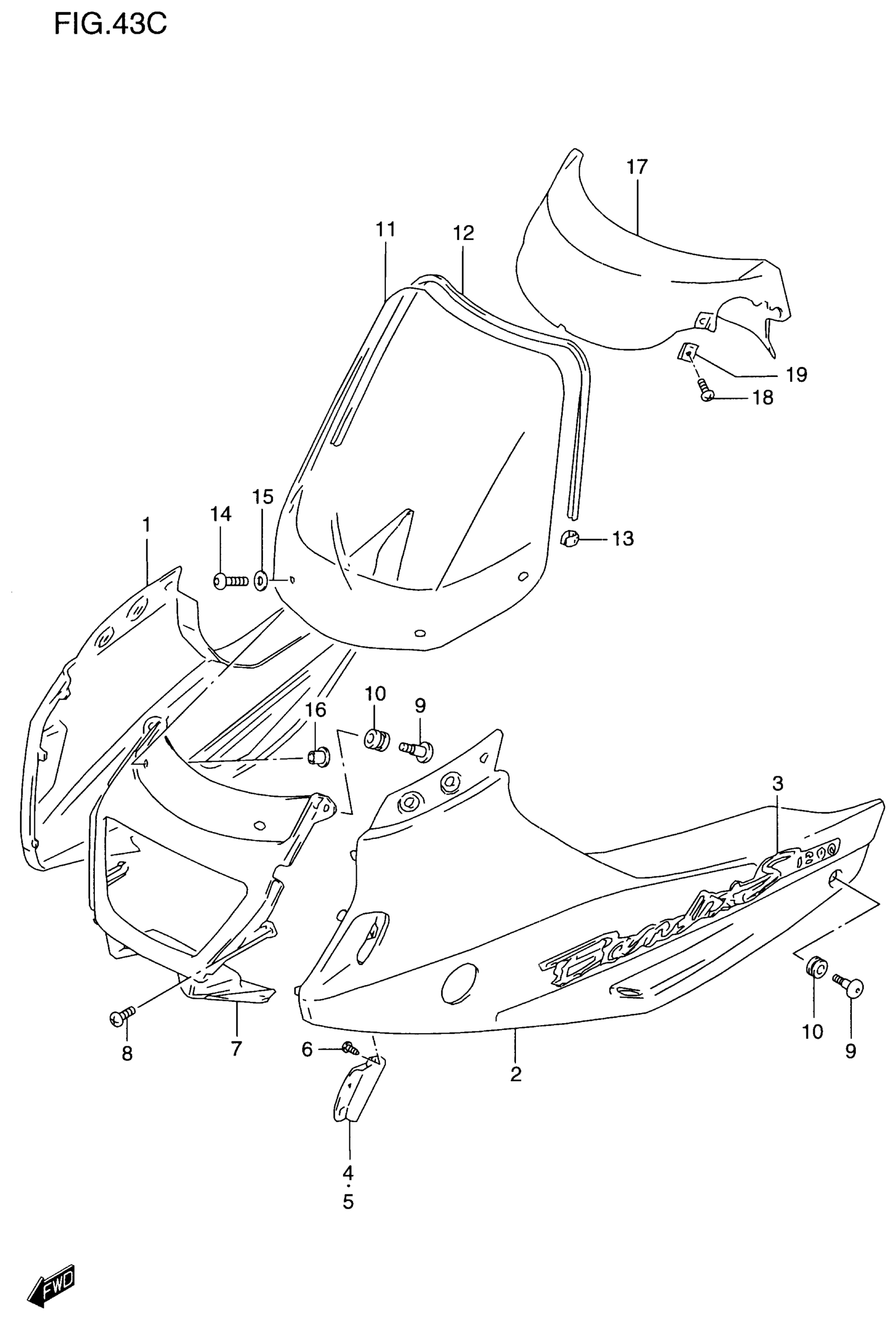

Suzuki GSF1200S (2000) COWLING BODY (MODEL Y) Diagram

#

Description
Price

1

COWL ASSY, SIDE RH (MAROON)

94401-27E10-22U

Unavailable

1

COWL ASSY, SIDE RH (SILVER)

94401-27E10-YC7

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 94402-27E10-22U.

94402-27E11-22U

Unavailable

2

COWL ASSY, SIDE LH (SILVER) | Includes Item(s) 3 - 6

94402-27E10-YC7

Unavailable

3

EMBLEM, SIDE | FOR 22U

68681-27E00-F6G

$42.18

3

EMBLEM, SIDE | FOR YC7

68681-27E00-K2A

Unavailable

4

COVER, COWL INNER RH

94413-26E00

Unavailable

5

COVER, COWL INNER LH

94423-26E00

Unavailable

6

SCREW This part replaces 03541-05103.

03541-0510A

$1.49

7

COWL ASSY, CENTER (MAROON)

94403-26E10-22U

Unavailable

7

COWL ASSY, CENTER (SILVER)

94403-26E10-YC7

Unavailable

8

SCREW This part replaces 02142-15163.

02142-1516A

$1.84

9

SCREW This part replaces 09139-06087.

09139-06126

$4.04

10

CUSHION

09320-09016

$1.97

11

WINDSCREEN SET | Includes Item(s) 12 - 13

94610-26E01

Unavailable

12

MOLDING

94631-33C01

$18.02

13

CLIP

94637-21E00

$8.18

14

SCREW

09139-05025

$2.05

15

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

16

NUT

09159-05019

$7.14

17

PANEL, INNER

94640-27E00

Unavailable

18

SCREW This part replaces 03242-05123.

03241-0512A

$1.49

19

NUT

09148-05038

$1.97
