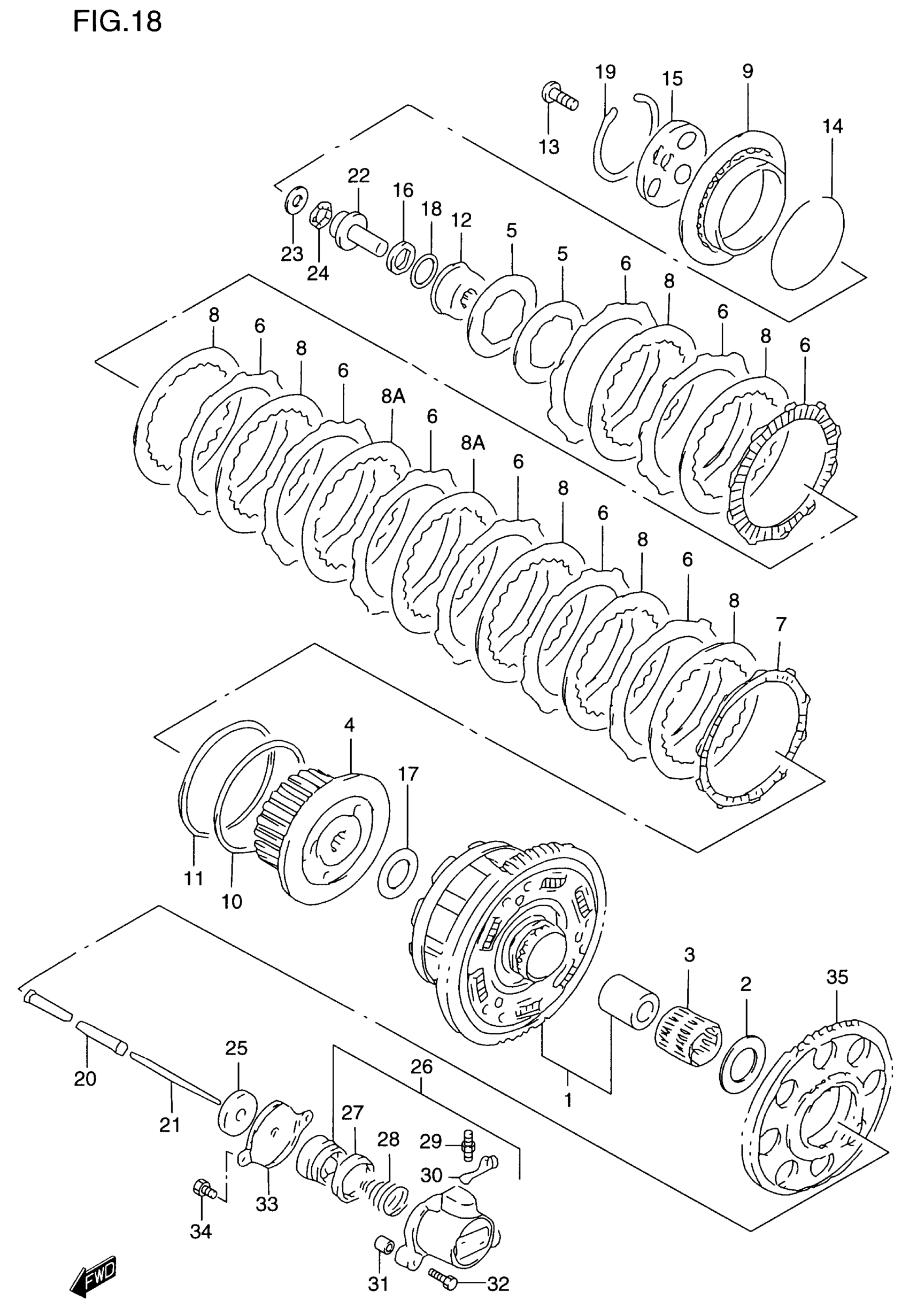

Suzuki GSF1200S (2000) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | MODEL V This part replaces 21200-31860.

21200-31861

$516.58

1

GEAR ASSY, PRIMARY DRIVEN | MODEL W/X/Y

21200-31861

$516.58

2

WASHER (25.1X54X2.5)

09160-25037

$8.85

3

BEARING (35X40X35.8)

09263-35017

$40.54

4

HUB, CLUTCH SLEEVE This part replaces 21410-31E20.

21410-31E50

$143.92

5

SPRING, CLUTCH

21413-31E20

$10.28

6

PLATE, CLUTCH DRIVE NO.1

21441-31E00

$28.38

7

PLATE, CLUTCH DRIVE NO.2

21442-31E00

$39.23

8

PLATE, CLUTCH DRIVEN NO.1 | T:1.6

21451-31E00

$10.53

8A

PLATE, CLUTCH DRIVEN NO.2 | T:2.0

21451-31E10

$11.28

9

DISK, CLUTCH PRESSURE

21462-31E20

$62.52

10

SEAT, CLUTCH PLATE

21471-31E20

$14.20

11

WASHER, CLUTCH PLATE

21472-31E20

Unavailable

12

HOLDER, CLUTCH SPRING

21611-31E20

Unavailable

13

SCREW, CLUTCH SPRING

21614-31E20

$2.67

14

SEAT, CLUTCH SPRING

21623-31E20

$5.63

15

LIFTER, CLUTCH RELEASE

21463-40C01

Unavailable

16

NUT, CLUTCH SLEEVE HUB

09159-24010

$13.22

17

.WASHER (25X50X2.5) | 25X50X2.5

09160-25056

$11.61

18

WASHER, CLUTCH WAVE | 24.2X35X2

09164-24006

$3.76

19

CIRCLIP, CLUTCH PRESSURE

09381-84003

$12.22

20

ROD, CLUTCH PUSH RH

23110-38B00

$23.19

21

ROD, CLUTCH PUSH LH

23111-31301

$13.36

22

PIECE, CLUTCH PUSH

23121-31E00

$23.92

23

WASHER, CLUTCH PUSH | 15.5X28X1

09160-15045

$3.89

24

BEARING, CLUTCH PUSH | 15X28X2

09263-15003

$8.29

25

SEAL, CLUTCH PUSH ROD | 6X34X5.5

09285-06015

$7.98

26

CYLINDER,CLUTCH | Includes Item(s) 27 - 30 This part replaces 23160-06B02.

23160-06B03

$101.68

27

CUP

23163-06B00

$7.22

28

SPRING

23164-05A00

$4.34

29

BLEEDER

59121-01A00

$8.73

30

CAP, BLEEDER

59122-01A00

$4.34

31

KNOCK PIN

04211-09129

$1.65

32

BOLT This part replaces 07130-06253.

07130-0625B

$3.04

33

COVER, CLUTCH RELEASE

23117-46E00

$6.79

34

SCREW This part replaces 02112-06103.

02112-0610B

$1.84

35

GEAR, GENERATOR DRIVE | MODEL V/W This part replaces 22721-27A02.

22721-27A03

$215.51

35

GEAR, GENERATOR DRIVE | MODEL X/Y

22721-27A03

$215.51
