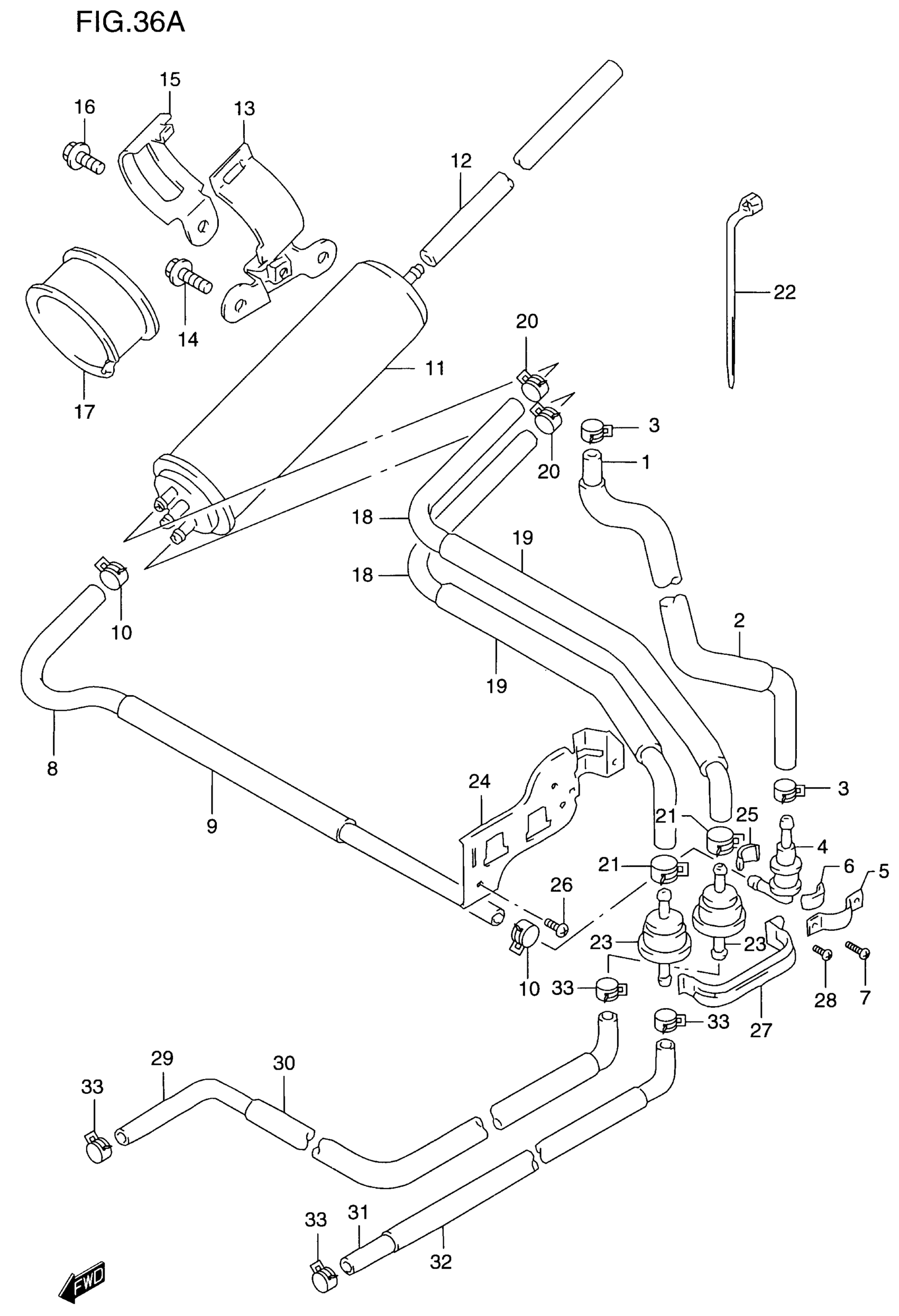

Suzuki GSF1200S (2000) CANISTER (GSF1200SAV E33) Diagram

#

Description
Price

1

HOSE, TANK & VALVE

44436-27E10

Unavailable

2

PROTECTOR | L:600?260

09351-14152-600

$10.62

3

CLIP

09401-11413

$2.26

4

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

5

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 6

44892-24A00

$4.52

6

CUSHION (10X30X2)

44894-24A00

$1.72

7

SCREW This part replaces 02142-04103.

02142-0410A

$1.49

8

HOSE, VALVE & CANISTER

44435-27E10

Unavailable

9

PROTECTOR | L:600?400

09351-14152-600

$10.62

10

CLIP

09401-11413

$2.26

11

CANISTER ASSY CHARCOAL

17210-26E00

$324.10

12

HOSE,6.5X11.5X6 | L:600?500 This part replaces 09355-70125-600.

44421-12FR0

$12.33

13

BRACKET, CANISTER

44881-26E00

Unavailable

14

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

15

HOLDER, CANISTER

44882-26E00

Unavailable

16

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

17

CUSHION CANISTER

44883-26E00

Unavailable

18

HOSE, PURGE

44439-27E10

Unavailable

19

PROTECTOR | L:600?400

09351-14152-600

$10.62

20

CLIP This part replaces 09401-11407.

09401-11415

$2.23

21

CLIP

09401-11413

$2.26

22

CLAMP

09407-14403

$2.26

23

VALVE, PURGE

44250-48B00

Unavailable

24

BRACKET, VALVE | Includes Item(s) 25

44890-27E10

Unavailable

25

CUSHION (10X30X2)

44894-24A00

$1.72

26

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

27

HOLDER, PURGE VALVE

44884-31E00

Unavailable

28

SCREW This part replaces 02112-05083.

02112-0508A

$1.49

29

HOSE, CARB NO.1

44438-27E10

Unavailable

30

PROTECTOR, NO.1 | L:600?480

09351-14152-600

$10.62

31

HOSE, CARB NO.2

44437-27E10

Unavailable

32

PROTECTOR NO.2 | L:600?280

09351-14152-600

$10.62

33

CLIP

09401-11413

$2.26
