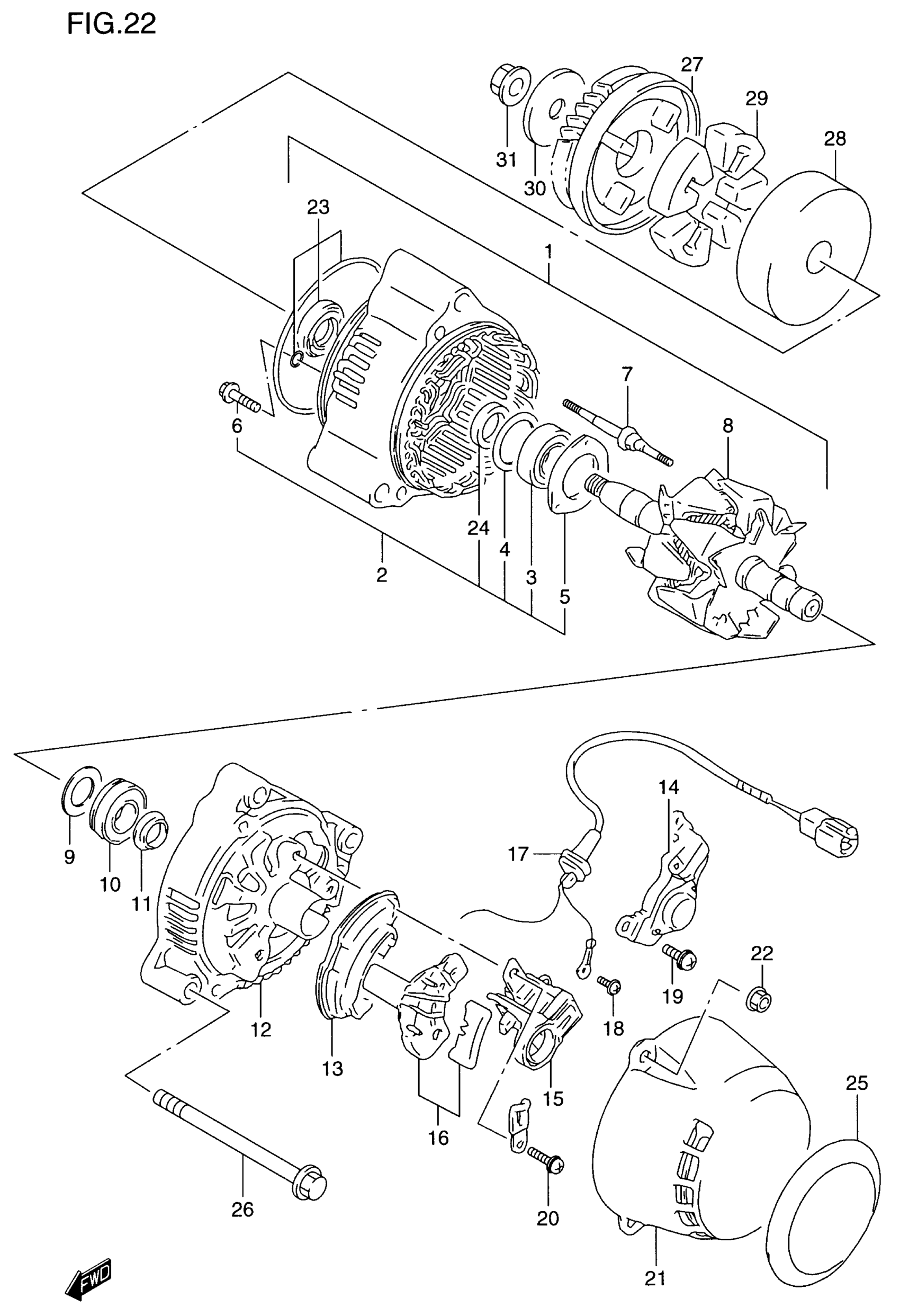

Suzuki GSF1200S (2000) ALTERNATOR Diagram

#

Description
Price

1

ALTERNATOR ASSY | MODEL V/W

31400-17C04

Unavailable

1

ALTERNATOR ASSY | MODEL X/Y; Includes Item(s) 2 - 24 This part replaces 31400-19C10.

31400-17C04

Unavailable

2

FRAME, DRIVE END

31580-48B00

Unavailable

3

BEARING

31612-06B00

Unavailable

4

COVER, BEARING

31613-48B00

Unavailable

5

RETAINER

31585-48B00

Unavailable

6

SCREW, BEARING RETAINER

31586-48B00

Unavailable

7

STUD BOLT

31587-85250

Unavailable

8

ALTERNATOR ASSY | MODEL V/W

31710-48B04

Unavailable

8

ALTERNATOR ASSY | MODEL X/Y

31710-19C10

Unavailable

9

COVER, BEARING

31613-82610

Unavailable

10

BEARING

31612-48B00

$47.07

11

COVER, NO.2

31613-27A10

Unavailable

12

FRAME, END

31611-48B00

Unavailable

13

HOLDER, RECTIFIER

31621-27A00

Unavailable

14

REGULATOR

32500-27A00

Unavailable

15

HOLDER, BRUSH

31656-48B00

Unavailable

16

COVER, RECTIFIER

31687-17E00

$6.88

17

WIRE, LEAD

31480-48B00

Unavailable

18

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

19

SCREW

31688-27A00

Unavailable

20

SCREW

31688-27A00

Unavailable

21

COVER

31614-48B00

Unavailable

22

NUT This part replaces 08316-10053.

08316-1005A

$2.19

23

SERVICE KIT, ALTERNATOR

31780-27X50

$53.82

24

SPACER

31776-06B00

Unavailable

25

PLATE, ALTERNATOR ABSORBER

31615-27E00

Unavailable

26

BOLT This part replaces 01550-08903.

01550-0890B

$5.37

27

GEAR, GENERATOR DRIVEN

22730-27A05

Unavailable

28

HOUSING, GENERATOR GEAR DAMPER

22733-27A05

Unavailable

29

DAMPER, GENERATOR DIVEN

21231-06B00

$4.64

30

WASHER

08211-10283

$3.78

31

NUT This part replaces 08316-20103.

08316-2010B

$3.43
