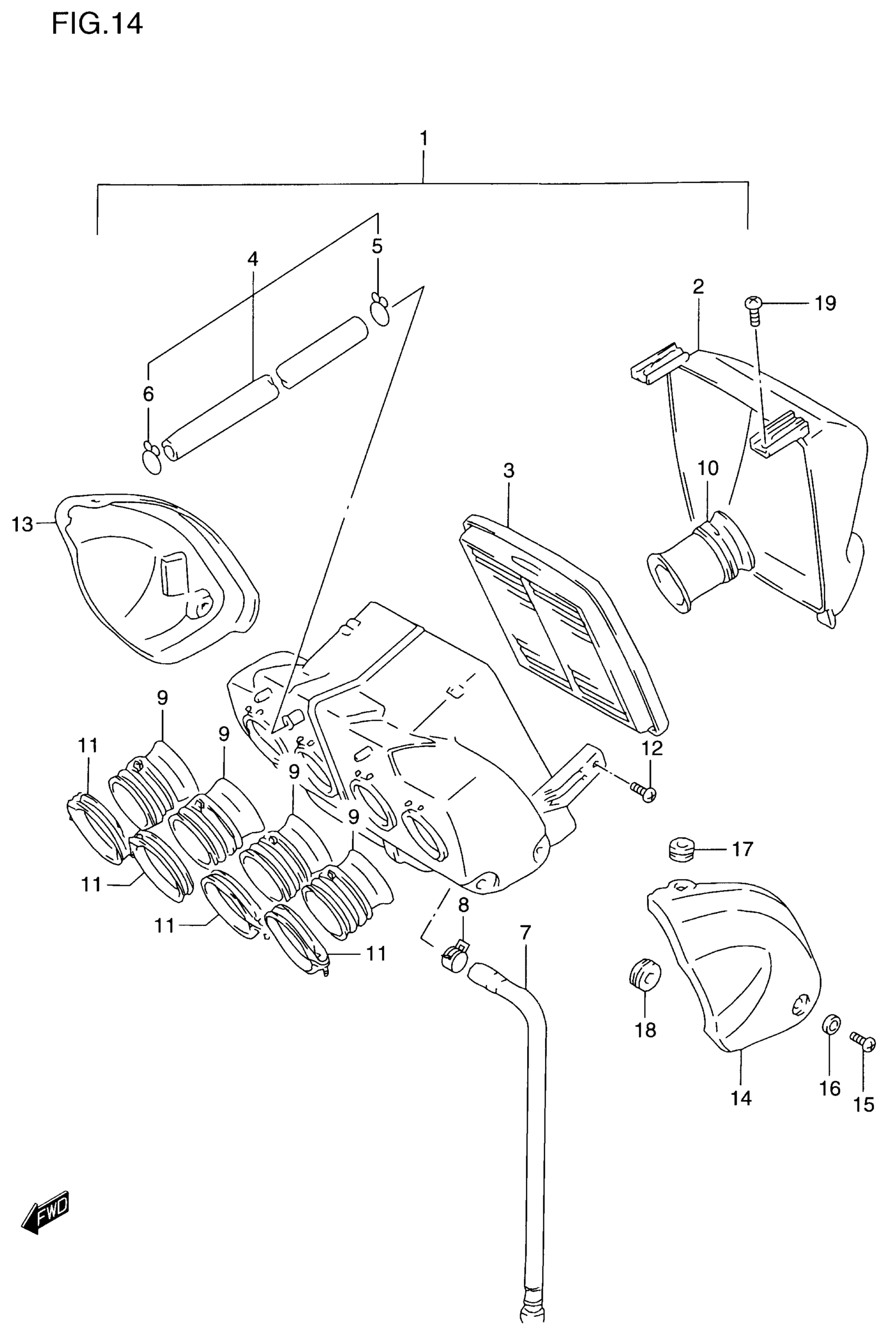

Suzuki GSF1200S (2000) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 12

13700-27E00

Unavailable

2

CAP

13740-17E02

$60.02

3

FILTER

13780-17E00

$50.38

4

TUBE,BREATHER This part replaces 13850-27E00.

13850-27E01

$20.12

5

CLIP

09401-14301

$2.35

6

CLIP

09401-16401

$3.14

7

TUBE,DRAIN This part replaces 13870-21458.

13870-21459

$23.68

8

CLAMP | MODEL V This part replaces 09401-13413.

09401-13417

$2.26

8

CLIP | MODEL W/X/Y

09401-13417

$2.26

9

TUBE,OUTLET | MODEL V This part replaces 13881-01D00.

13881-01D02

$16.46

9

TUBE,OUTLET | MODEL W/X/Y This part replaces 13881-01D01.

13881-01D02

$16.46

10

TUBE,INLET This part replaces 13891-31E10.

13891-31E11

$20.12

11

CLAMP

09402-68208

$5.58

12

SCREW

02142-05127

$1.97

13

COVER COMP,AIR This part replaces 13910-27E00.

13910-27E01

Unavailable

14

COVER COMP,AIR This part replaces 13920-27E00.

13920-27E01

Unavailable

15

SCREW (5X14)

09139-05025

$2.05

16

WASHER

09169-05013

Unavailable

17

CUSHION

09320-06504

$4.96

18

CUSHION

09320-08018

$3.04

19

SCREW This part replaces 02142-06123.

02142-0612A

$1.49
