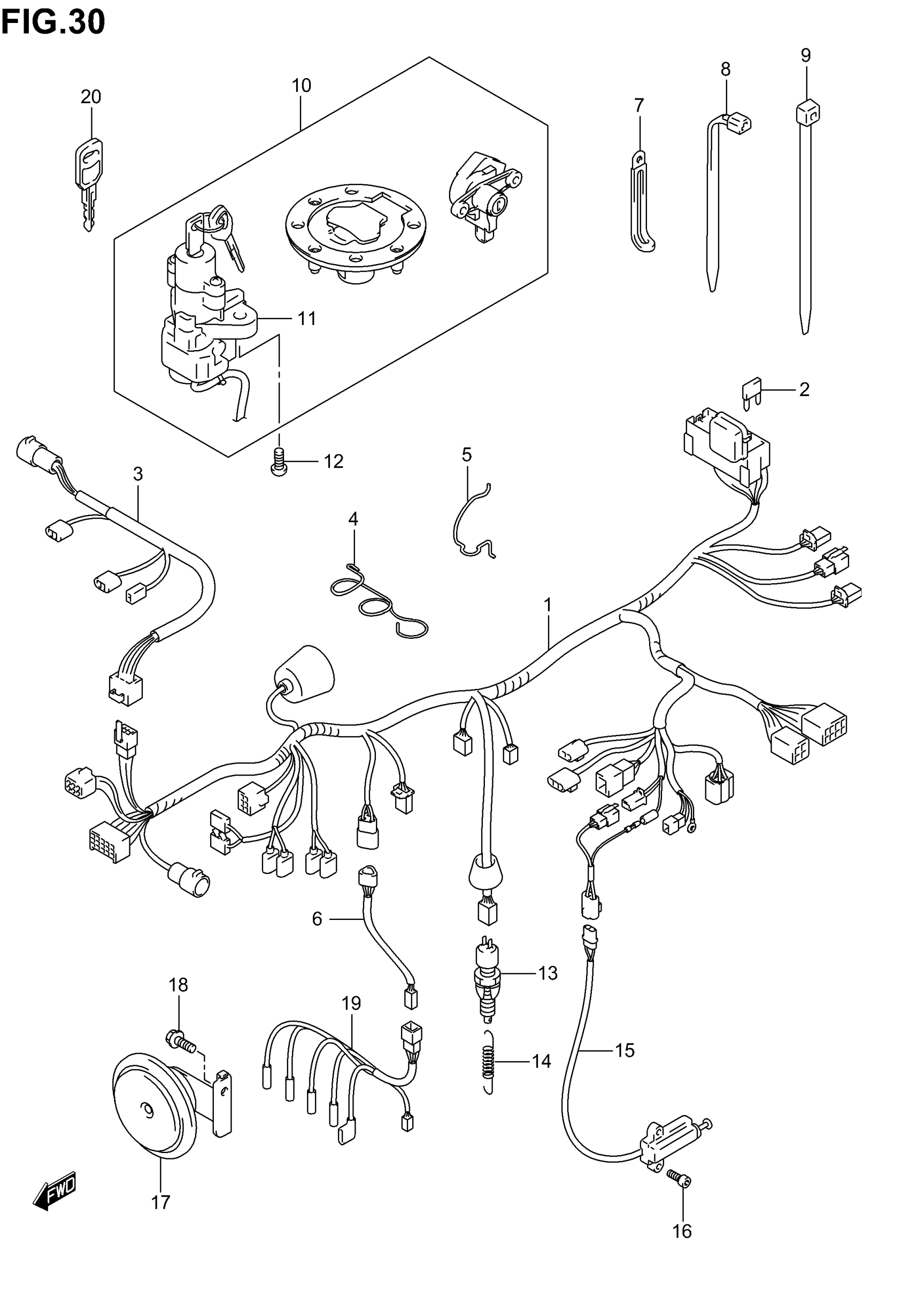

Suzuki GSF1200 (2005) WIRING HARNESS (GSF1200SK1/SK2/SK3) Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL K1

36610-31F60

Unavailable

1

HARNESS, WIRING | MODEL K2/K3; Includes Item(s) 2 - 2

36610-31FE0

Unavailable

2

FUSE (10A)

09481-10501

$2.14

2

FUSE (15A)

09481-15501

$2.14

3

HARNESS, WIRING NO.2

36620-31F50

Unavailable

4

GUIDE, WIRING HARNESS

36619-31F00

Unavailable

5

GUIDE, WIRING HARNESS

36619-31F20

Unavailable

6

WIRE, TPS LEAD

36853-31F00

Unavailable

7

CLAMP This part replaces 09404-06432.

09404-06039

$1.79

7

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.81

7

CLAMP(L:80) This part replaces 09404-06434.

09404-06036

$1.81

8

CLAMP (L:75)

09407-11402

$1.88

8

CLAMP (L:125)

09407-14403

$2.31

8

CLAMP (L:165)

09407-18402

$2.29

9

CLAMP (L:145)

09407-14407

$2.84

10

LOCK SET

37103-33890

$625.83

10

LOCK SET | E33; Includes Item(s) 11

37104-33810

Unavailable

11

LOCK ASSY,STEER This part replaces 37100-33E20.

37100-33E21

$224.17

12

SCREW

09139-08016

$3.13

13

SWITCH ASSY, STOP LAMP

37740-24A00

$17.41

14

SPRING, STOP LAMP

09443-06054

$4.18

15

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

$75.68

16

BOLT, FRONT This part replaces 07120-06203.

07120-0620B

$2.82

17

HORN ASSY, LOW PITCHED

38500-31F00

Unavailable

18

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

19

WIRE, CARB HEATER | OPT

36856-21E00

Unavailable

20

KEY, BLANK | OPT

37146-33E00

$20.29
