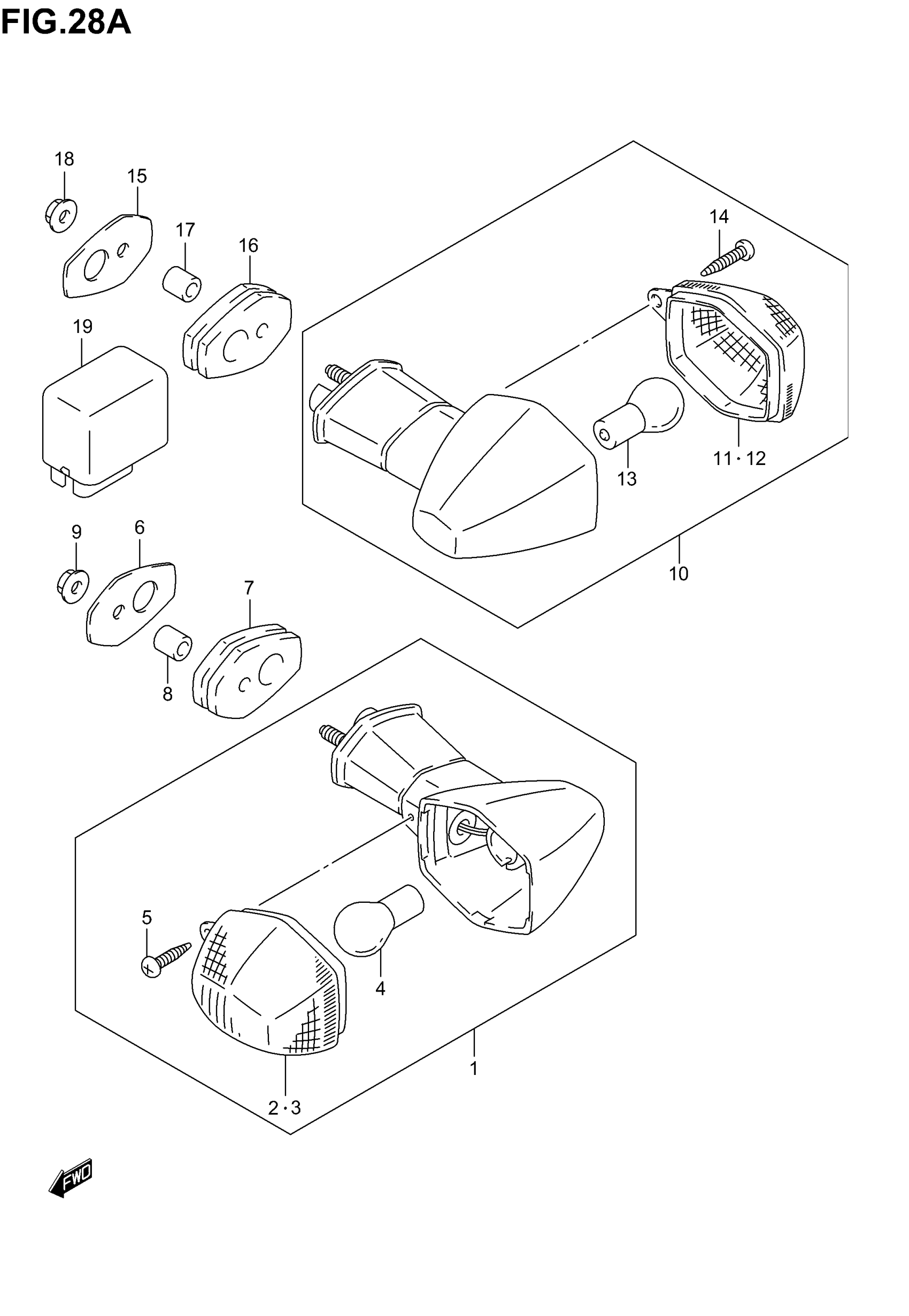

Suzuki GSF1200 (2005) TURN SIGNAL LAMP (GSF1200K1/K2/K3) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN RH

35601-31FA0

Unavailable

1

LAMP ASSY, FRONT TURN LH | Includes Item(s) 2 - 5

35602-31FA0

Unavailable

2

LENS, RH

35612-31F30

$13.90

3

LENS, LH

35632-31F30

$14.37

4

BULB (12V,21W)

09471-12045

$3.27

5

SCREW This part replaces 03242-04163.

03242-0416B

$2.93

6

PLATE, FRONT TURN

35629-31F00

$4.43

7

CUSHION,FR TURN This part replaces 35690-31F50.

35690-31F51

$23.08

8

SPACER (5.5X9.5X10)

09180-05301

$2.42

9

NUT This part replaces 08316-10053.

08316-1005A

$2.19

10

LAMP ASSY, REAR TURN RH

35603-31F30

$82.20

10

LAMP ASSY, REAR TURN LH | Includes Item(s) 11 - 14

35604-31F30

$81.30

11

LENS, RH

35632-31F30

$14.37

12

LENS, LH

35612-31F30

$13.90

13

BULB (12V,21W)

09471-12045

$3.27

14

SCREW This part replaces 03242-04163.

03242-0416B

$2.93

15

PLATE, REAR TURN

35629-31F00

$4.43

16

CUSHION,FRONT T This part replaces 35690-31F00.

35690-31F01

$5.17

17

SPACER (5.5X9.5X10)

09180-05301

$2.42

18

NUT This part replaces 08316-10053.

08316-1005A

$2.19

19

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
