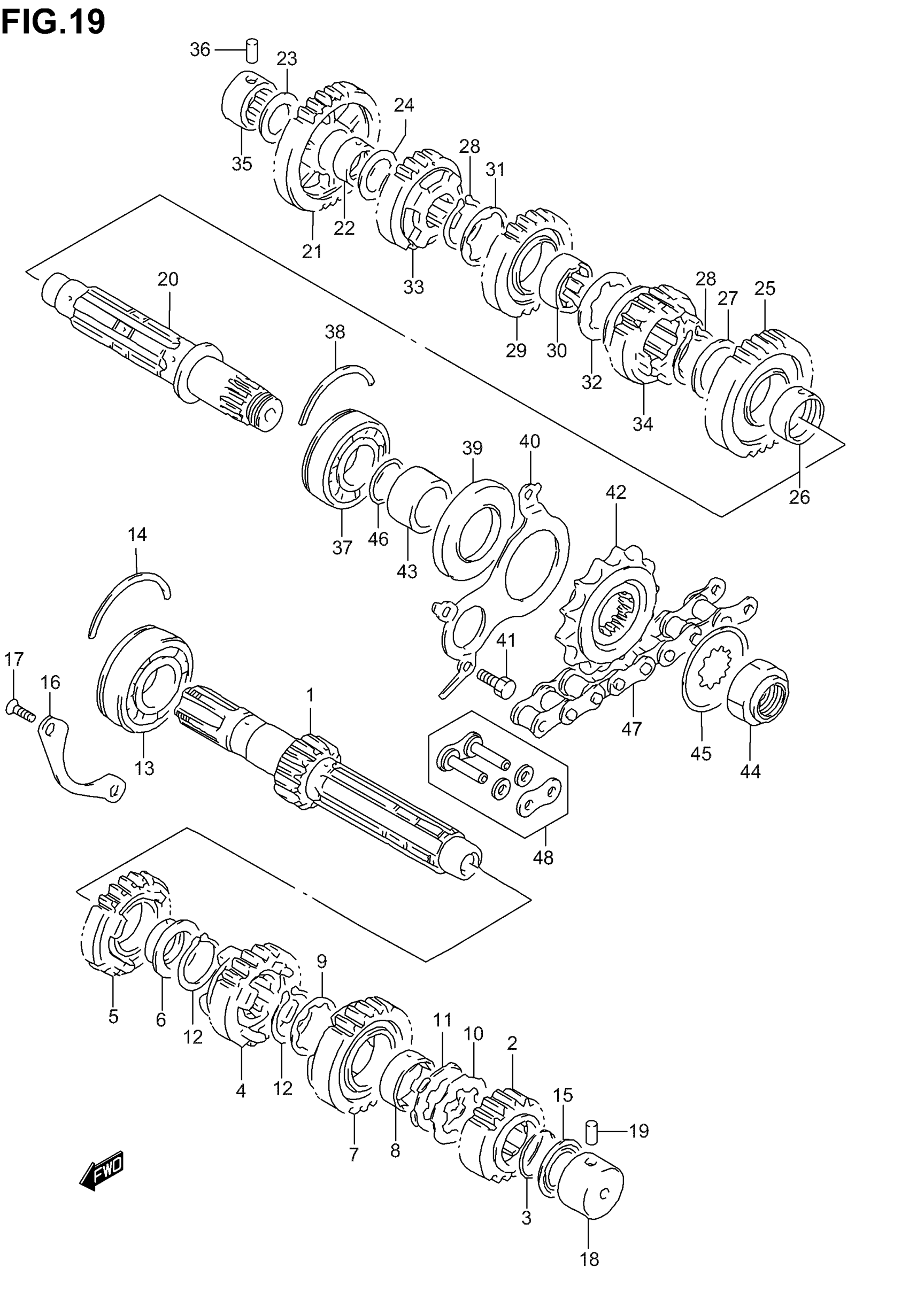

Suzuki GSF1200 (2005) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:13)

24121-40C21

Unavailable

2

GEAR, 2ND DRIVE (NT:19)

24221-40C00

Unavailable

3

SNAP RING

09380-25013

$4.17

4

GEAR,3RD DRIVE, This part replaces 24231-48B02.

24231-48B10

Unavailable

5

GEAR,4TH DRIVE, This part replaces 24241-48B10.

24241-48B50

Unavailable

6

BUSH, 2ND DRIVEN This part replaces 09301-25001.

24322-19F00

$23.78

7

GEAR,5TH DRIVE This part replaces 24251-48B02.

24251-48B30

Unavailable

8

BUSH, 5TH DRIVE GEAR

24252-48B00

Unavailable

9

WASHER,LOCK (25.1X33X1.0)

09167-25021

$3.85

10

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

11

WASHER (25.1X37X1)

09169-25001

$2.70

12

SNAP RING

09380-25003

$3.04

13

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

14

C RING

09390-62012

$7.31

15

OIL SEAL (20X31.2X2.7)

09285-20006

$6.51

16

RETAINER, CNTR SHAFT BEARING

24741-27A00

$10.07

17

SCREW (6X12)

09126-06011

$2.03

18

BEARING(20X34X1 This part replaces 09263-20049.

09263-20119

$55.20

19

KNOCK PIN

04221-07129

$1.86

20

SHAFT, DRIVE

24131-40C21

Unavailable

21

GEAR, 1ST DRIVEN (NT:31)

24311-48B20

Unavailable

22

BUSH, 1ST DRIVEN

24312-02F00

$28.15

23

THRUST WASHER (20X34X1.0)

09181-20251

$2.79

24

THRUST WASHER (22X34X1.0)

09181-22223

$3.12

25

GEAR, 2ND DRIVEN (NT:31)

24321-48B10

$150.78

26

BUSH, 2ND

09300-28002

$18.70

27

WASHER (28X36X1.0)

09181-28167

Unavailable

28

CIRCLIP This part replaces 08331-31286.

08331-31289

$2.19

29

GEAR,3RD DRIVEN This part replaces 24331-48B03.

24331-48B30

Unavailable

30

BUSH, 3RD DRIVEN GEAR

24332-48B01

$35.42

31

LOCK WASHER

09167-28001

$4.60

32

WASHER (34X46X2)

09167-28008

Unavailable

33

GEAR,4TH DRIVEN This part replaces 24341-06B01.

24341-06B30

Unavailable

34

GEAR, 5TH DRIVEN (NT:21)

24351-48B06

$127.43

35

BEARING (20X34X20)

09263-20040

$55.20

36

PIN

04221-07209

$2.30

37

BEARING (25X62X21.6)

09267-25011

$156.33

38

C RING

09390-62012

$7.31

39

OIL SEAL (34X62X6)

09283-34005

$12.61

40

RETAINER, DRIVE SHAFT OIL SEAL

24751-40C01

$8.53

41

BOLT This part replaces 01500-06123.

01500-0612A

$1.78

42

SPROCKET, ENGINE (NT:15)

27510-17C10

$88.98

43

SPACER (25X34X19)

09180-25100

$18.77

44

NUT

09159-20004

$15.67

45

WASHER (25.3X41.6X1)

09167-25019

$2.19

46

O RING (D:1,ID:24.5)

09280-25001

$1.56

47

CHAIN ASSY,DRIV This part replaces 27600-24F10-110.

27600-24F50-112

Unavailable

48

JOINT SET, CHAIN | OPT

27620-24F00

$21.10
