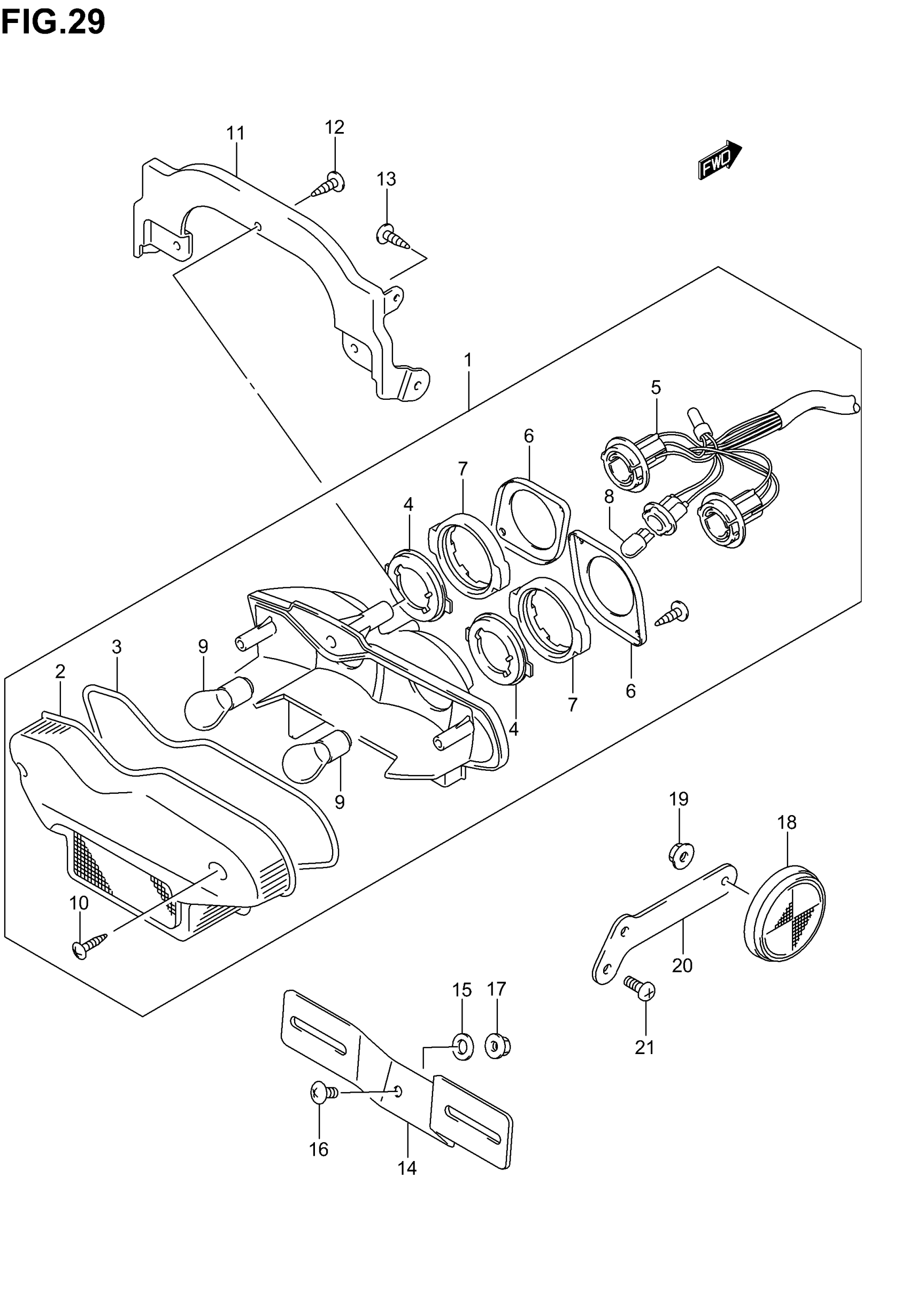

Suzuki GSF1200 (2005) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 10

35710-31F31

Unavailable

2

LENS

35712-31F30

$48.23

3

GASKET

35713-21F00

Unavailable

4

PLATE, NO.1

35716-48B21

$20.22

5

SOCKET & CORD

35718-24F00

$108.23

6

PLATE, NO.2

35736-48B21

$21.92

7

CUSHION

35765-48B21

$12.97

8

.BULB (12V5W) This part replaces 09471-12081.

09471-12216

$5.36

9

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

10

SCREW

03211-04207

$1.49

11

BRACKET, REAR COMP

35726-31F00

Unavailable

12

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

13

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

14

BRACKET, LICENSE BRACKET

35927-48B30

$14.20

15

.WASHER (6.5X20X1.6)

09160-06088

$1.65

16

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

17

NUT This part replaces 08316-10063.

08316-1006B

$2.50

18

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

19

NUT This part replaces 08316-10053.

08316-1005A

$2.19

20

BRACKET, RR SIDE RH

35975-31F00

Unavailable

20

BRACKET, RR SIDE LH

35976-31F00

Unavailable

21

SCREW This part replaces 02142-06123.

02142-0612A

$1.49
