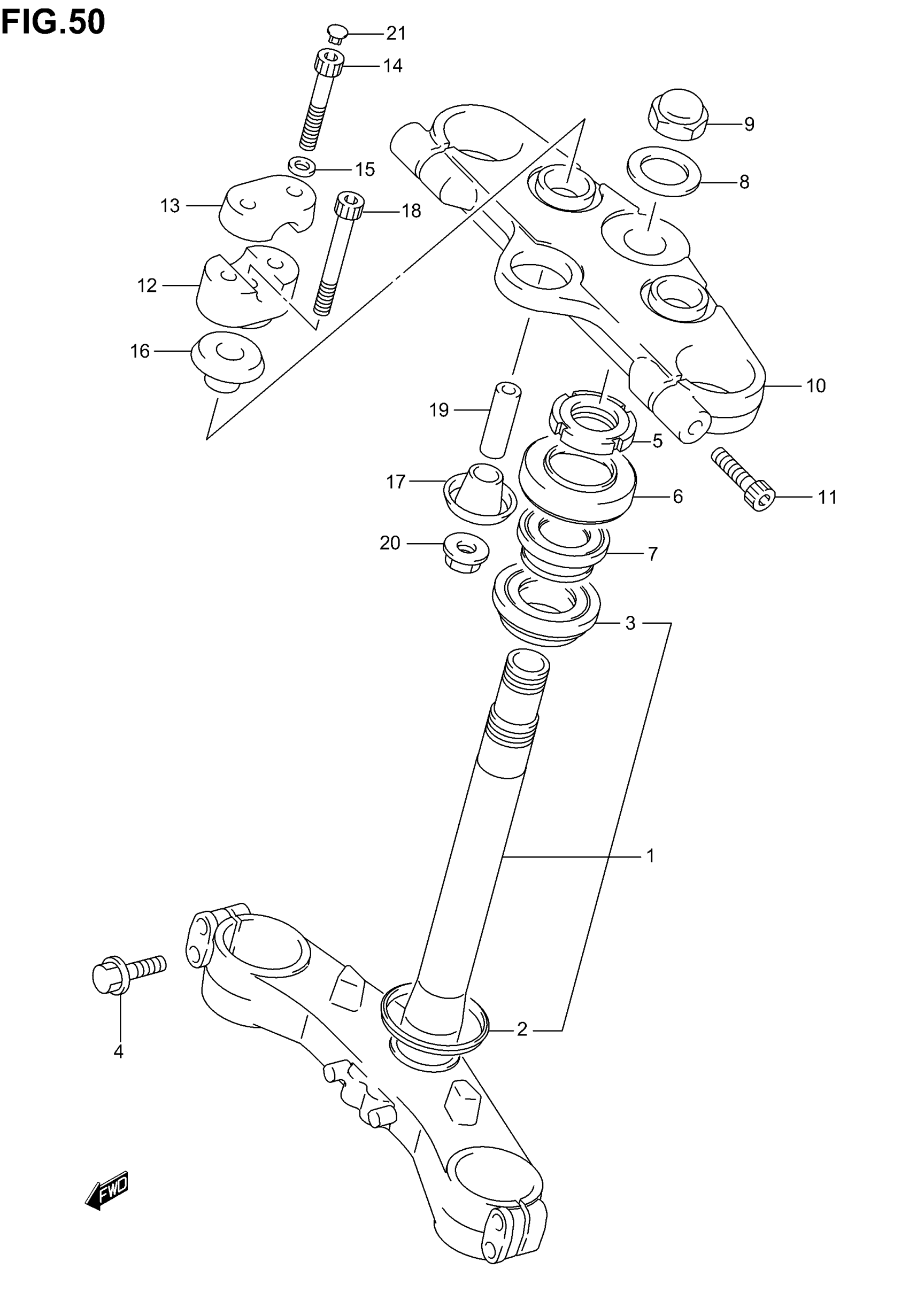

Suzuki GSF1200 (2005) STEERING STEM (GSF1200SK1/SK2/SK3/SK4/SK5/SZK5) Diagram

#

Description
Price

1

STEM, STEERING | GSF1200SK1/SK2

51410-32F00

Unavailable

1

STEM, STEERING | GSF1200SK3/SK4/SK5/SZK5; Includes Item(s) 2 - 3

51410-32F10

Unavailable

2

SEAL, LOWER

51644-12C00

$9.44

3

BEARING (30X55X17) | GSF1200SK1/SK2 BALL BEARING

09267-30010

$48.11

3

BEARING (30X55X17) | GSF1200SK3/SK4/SK5/SZK5 TAPER BEARING

09265-30020

$44.41

4

BOLT

01550-08407

$3.42

5

NUT, STEERING STEM

51631-31F00

$19.87

6

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

7

BEARING (25X47X15) | GSF1200SK1/SK2

09267-25009

$52.18

7

BEARING (25X47X15) | GSF1200SK3/SK4/SK5/SZK5

09265-25038

$45.57

8

WASHER

51356-24B01

$5.38

9

NUT, CAP

51353-24B00

$30.67

10

HEAD, STEERING STEM

51311-32F20

Unavailable

11

BOLT

07130-08357

$3.18

12

HOLDER, HANDLE UNDER

56221-27E00

Unavailable

13

HOLDER, HANDLE UPPER

56211-32F00

Unavailable

14

BOLT

07130-08307

$3.89

15

WASHER

09164-08015

$3.21

16

CUSHION,RUBBER This part replaces 56241-27E00.

56241-27E01

$33.90

17

CUSHION RUBBER UNDER This part replaces 56242-28C60.

56242-28C61

$28.58

18

BOLT, HANDLE HOLDER

56321-27E00

$11.50

19

SPACER

56243-42A00

$8.03

20

NUT

08319-31107

$2.73

21

CAP

09250-06011

$2.50
