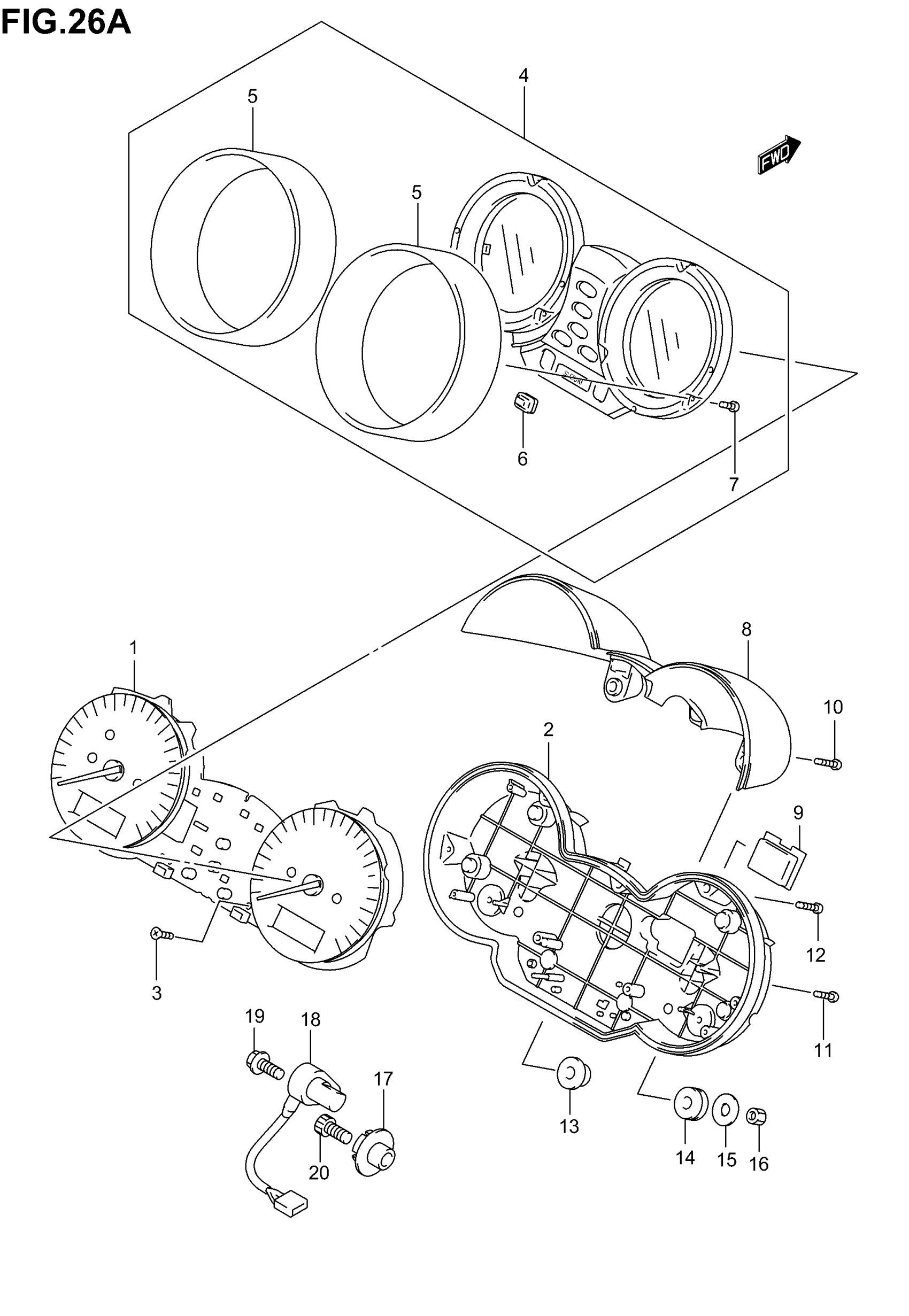

Suzuki GSF1200 (2005) SPEEDOMETER (GSF1200SK2/SK3/SK4/SK5) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-32F10

Unavailable

1

SPEEDOMETER (KILO) | E28

34120-32F00

Unavailable

2

CASE ASSY,LOWER This part replaces 34111-32F00.

34111-31F00

$78.80

3

SCREW (4X14)

34149-17E10

$6.23

4

UPPER CASE ASSY | Includes Item(s) 5 - 7

34150-32F30

Unavailable

5

RING

34193-31F10

Unavailable

6

RUBBER, SWITCH

34124-32F00

$5.75

7

SCREW (2.3X8)

34183-31F10

$3.58

8

COVER

34152-31F30

Unavailable

9

GROMMET

34198-19F20

Unavailable

10

SCREW, PAN HEAD (3X14)

34149-31F10

$4.10

11

SCREW (3X16)

34383-31F10

Unavailable

12

SCREW (3X16)

09132-03008

$1.53

13

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

14

CUSHION, METER NO.1

34189-32B00

$5.78

15

WASHER, METER (5.5X16X1.20)

09160-05037

$1.49

16

NUT This part replaces 08310-00053.

08310-0005A

$1.84

17

ROTOR,SPEED This part replaces 34981-35F00.

34981-38G01

$17.92

18

SENSOR, SPEED

34990-35F00

$127.72

19

BOLT This part replaces 07120-05123.

07120-0512B

$2.61

20

BOLT This part replaces 07130-08253.

07130-0825B

$3.37
