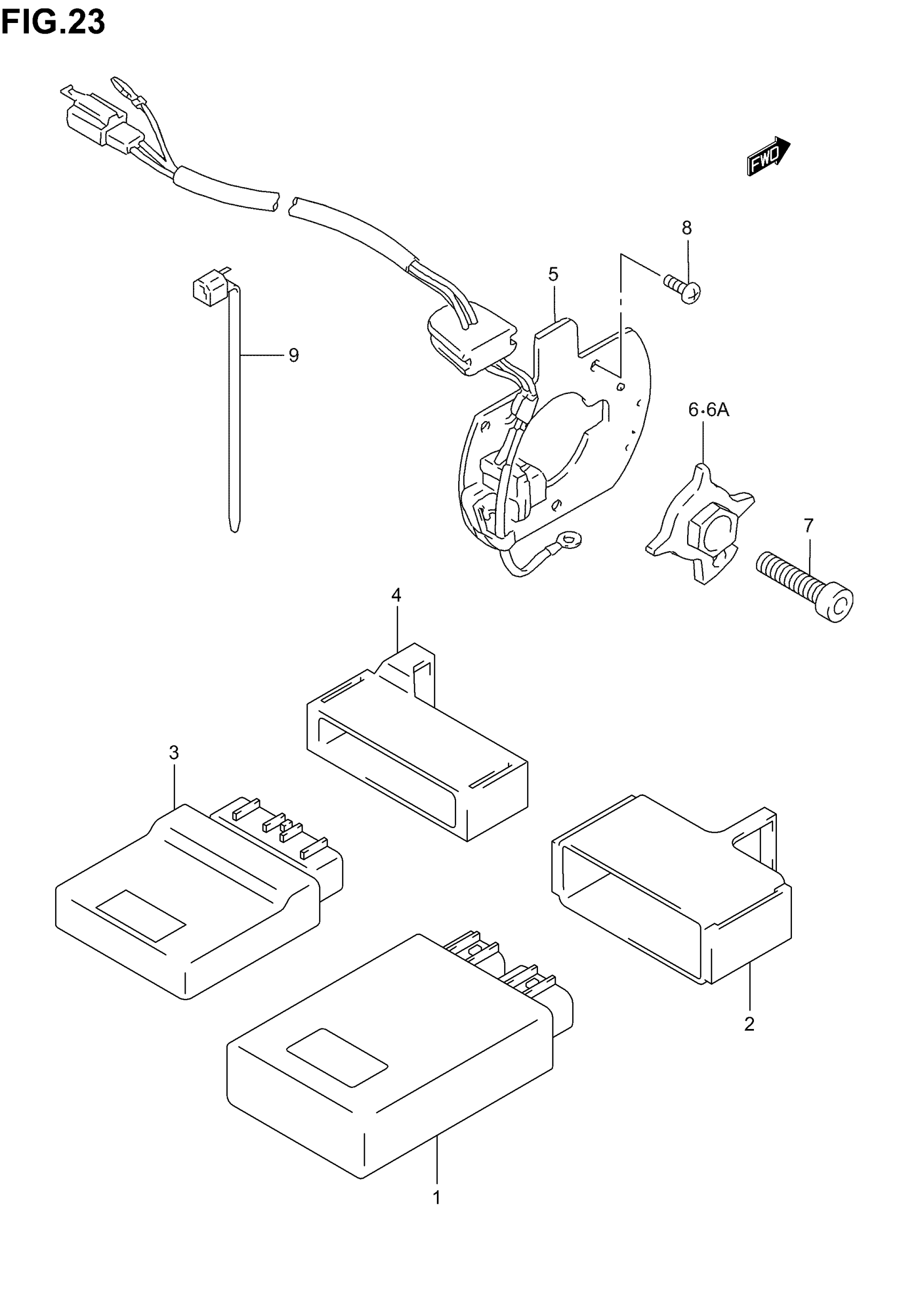

Suzuki GSF1200 (2005) SIGNAL GENERATOR Diagram

#

Description

Price

1

IGNITER ASSY | MODEL K1

32900-31F50

Unavailable

2

CUSHION, IGNITER | MODEL K1

32980-40C01

$15.83

3

IGNITER ASSY | MODEL K2/K3

32900-31FD0

Unavailable

3

IGNITER ASSY | MODEL K4/K5

32900-31FJ0

Unavailable

4

COVER, IGNITER | MODEL K2/K3/K4

32980-41F00

Unavailable

5

STATOR,SIGNAL G This part replaces 33110-31F00.

33110-31F01

$323.92

6

ROTOR, SIGNAL GENERATOR | MODEL K1

33120-19C20

$198.45

6A

ROTOR, SIGNAL GENERATOR | MODEL K2/K3/K4/K5

33120-48B20

Unavailable

7

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

$1.74

8

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.49

9

CLAMP (L:125)

09407-14403

$2.26
