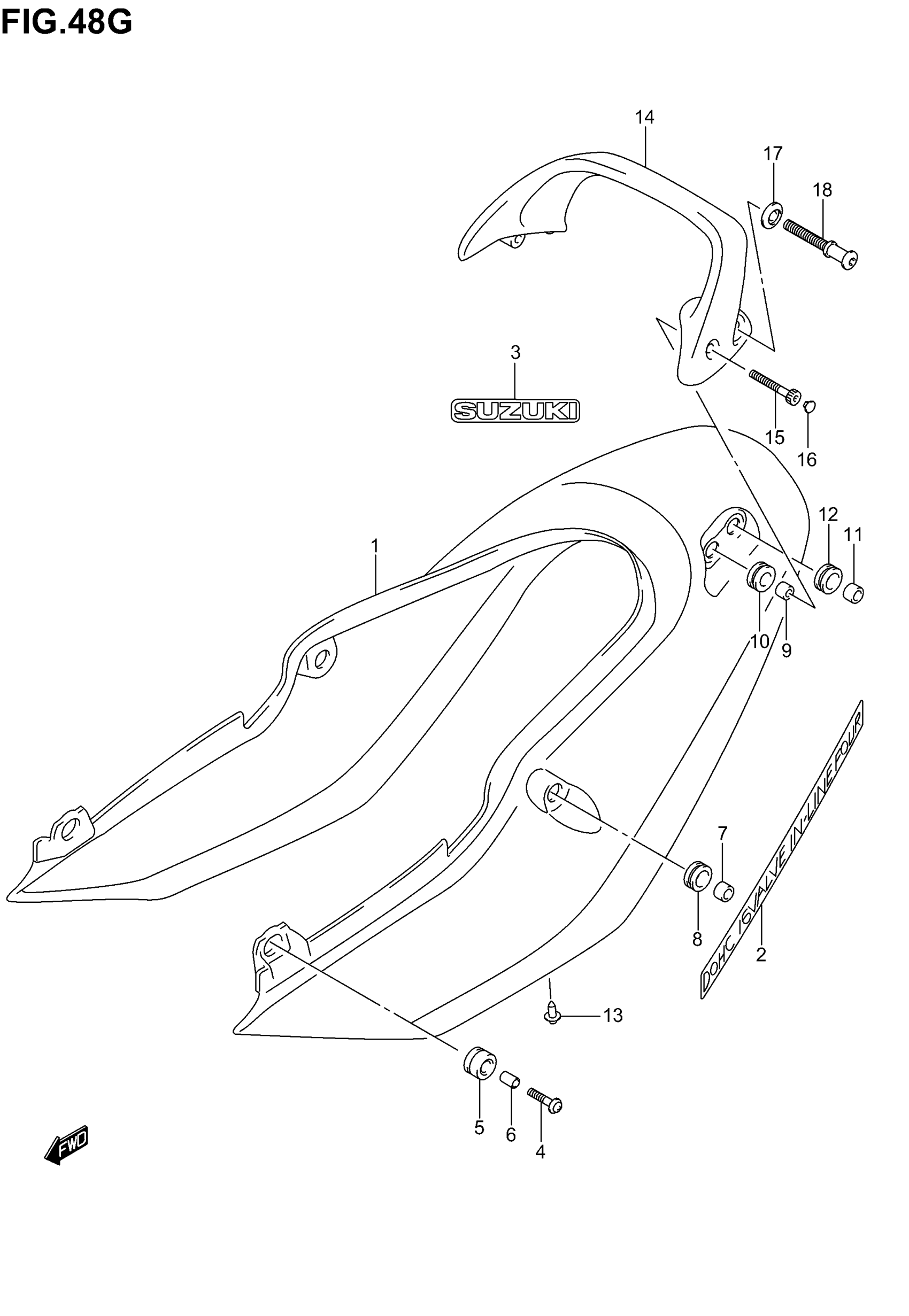

Suzuki GSF1200 (2005) SEAT TAIL COVER (GSF1200SK5) Diagram

#

Description
Price

1

COVER, SEAT TAIL (BLACK)

45510-32F80-YAY

Unavailable

1

COVER, SEAT TAIL (SILVER) | Includes Item(s) 2 - 3

45510-32F80-YD8

Unavailable

2

EMBLEM, TAIL COVER | FOR YAY

68131-32F10-BMN

Unavailable

2

EMBLEM, TAIL COVER | FOR YD8

68131-32F10-BMM

Unavailable

3

EMBLEM,SUZUK | FOR YAY This part replaces 68165-16B00-YD8.

68165-16B01-YD8

$6.42

3

EMBLEM, "SUZUKI" | FOR YD8

68165-16B00-17U

Unavailable

4

SCREW, FRONT (6X30)

09136-06083

$2.19

5

CUSHION, FRONT (10X22X15)

47115-19F00

$5.52

6

SPACER, FRONT (6.5X10X13)

09180-06291

$2.45

7

SPACER, CENTER (8.5X14X9)

09180-08199

$2.12

8

CUSHION, CENTER (14X22X9.5)

09320-14023

$4.17

9

SPACER, RR-FR (6.5X12X9)

09180-06300

$3.85

10

CUSHION, RR-FR (12X22X9.5)

09320-12068

$3.55

11

SPACER, RR-RR (8.5X14X9)

09180-08199

$2.12

12

CUSHION, RR-RR (14X12X9.5)

09320-14023

$4.17

13

CLIP

09409-06314-5PK

$2.78

14

HANDLE, PILLION RIDER (BLACK) This part replaces 46211-32F00-YAY.

46211-32F10-YAY

$292.20

14

HANDLE, PILLION RIDER (SILVER)

46211-32F00-YD8

Unavailable

15

BOLT This part replaces 07120-06453.

07120-0645B

$3.37

16

CAP

09250-05009

$2.19

17

WASHER, HOOK

46317-31F00

$9.72

18

HOOK, HANDLE

46316-31F00

$20.10
