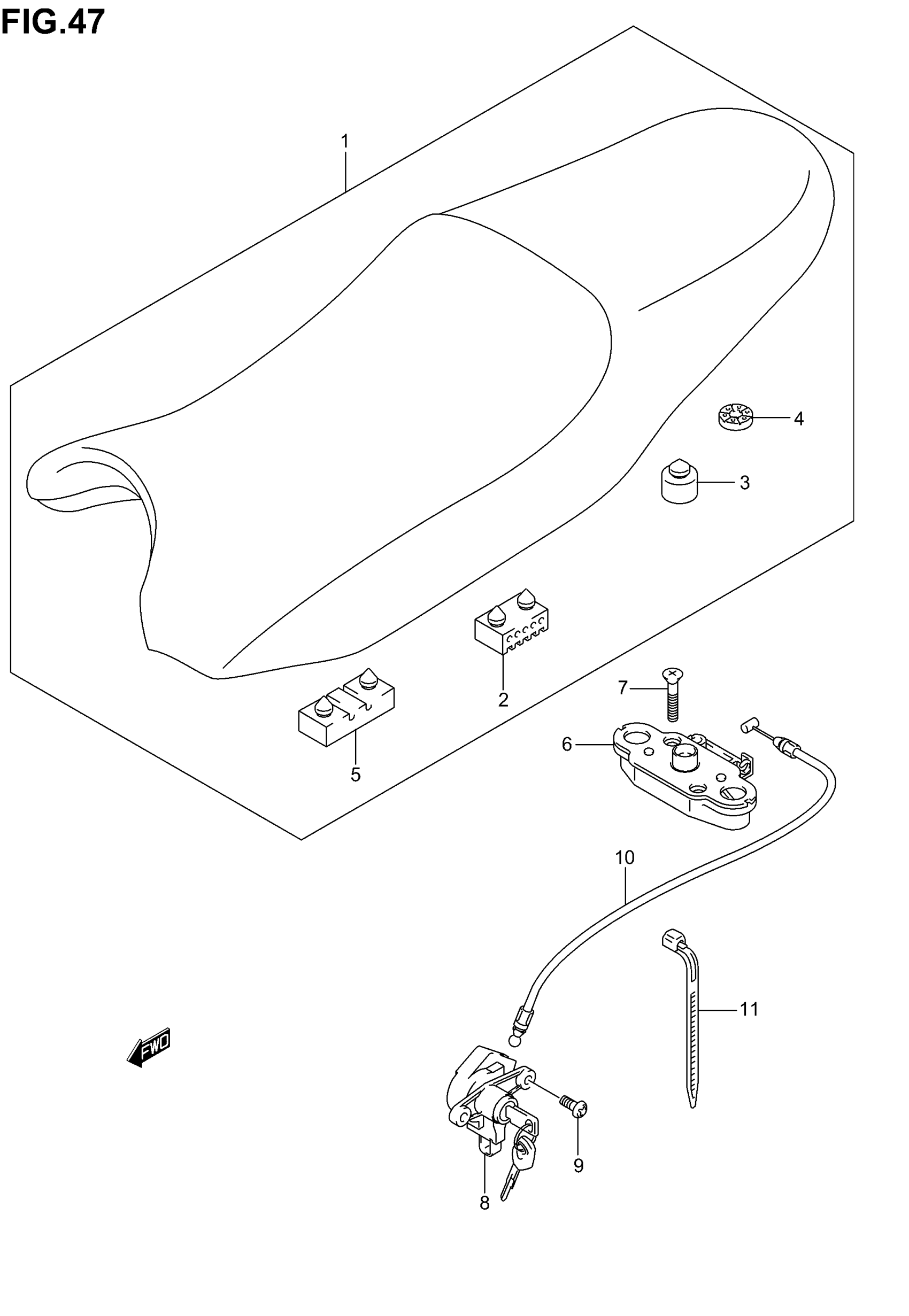

Suzuki GSF1200 (2005) SEAT Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 5

45100-31F11-BH4

Unavailable

2

CUSHION (40X20X15)

45149-31300

$3.56

3

CUSHION

09321-10011

$2.91

4

CUSHION

45213-31300

$2.81

5

CUSHION

45149-05350

Unavailable

6

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$138.38

7

SCREW This part replaces 02122-06303.

02122-0630B

$2.06

8

LOCK SET,SEAT H This part replaces 95700-10834.

95700-10835

$126.00

9

SCREW (6X14)

09139-06092

$2.83

10

CABLE, SEAT LOCK

45280-20A00

Unavailable

11

CLAMP

09407-14403

$2.26
