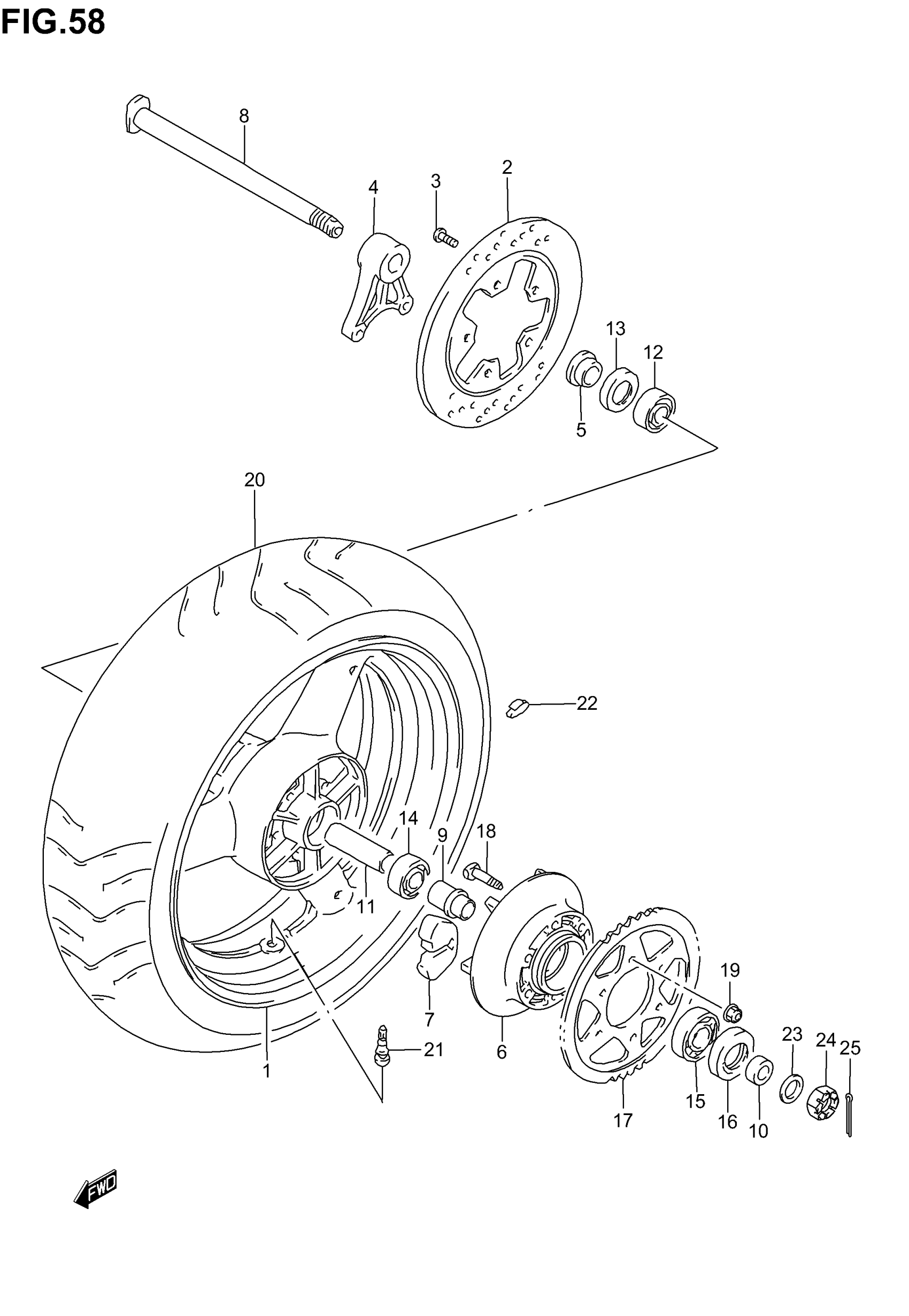

Suzuki GSF1200 (2005) REAR WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K1/K2 This part replaces 64111-17E11-35W.

64111-17E12-35W

Unavailable

1

WHEEL, REAR (MT5.50X17M/C) (BLACK) | MODEL K3/K4 This part replaces 64111-17E11-019.

64111-17E12-019

Unavailable

1

WHEEL, REAR (MT5.50X17M/C) (BLACK) | MODEL K5

64111-17E12-019

Unavailable

2

DISC, REAR BRAKE

69211-21E00

$388.57

3

BOLT (8X33) This part replaces 09106-08125.

09106-08148

$4.80

4

BRACKET, REAR CALIPER

69721-46E00

Unavailable

5

SPACER, REAR AXLE RH

64741-17E00

$25.52

6

DRUM, REAR SPROCKET

64611-32F00

Unavailable

7

ABSORBER, REAR HUB SHOCK

64651-17E00

$15.63

8

AXLE, REAR

64711-32F10

$146.12

9

RETAINER, REAR HUB BEARING

64733-32F00

Unavailable

10

SPACER, REAR AXLE LH

64751-46E00

$17.82

11

SPACER, REAR WHEEL HUB BEARING

64731-40C00

$25.75

12

BEARING, RH (20X47X14)

09262-20114

$32.57

13

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

14

BEARING, LH (20X47X14)

09262-20042

$23.28

15

BEARING (25X62X17)

09262-25114

$54.63

16

SEAL,OIL (35X62X8)

09285-35001

$10.19

17

SPROCKET, REAR (NT:45)

64511-27E00

$117.68

18

BOLT

09119-10037

$4.32

19

NUT

08319-31107

$2.73

20

TIRE, REAR 180/55 ZR17 (73W) (MICHELIN) | GSF1200K1/SK1/K2/SK2/K3 PURCHASE LOCALLY

65110-32F00

Unavailable

20

TIRE, REAR, 180/55 ZR17 (73W) (MICHELIN) | GSF1200SK3/SK4/SK5/SZK5 PURCHASE LOCALLY

65110-32F10

Unavailable

21

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

22

BALANCER, WHEEL (10G) | MODEL K1/K2/K3/K4

55411-00A00

$1.49

22

BALANCER, WHEEL NO.2 | MODEL K1/K2/K3/K4 This part replaces 55412-00A01.

55412-17G00

$7.05

22

BALANCER, WHEEL, NO.1 | MODEL K5

55411-17G00

$7.63

22

BALANCER, WHEEL, NO.2 | MODEL K5

55412-17G00

$7.05

23

WASHER (18.5X28X2.60)

09160-18030

$2.56

24

NUT This part replaces 08314-40183.

08314-4018A

$4.64

25

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49
