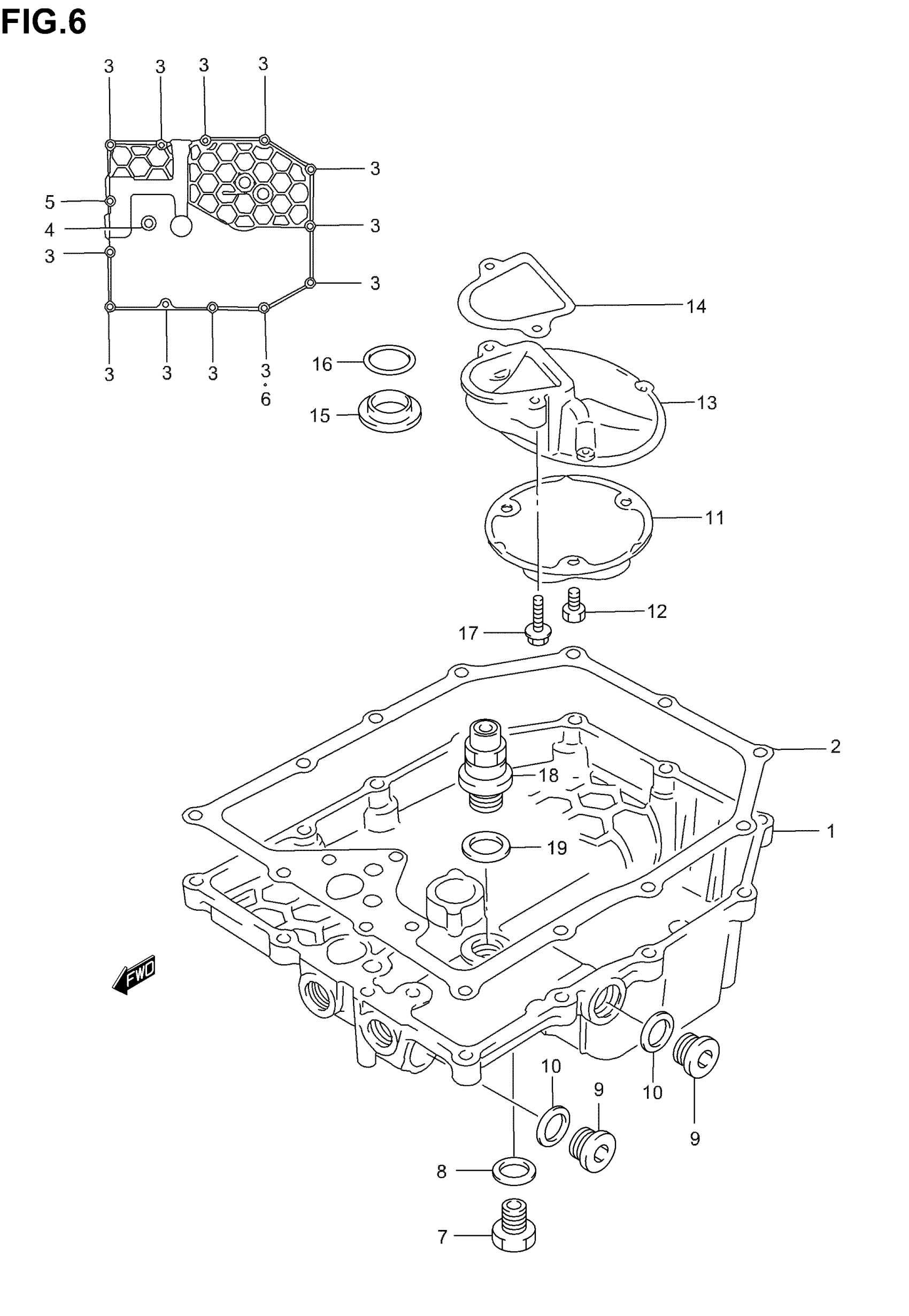

Suzuki GSF1200 (2005) OIL PAN Diagram

#

Description
Price

1

PAN, OIL | MODEL K1 This part replaces 11511-26E00.

11511-26E01

$373.97

1

PAN, OIL | MODEL K2/K3/K4/K5

11511-26E01

$373.97

2

GASKET

11489-27A21

$16.33

3

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

4

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

5

BOLT This part replaces 01550-06503.

01550-0650A

$2.85

6

GASKET (5.8X13X1.2)

09168-06023

$2.35

7

PLUG (MAGNETO) | MODEL K1/K2

09247-14002

$5.24

7

PLUG, DRAIN | MODEL K3/K4/K5

09247-14026

$3.76

8

GASKET

09168-14002

$2.26

9

PLUG, OIL GALLERY

09248-16012

$4.64

10

GASKET

09168-16002

$1.91

11

STRAINER, OIL

16520-09301

$15.42

12

BOLT This part replaces 01570-06123.

01570-0612A

$2.63

13

PROTECTOR, OIL STRAINER

16525-06B00

$28.57

14

GASKET, OIL STR PROTECTOR | MODEL K1/K2/K3/K4 This part replaces 16528-27A20.

16528-27A21

$5.78

14

GASKET, PROTECTOR | MODEL K5

16528-27A21

$5.78

15

GASKET, OIL OUTLET

16529-27A01

$2.15

16

O RING (D:3.2,ID:17.8)

09280-18009

$5.83

17

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

18

VALVE ASSY, OIL RELIEF This part replaces 16440-17C01.

16440-17C10

$67.28

19

GASKET

09168-16002

$1.91
