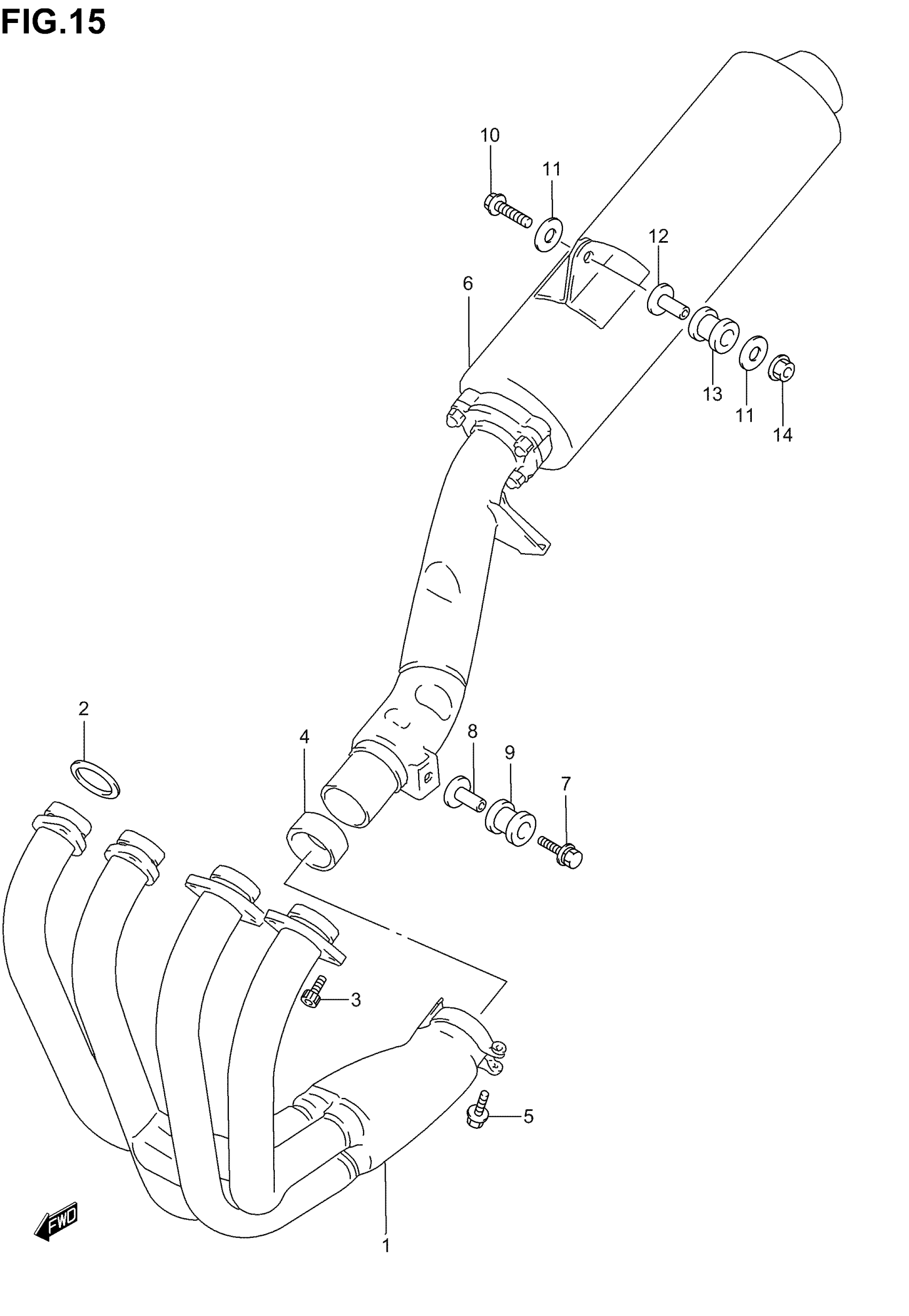

Suzuki GSF1200 (2005) MUFFLER Diagram

#

Description
Price

1

EXHAUST This part replaces 14100-32F10.

14100-32F11

Unavailable

2

.GASKET,EXHAUST

14181-18C00

$7.22

3

BOLT (8X25)

09106-08165

$4.03

4

CONNECTOR

14771-27E00

$42.03

5

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

6

BODY, MUFFLER | MODEL K1/K2/K3

14310-32F10-H01

Unavailable

6

MUFFLER | MODEL K4/K5 E3,E28

14305-32F30-H01

Unavailable

6

MUFFLER | MODEL K4/K5 E33

14305-32F20

Unavailable

7

BOLT (8X40) This part replaces 09118-08068.

09118-08145

$6.47

8

SPACER (8.6X12X24.2)

09180-08152

$5.83

9

CUSHION

09320-12048

$5.11

10

BOLT | MODEL K1/K2/K3

09103-08386

Unavailable

10

BOLT | MODEL K4/K5

09103-08358

$3.42

11

WASHER (8.5X33X1.5) | MODEL K1/K2/K3 This part replaces 09160-08140.

09160-08146

$2.60

11

WASHER (8.5X33X1.5) | MODEL K4/K5 This part replaces 09160-08140.

09160-08146

$2.60

12

SPACER

09180-08213

$8.50

13

CUSHION, MUFFLER SUPPORT

09320-12069

$13.53

14

NUT This part replaces 08361-25088.

08361-2508A

$1.97
