Description

Price

1

BOX, MANUAL

47431-31F00

$52.23

2

SCREW

09136-06105

$1.97

3

SPACER

09180-06284

$3.03

4

CUSHION

09320-10045

$3.76

5

PLATE, RELAY

47410-31F00

Unavailable

6

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

7

PLATE, IGNITER | MODEL K1

47412-31F00

Unavailable

7

PLATE, IGNITER | MODEL K2/K3/K4/K5

47412-31F10

Unavailable

8

SCREW, REAR SIDE BRKT This part replaces 02162-06123.

02162-0612A

$2.05

9

TOOL ASSY

09800-21017

$76.62

10

CLAMP WRENCH

09822-00005

$15.16

11

SPANNER (24)

09817-00039

Unavailable

12

BAND, TOOL

09462-00034

$4.24

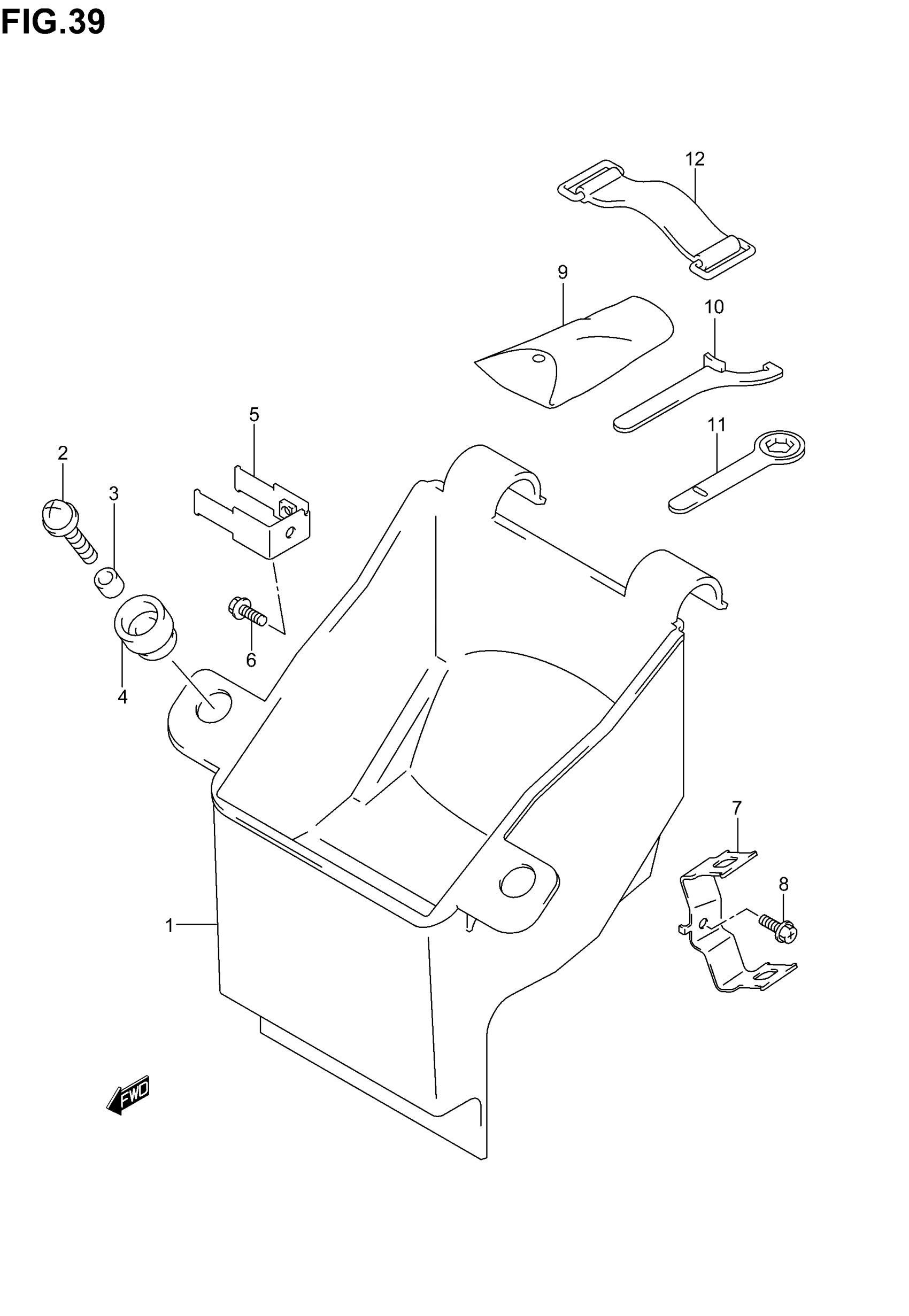

Suzuki GSF1200 (2005) MANUAL BOX Diagram

BOX, MANUAL

SCREW

SPACER

CUSHION

PLATE, RELAY

BOLT, CLAMP This part replaces 01550-06123.

PLATE, IGNITER | MODEL K1

PLATE, IGNITER | MODEL K2/K3/K4/K5

SCREW, REAR SIDE BRKT This part replaces 02162-06123.

TOOL ASSY

CLAMP WRENCH

SPANNER (24)

BAND, TOOL
