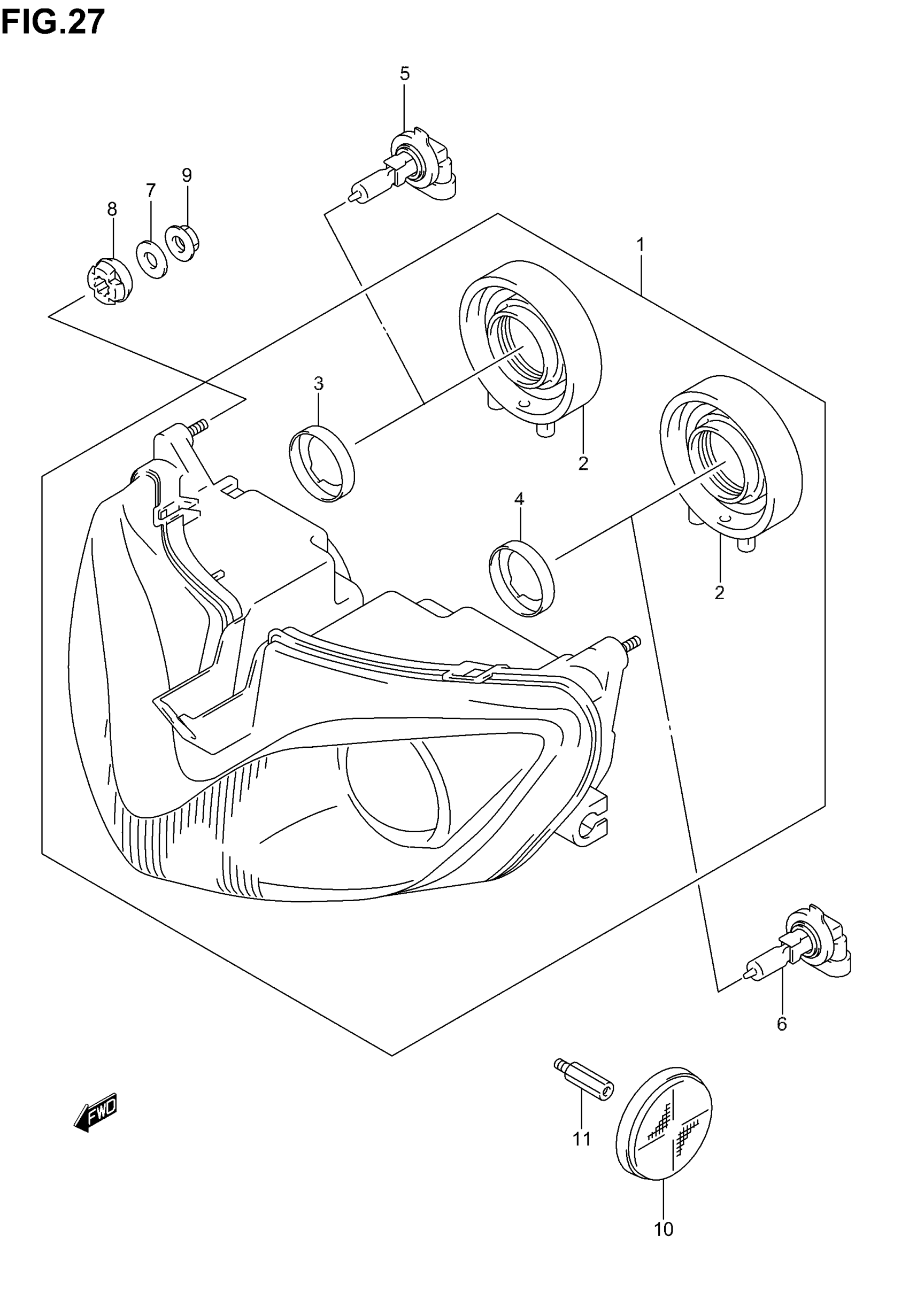

Suzuki GSF1200 (2005) HEADLAMP (GSF1200SK1/SK2/SK3/SK4/SK5/SZK5) Diagram

#

Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 4

35100-31F30-999

Unavailable

2

SOCKET, COVER

35125-24F00

$22.27

3

RING, RH

35127-31F50

$12.48

4

RING, LH

35327-31F50

$12.48

5

BULB (12V,60W,HB3,P20D) | PURCHASE LOCALLY FOR HIGH BEAM

09471-12151

$47.07

6

BULB (12V,51W,HB4,P22D) | PURCHASE LOCALLY FOR LOW BEAM

09471-12150

$52.73

7

.WASHER (6.5X20X1.6)

09160-06088

$1.65

8

CUSHION

09320-09010

$2.84

9

NUT This part replaces 08316-10063.

08316-1006B

$2.50

10

REFLEX REFLECTOR ASSY, FRONT

35950-14A00

$16.94

11

BOLT (5X10) | MODEL K1 This part replaces 35959-05900.

09119-05023

$12.35

11

BOLT (5X10) | MODEL K2/K3/K4/K5

09119-05023

$12.35
