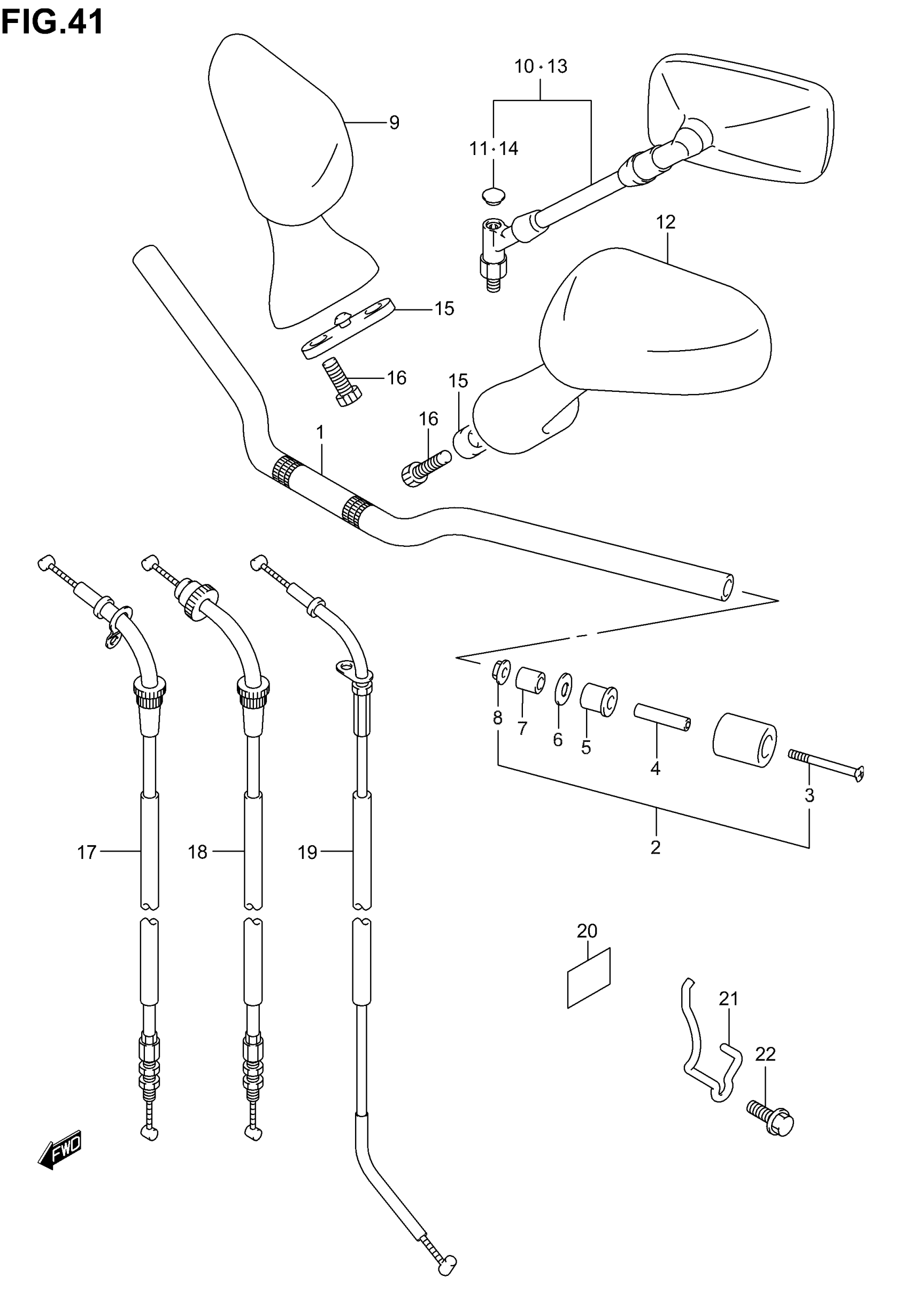

Suzuki GSF1200 (2005) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-32F00

$143.92

2

BALANCER SET,HA | Includes Item(s) 3 - 8 This part replaces 56200-27861.

56200-27863

$54.72

3

SCREW (6X125)

09127-06021

$2.76

4

SPACER, EXPANDER

56276-17D00

$5.07

5

EXPANDER, HANDLE BALANCER

56272-19D00

Unavailable

6

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

7

.EXPANDER,HANDLE BALANCER This part replaces 56272-43500.

56272-42F00

$5.45

8

NUT

09159-06024

$2.11

9

MIRROR ASSY, REAR VIEW RH | GSF1200SK1/SK2/SK3/SK4/SK5/SZK5

56500-31F00

$338.96

10

MIRROR ASSY,RR | GSF1200K1/K2/K3; Includes Item(s) 11 This part replaces 56500-03F00.

56500-03F90

$191.36

11

CAP | GSF1200K1/K2/K3 This part replaces 56524-28600.

56524-28601

$4.63

12

MIRROR ASSY,RR | GSF1200SK1/SK2/SK3/SK4/SK5/SZK5 This part replaces 56600-31F00.

56600-31F01

$397.22

13

MIRROR ASSY,RR | GSF1200K1/K2/K3; Includes Item(s) 14 This part replaces 56600-03F00.

56600-03F90

$131.20

14

CAP | GSF1200K1/K2/K3 This part replaces 56524-28600.

56524-28601

$4.63

15

CUSHION, REAR VIEW MIRROR | GSF1200SK1/SK2/SK3/SK4/SK5/SZK5

94576-31F00

$8.28

16

BOLT | GSF1200SK1/SK2/SK3/SK4/SK5/SZK5 This part replaces 07130-06353.

07130-0635B

$3.37

17

CABLE ASSY, THROTTLE NO.1

58300-32F00

$42.88

18

CABLE ASSY, THROTTLE NO.2

58300-32F10

$42.88

19

CABLE, STARTER

58410-32F00

$45.75

20

PROTECTOR, FRAME COVER FRONT

47261-48B00

Unavailable

21

GUIDE, CABLE

58622-31F00

Unavailable

22

BOLT This part replaces 01550-06163.

01550-0616A

$1.97
