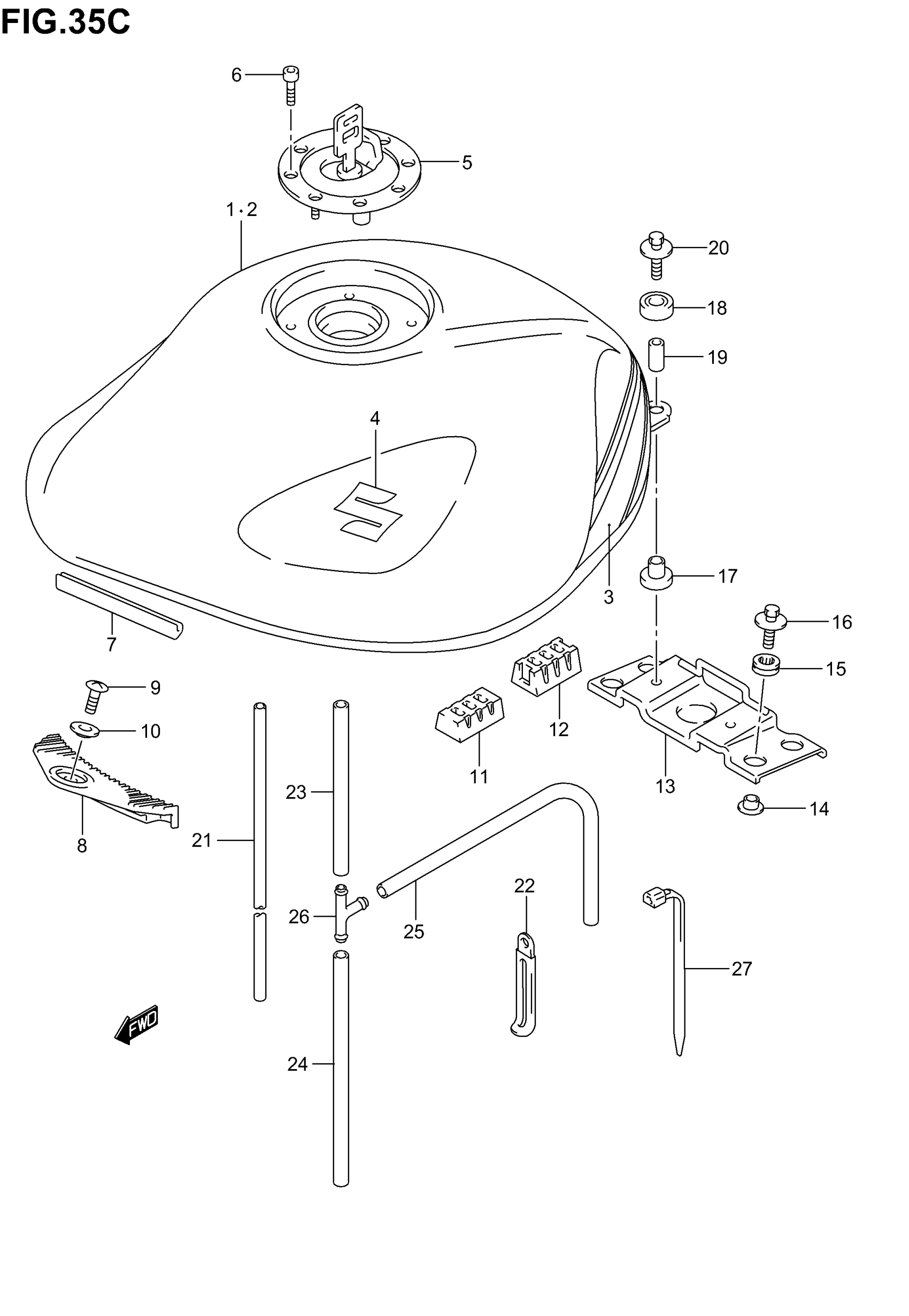

Suzuki GSF1200 (2005) FUEL TANK (MODEL K5) Diagram

#

Description
Price

1

TANK ASSY, FUEL (SILVER) | E3,E28

44100-32F10-YD8

Unavailable

1

TANK ASSY, FUEL (BLACK) | E3,E28

44100-32F10-YAY

Unavailable

1

TANK ASSY, FUEL (SILVER) | E33

44100-32F30-YD8

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33

44100-32F30-YAY

Unavailable

2

TANK ASSY, FUEL | GSF1200SZ E3

44100-32F40-LR5

Unavailable

2

TANK ASSY, FUEL | GSF1200SZ E33; Includes Item(s) 3

44100-32F60-LR5

Unavailable

3

TAPE SET | GSF1200SZ

68110-32F10-LW8

Unavailable

4

EMBLEM, "S"

68111-18G20

$32.30

5

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33810.

44201-33812

$254.92

5

CAP SET,FUEL TA | E33 This part replaces 44200-33830.

44200-33831

$318.75

6

BOLT (L:20)

09106-05017

$2.83

7

MOLDING

68241-04X50-00B

$27.30

8

CUSHION, FUEL TANK FRONT

44511-27E00

$12.48

9

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

10

WASHER

09169-05012

$2.38

11

CUSHION, SIDE

45149-45330

$3.89

12

CUSHION, FUEL TANK SIDE

44541-31F00

$11.53

13

BRACKET, REAR

44550-31F01

Unavailable

14

WASHER, LOWER

09169-06062

$2.50

15

CUSHION, BRACKET

09320-09009

$4.64

16

BOLT (6X25) This part replaces 09116-06146.

09116-06150

$2.59

17

CUSHION, LOWER

09320-10038

$2.61

18

CUSHION, UPPER

44512-42E00

$3.43

19

SPACER (6.5X9X18)

09180-06271

$2.35

20

BOLT (6X30)

09116-06172

$2.50

21

HOSE(7X11X2000) This part replaces 09352-70113-00B.

09352-70119-00B

$29.92

22

CLAMP

09404-10417

$2.72

23

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

24

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

25

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

26

.JOINT,3 WAY

09367-06002

$2.50

27

CLAMP

09407-14403

$2.26
