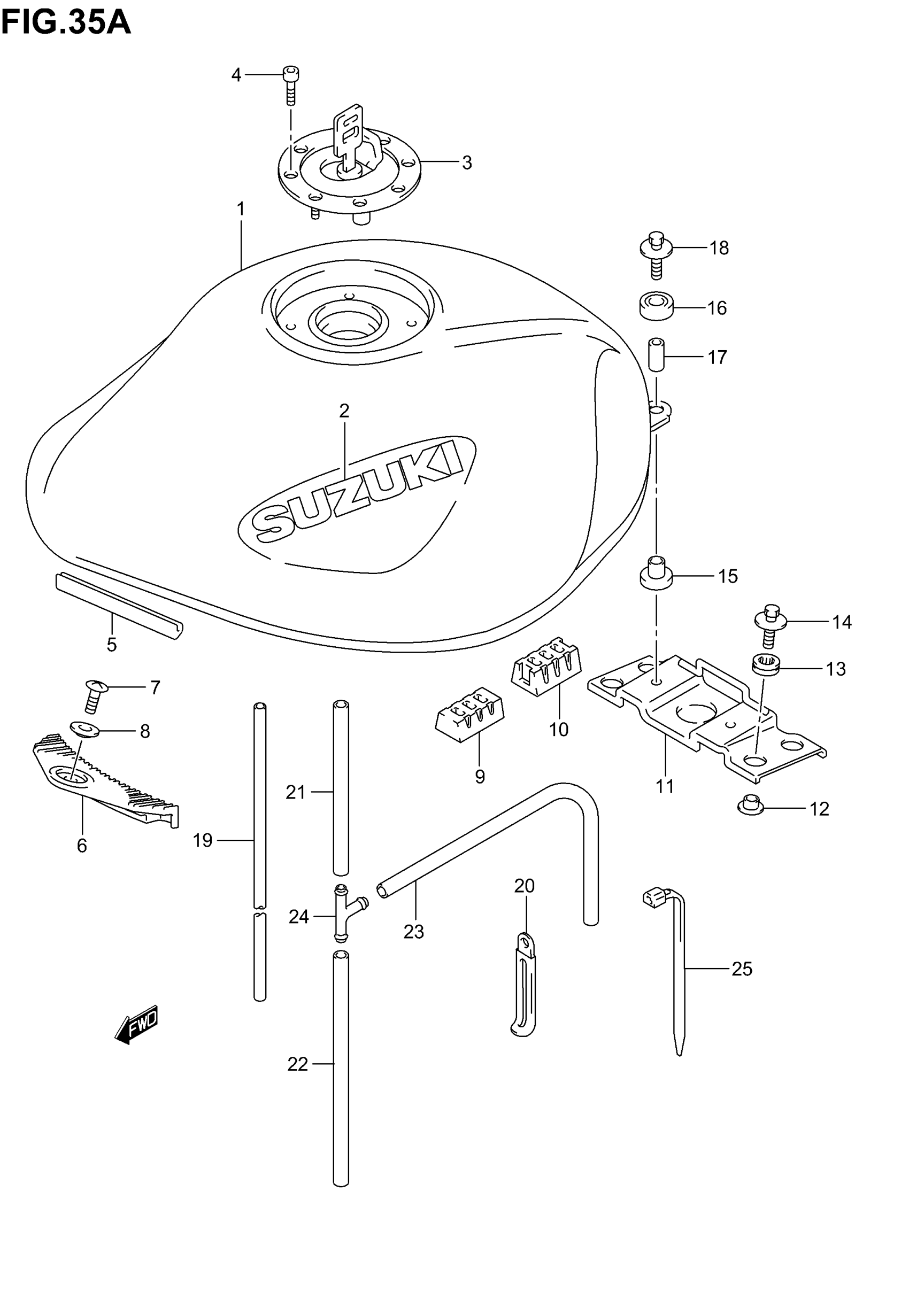

Suzuki GSF1200 (2005) FUEL TANK (MODEL K2/K3) Diagram

#

Description
Price

1

TANK ASSY,FUEL( | MODEL K2 E3,E28 This part replaces 44100-31F10-33J.

44110-31F30-13L

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K2 E3,E28

44100-31F10-Y7H

Unavailable

1

TANK ASSY, FUEL (SILVER) | E3,E28

44100-31F10-YD8

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K3 E3,E28

44100-31F10-YAR

Unavailable

1

TANK ASSY, FUEL (GREEN) | MODEL K3 E3,E28

44100-31F10-YV4

Unavailable

1

TANK ASSY, FUEL (BLACK) | MODEL K2 E33

44100-31F50-33J

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K2 E33

44100-31F50-Y7H

Unavailable

1

TANK ASSY,FUEL( | E33 This part replaces 44100-31F50-YD8.

44100-31F51-YD8

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K3 E33

44100-31F50-YAR

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K3 E33; Includes Item(s) 2 - 2 This part replaces 44100-31F50-YV4.

44100-31F51-YV4

Unavailable

2

EMBLEM, FUEL TANK (CHROME) | FOR 33J,Y7H,YAR,YV4

68271-04AA0-0AT

$22.67

2

EMBLEM, FUEL TANK (BLACK) | FOR YD8

68271-04AA0-YN7

$22.67

3

CAP SET,FUEL TA | E3,E28 This part replaces 44201-33810.

44201-33812

$254.92

3

CAP SET,FUEL TA | E33 This part replaces 44200-33830.

44200-33831

$318.75

4

BOLT (L:20)

09106-05017

$2.83

5

MOLDING

68241-04X50-00B

$27.30

6

CUSHION, FUEL TANK FRONT

44511-27E00

$12.48

7

SCREW This part replaces 02142-05103.

02142-0510B

$1.78

8

WASHER

09169-05012

$2.38

9

CUSHION, SIDE

45149-45330

$3.89

10

CUSHION, FUEL TANK SIDE

44541-31F00

$11.53

11

BRACKET, REAR

44550-31F01

Unavailable

12

WASHER, LOWER

09169-06062

$2.50

13

CUSHION, BRACKET

09320-09009

$4.64

14

BOLT (6X25) This part replaces 09116-06146.

09116-06150

$2.59

15

CUSHION, LOWER

09320-10038

$2.61

16

CUSHION, UPPER

44512-42E00

$3.43

17

SPACER (6.5X9X18)

09180-06271

$2.35

18

BOLT (6X30)

09116-06172

$2.50

19

HOSE(7X11X2000) This part replaces 09352-70113-00B.

09352-70119-00B

$29.92

20

CLAMP

09404-10417

$2.72

21

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

22

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

23

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

24

.JOINT,3 WAY

09367-06002

$2.50

25

CLAMP

09407-14403

$2.26
