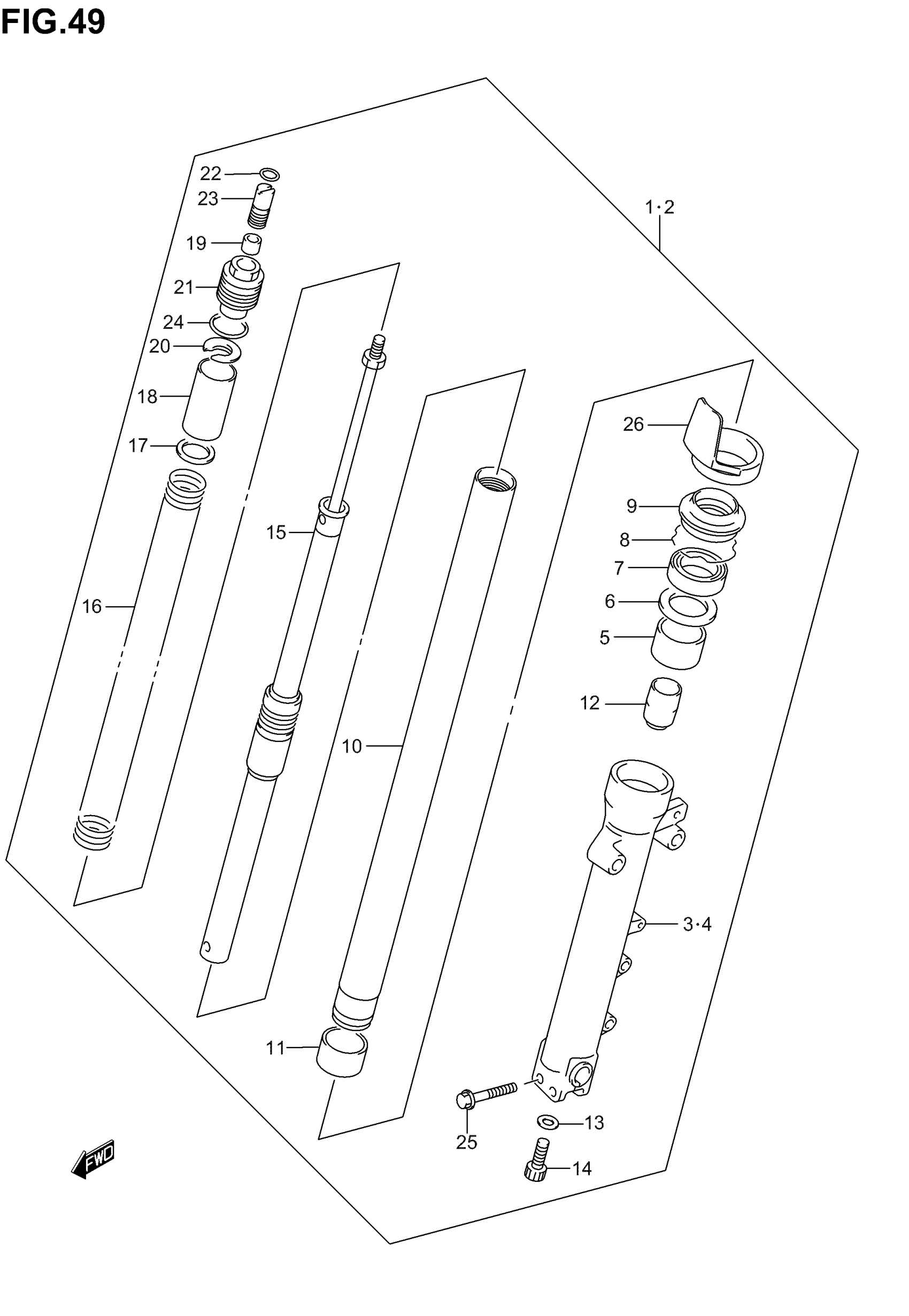

Suzuki GSF1200 (2005) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-32F00

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 26

51104-32F00

Unavailable

3

TUBE, OUTER RH

51130-32F00

Unavailable

4

TUBE, OUTER LH

51140-32F00

Unavailable

5

BUSH, GUIDE

51152-03F00

$22.22

6

.SPACER, SEAL

51168-17C00

$6.28

7

SEAL, OIL

51153-14D00

$22.96

8

RING, STOPPER

51556-38B00

$7.22

9

SEAL, DUST

51173-29E00

$26.58

10

TUBE, INNER

51110-27E00

$523.65

11

.BUSH,SLIDE This part replaces 51121-17C00.

51121-07J00

$21.58

12

PIECE, OIL LOCK

51195-31E00

$30.22

13

GASKET

51148-36011

$3.56

14

BOLT

51147-48130

$4.34

15

ROD, DAMPER

52110-32F00

Unavailable

16

SPRING, FRONT

51171-32F00

Unavailable

17

SEAT, SPRING LOWER

51186-17C00

$7.53

18

COLLAR, SPRING

51176-12C10

$13.92

19

.NUT

51827-27E00

Unavailable

20

SEAT, SPRING UPPER

51172-17C00

$14.20

21

BOLT, FORK

51189-14D00

Unavailable

22

O RING

09280-14011

$4.77

23

ADJUSTER, SPRING

51185-31E00

Unavailable

24

O RING

51117-17C00

$5.95

25

BOLT, RH

01550-08457

$4.00

26

PROTECTOR

51201-32F00

$20.95
