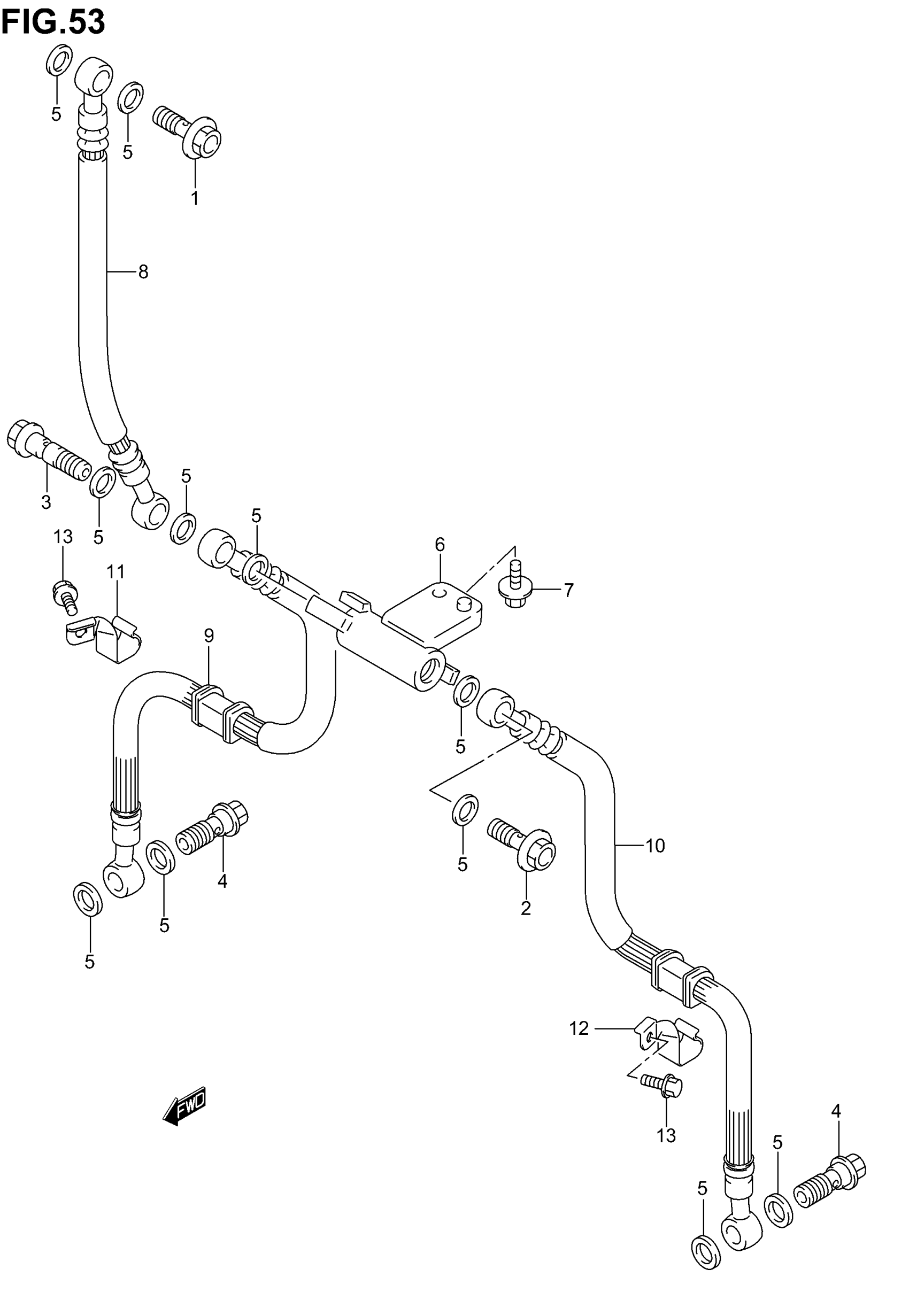

Suzuki GSF1200 (2005) FRONT BRAKE HOSE Diagram

#

Description
Price

1

UNION This part replaces 09360-10041.

09360-10061

$6.43

2

UNION This part replaces 09360-10041.

09360-10061

$6.43

3

UNION This part replaces 09360-10043.

09360-10063

$7.85

4

UNION This part replaces 09360-10042.

09360-10062

$6.43

5

WASHER (10X15X1.5)

09161-10009

$1.84

6

JOINT, BRAKE HOSE

59491-17E00

Unavailable

7

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

8

HOSE, FRONT BRAKE NO.1 | GSF1200SK1/SK2/SK3/SK4

59480-31F10

Unavailable

8

HOSE, FRONT BRAKE NO.1 | GSF1200K1/K2/K3

59480-31F00

Unavailable

8

HOSE, FRONT BRAKE NO.1 | GSF1200SK5/SZK5

59480-31F30

Unavailable

9

HOSE, FRONT BRAKE NO.2 RH | MODEL K1/K2/K3/K4

59240-32F00

Unavailable

9

HOSE,FR BRAKE | MODEL K5 This part replaces 59240-32F10.

59240-32F11

Unavailable

10

HOSE, FRONT BRAKE NO.2 LH | MODEL K1/K2/K3/K4

59440-32F00

Unavailable

10

HOSE,FRONT BRAK | MODEL K5 This part replaces 59440-32F10.

59440-32F11

$114.07

11

CLAMP, BRAKE HOSE NO.2 RH

59268-32F00

Unavailable

12

CLAMP, BRAKE HOSE NO.2 LH

59269-32F00

Unavailable

13

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
