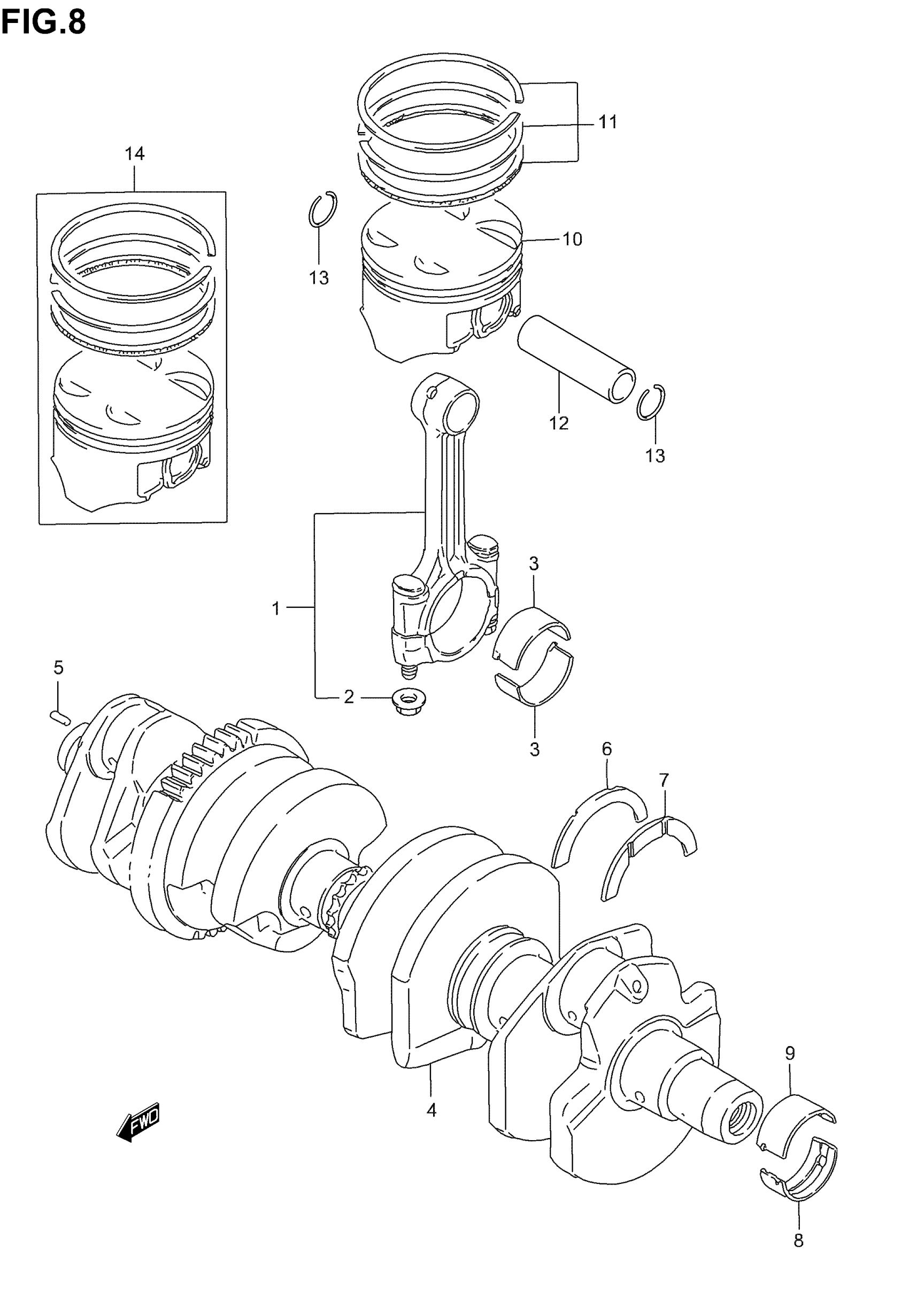

Suzuki GSF1200 (2005) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2

12160-40C03

Unavailable

2

NUT

09159-09001

$4.68

3

BEARING (GREEN)

12164-46E01-0A0

$16.80

3

BEARING (BLACK)

12164-46E01-0B0

$16.80

3

BEARING (BROWN)

12164-46E01-0C0

$17.30

3

BEARING (YELLOW)

12164-46E01-0D0

$17.30

4

CRANKSHAFT SET | Includes Item(s) 5 - 7

12000-27831

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

BEARING, CRANK THRUST (GREEN) | RH

12228-48B00-0E0

$9.34

7

BEARING, CRANK THRUST (PINK) | LH

12228-48B00-0A0

Unavailable

7

BEARING, CRANK THRUST (BROWN) | LH

12228-48B00-0B0

$11.57

7

BEARING, CRANK THRUST (RED) | LH

12228-48B00-0C0

$11.35

7

BEARING, CRANK THRUST (YELLOW) | LH

12228-48B00-0D0

$11.78

7

BEARING, CRANK THRUST (GREEN) | LH

12228-48B00-0E0

$9.34

7

BEARING, CRANK THRUST (BLUE) | LH

12228-48B00-0F0

$11.78

7

BEARING, CRANK THRUST (ORANGE) | LH

12228-48B00-0G0

$11.78

7

BEARING, CRANK THRUST (BLACK) | LH

12228-48B00-0H0

$9.66

8

BEARING, CRANKSHAFT (GREEN) | LOWER

12229-06B00-0A0

$12.00

8

BEARING, CRANKSHAFT (BLACK) | LOWER

12229-06B00-0B0

$10.21

8

BEARING, CRANKSHAFT (BROWN) | LOWER

12229-06B00-0C0

$12.00

8

BEARING, CRANKSHAFT (YELLOW) | LOWER

12229-06B00-0D0

$12.22

9

BEARING, CRANKSHAFT (GREEN) | UPPER

12229-06B10-0A0

$12.00

9

BEARING, CRANKSHAFT (BLACK) | UPPER

12229-06B10-0B0

$10.21

9

BEARING, CRANKSHAFT (BROWN) | UPPER

12229-06B10-0C0

$10.21

9

BEARING, CRANKSHAFT (YELLOW) | UPPER

12229-06B10-0D0

$12.45

10

PISTON

12111-27E10-0F0

Unavailable

11

RING SET, PISTON

12140-27E20

$75.28

12

PIN,PISTON

12151-05A00

$15.61

13

CIRCLIP

09381-20004

$1.65

14

PISTON SET (OS:0.5) | OPT

12100-27E10-050

Unavailable
