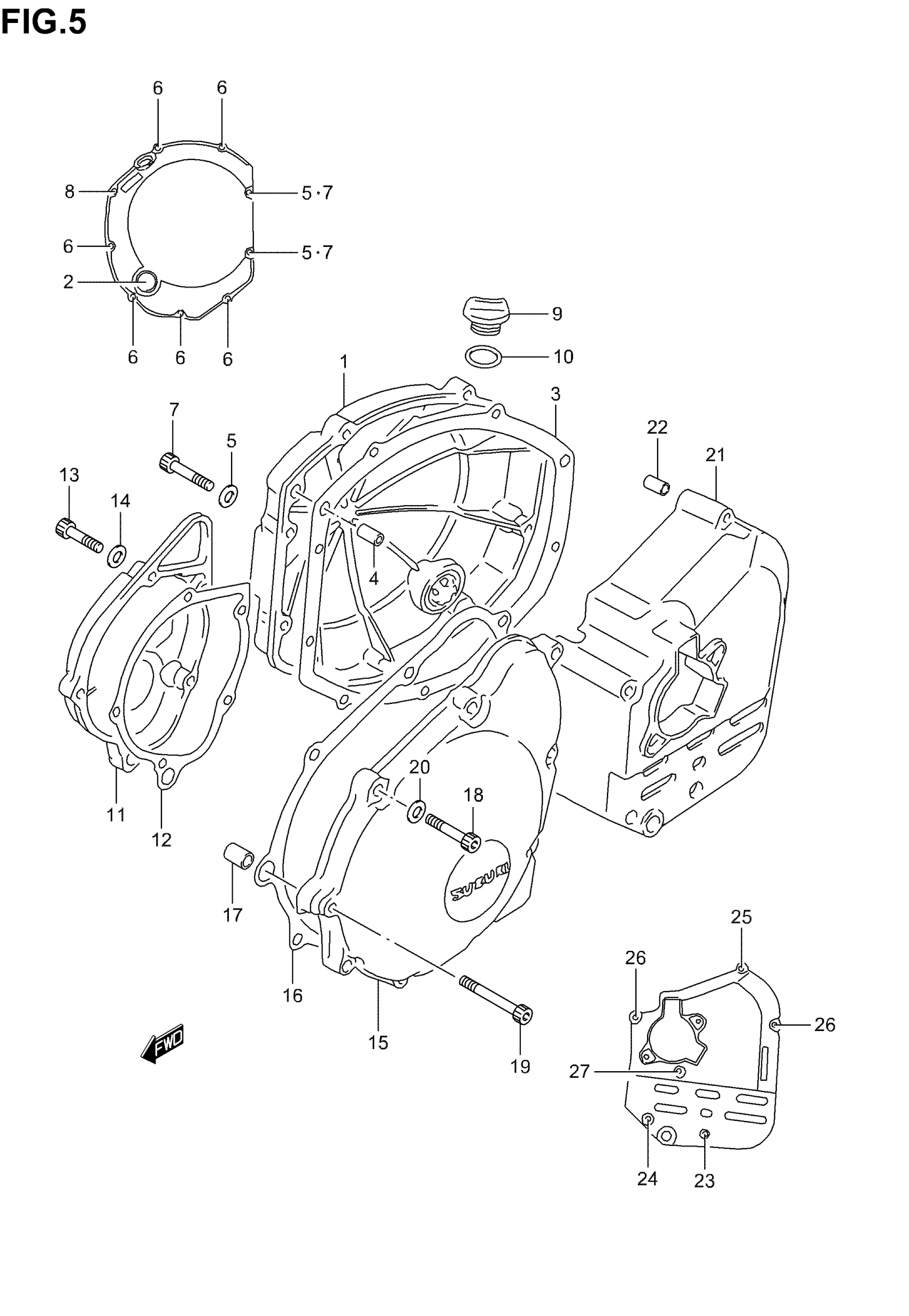

Suzuki GSF1200 (2005) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-26E20

Unavailable

2

LENS, OIL LEVEL CHECK

11971-33210

$18.20

3

GASKET

11482-27A20

$14.20

4

PIN

04211-09189

$1.65

5

GASKET (5.8X13X1.2)

09168-06023

$2.35

6

BOLT | MODEL K1/K2/K3/K4 This part replaces 07130-06253.

07130-0625B

$3.04

6

BOLT | MODEL K5

09106-06090

$3.16

7

BOLT | MODEL K1/K2/K3/K4 This part replaces 07130-06303.

07130-0630B

$3.37

7

BOLT | MODEL K5

09106-06091

Unavailable

8

BOLT | MODEL K1/K2/K3/K4 This part replaces 07130-06353.

07130-0635B

$3.37

8

BOLT | MODEL K5

09106-06092

$4.25

9

.PLUG | MODEL K1/K2 This part replaces 09259-20008.

09259-20008-XC0

$7.50

9

PLUG,ENGINE OIL FILLER | MODEL K3/K4/K5

11971-25D00

$5.11

10

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

11

COVER, SIGNAL GENERATOR

11381-26E21

$68.10

12

GASKET

11491-27A30

$8.40

13

BOLT | MODEL K1/K2/K3/K4

09106-06082

$2.62

13

BOLT | MODEL K5

09106-06094

$3.27

14

GASKET (5.8X13X1.2)

09168-06023

$2.35

15

COVER, STARTER GEAR

11351-26E20

$203.12

16

GASKET,STARTER This part replaces 11483-48B20.

11483-48B21

$12.61

17

PIN

09206-11007

$2.37

18

BOLT | MODEL K1/K2/K3/K4 This part replaces 07130-06253.

07130-0625B

$3.04

18

BOLT | MODEL K5

09106-06090

$3.16

19

BOLT, STATOR | MODEL K1/K2/K3/K4 This part replaces 07130-06403.

07130-0640B

$3.38

19

BOLT | MODEL K5

09106-06093

$4.25

20

GASKET (5.8X13X1.2)

09168-06023

$2.35

21

COVER, ENGINE SPROCKET

11360-27E10

Unavailable

22

PIN

04211-09129

$1.65

23

BOLT | MODEL K1/K2/K3/K4 This part replaces 07130-06453.

07130-0645B

$4.10

23

BOLT | MODEL K5

09106-06108

Unavailable

24

BOLT | MODEL K1/K2/K3/K4 This part replaces 07130-06353.

07130-0635B

$3.37

24

BOLT | MODEL K5

09106-06092

$4.25

25

BOLT | MODEL K1/K2/K3/K4 This part replaces 07130-06553.

07130-0655B

$4.10

25

BOLT | MODEL K5

09106-06110

Unavailable

26

BOLT | MODEL K1/K2/K3/K4 This part replaces 07130-06703.

07130-0670B

$3.89

26

BOLT | MODEL K5

09106-06112

$4.68

27

BOLT | MODEL K1/K2/K3/K4 This part replaces 07130-06753.

07130-0675B

$4.60

27

BOLT | MODEL K5

09106-06113

Unavailable
