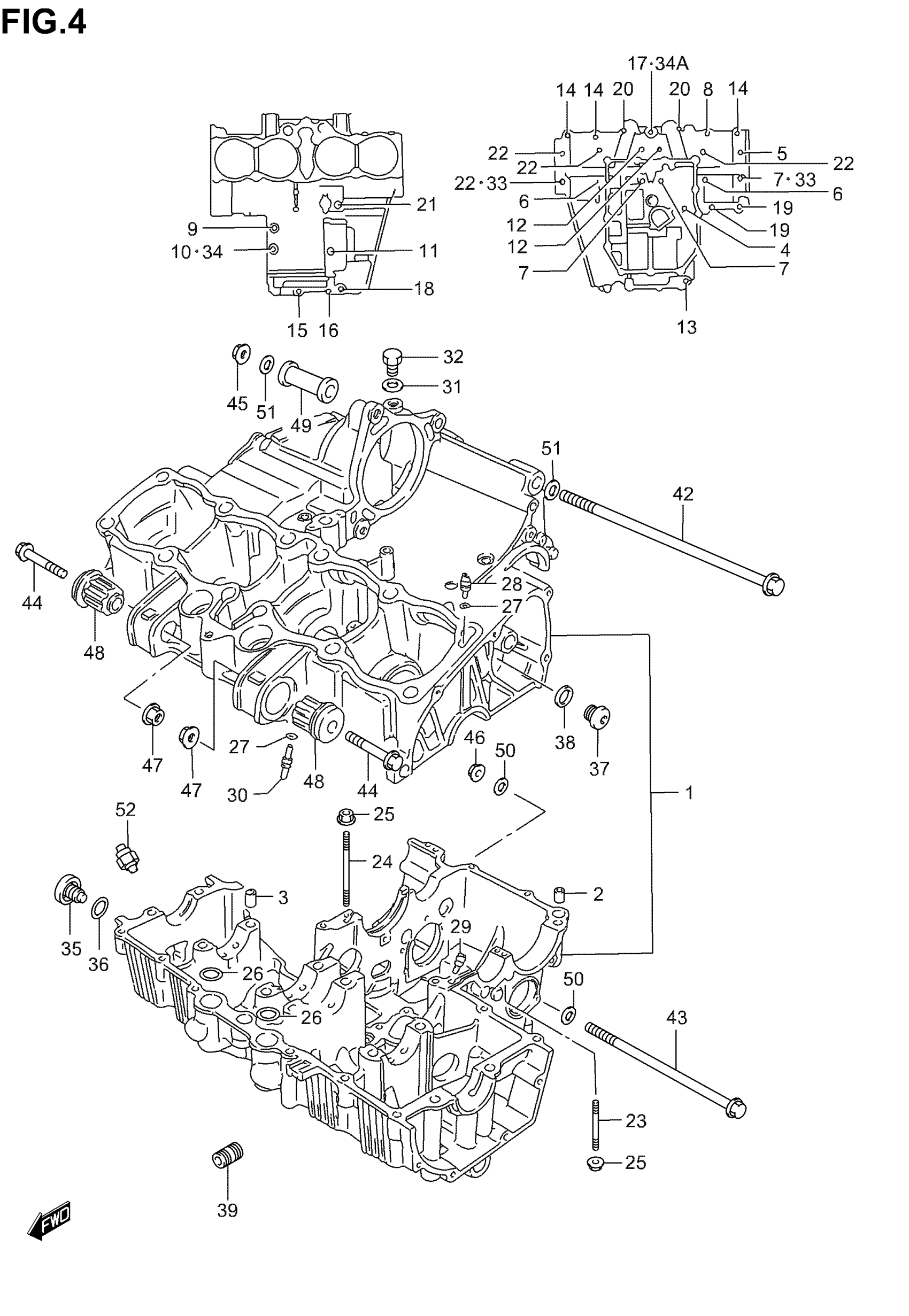

Suzuki GSF1200 (2005) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | ?11301-27830; Includes Item(s) 2 - 41 This part replaces 11301-27832.

11301-27845

Unavailable

2

PIN (13X22)

09206-13004

$2.40

3

PIN (11X20)

09206-11007

$2.37

4

BOLT (6X105)

09103-06163

Unavailable

5

BOLT (8X105)

09103-08097

$3.44

6

BOLT (8X125)

09103-08182

$5.72

7

BOLT (8X115)

09103-08098

$3.29

8

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

9

BOLT, STATOR This part replaces 07130-06403.

07130-0640B

$3.38

10

BOLT This part replaces 07120-06553.

07120-0655B

$4.10

11

BOLT This part replaces 07130-06653.

07130-0665B

$3.79

12

BOLT This part replaces 07130-08653.

07130-0865B

$5.27

13

BOLT This part replaces 01550-08603.

01550-0860A

$4.17

14

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

15

BOLT This part replaces 01550-06403.

01550-0640A

$2.42

16

BOLT This part replaces 01550-06403.

01550-0640A

$2.42

17

BOLT This part replaces 01550-06503.

01550-0650A

$2.85

18

BOLT This part replaces 01550-06603.

01550-0660A

$3.05

19

BOLT This part replaces 01550-06553.

01550-0655B

$3.30

20

BOLT This part replaces 01550-06703.

01550-0670B

$4.25

21

BOLT This part replaces 01550-06803.

01550-0680B

$3.50

22

BOLT (8X95)

09103-08066

$3.93

23

BOLT,STUD This part replaces 01421-06408.

01421-0640A

$2.38

24

BOLT,STUD This part replaces 01421-06608.

01421-0660A

$3.23

25

NUT This part replaces 08316-10063.

08316-1006B

$2.50

26

O RING (D:2.5,ID:21)

09280-21008

$1.91

27

O RING (D:1.2,ID:4)

09280-04004

$1.91

28

JET

09493-14002

Unavailable

29

JET

09493-24010

$16.87

30

JET

09493-26007

Unavailable

31

GASKET

09168-12002

$1.59

32

PLUG

09247-12103

$2.84

33

GASKET

09168-08021

$2.61

34

GASKET

09168-06018

$1.77

34A

GASKET

09168-06023

$2.35

35

PLUG This part replaces 09248-16003.

09248-16007

$9.96

36

O RING (D:2.4,ID:16.8)

09280-17002

$5.11

37

PLUG

09248-14010

$5.50

38

GASKET

09168-14002

$2.26

39

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$7.05

40

BEARING, CRANK THRUST (GREEN) | RH SEE ILLUSTRATION ON FIG.8(B-10)

12228-48B00-0E0

$9.34

41

BEARING, CRANK THRUST (PINK) | LH SEE ILLUSTRATION ON FIG.8(B-10)

12228-48B00-0A0

Unavailable

41

BEARING, CRANK THRUST (BROWN)

12228-48B00-0B0

$11.57

41

BEARING, CRANK THRUST (RED)

12228-48B00-0C0

$11.35

41

BEARING, CRANK THRUST (YELLOW)

12228-48B00-0D0

$11.78

41

BEARING, CRANK THRUST (GREEN)

12228-48B00-0E0

$9.34

41

BEARING, CRANK THRUST (BLUE)

12228-48B00-0F0

$11.78

41

BEARING, CRANK THRUST (ORANGE)

12228-48B00-0G0

$11.78

41

BEARING, CRANK THRUST (BLACK)

12228-48B00-0H0

$9.66

42

BOLT (10X180)

09103-10136

$9.32

43

BOLT (12X140)

09100-12044

Unavailable

44

BOLT | MODEL K1/K2/K3/K4 This part replaces 09103-10289.

09103-10375

$5.28

44

BOLT | MODEL K5

09103-10375

$5.28

45

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.55

46

NUT This part replaces 08319-31128.

08319-3112A

$3.76

47

NUT | MODEL K1/K2/K3/K4 This part replaces 08316-10103.

08316-1010B

$2.66

47

NUT | MODEL K5

09159-10112

Unavailable

48

BUSH,ENGINE MOU This part replaces 11681-06B00.

11681-06B01

$21.25

49

SPACER, ENGINE MOUNT

11610-20C00

$15.42

50

WASHER This part replaces 08322-01123.

08322-0112B

$2.62

51

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.84

52

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$25.13
