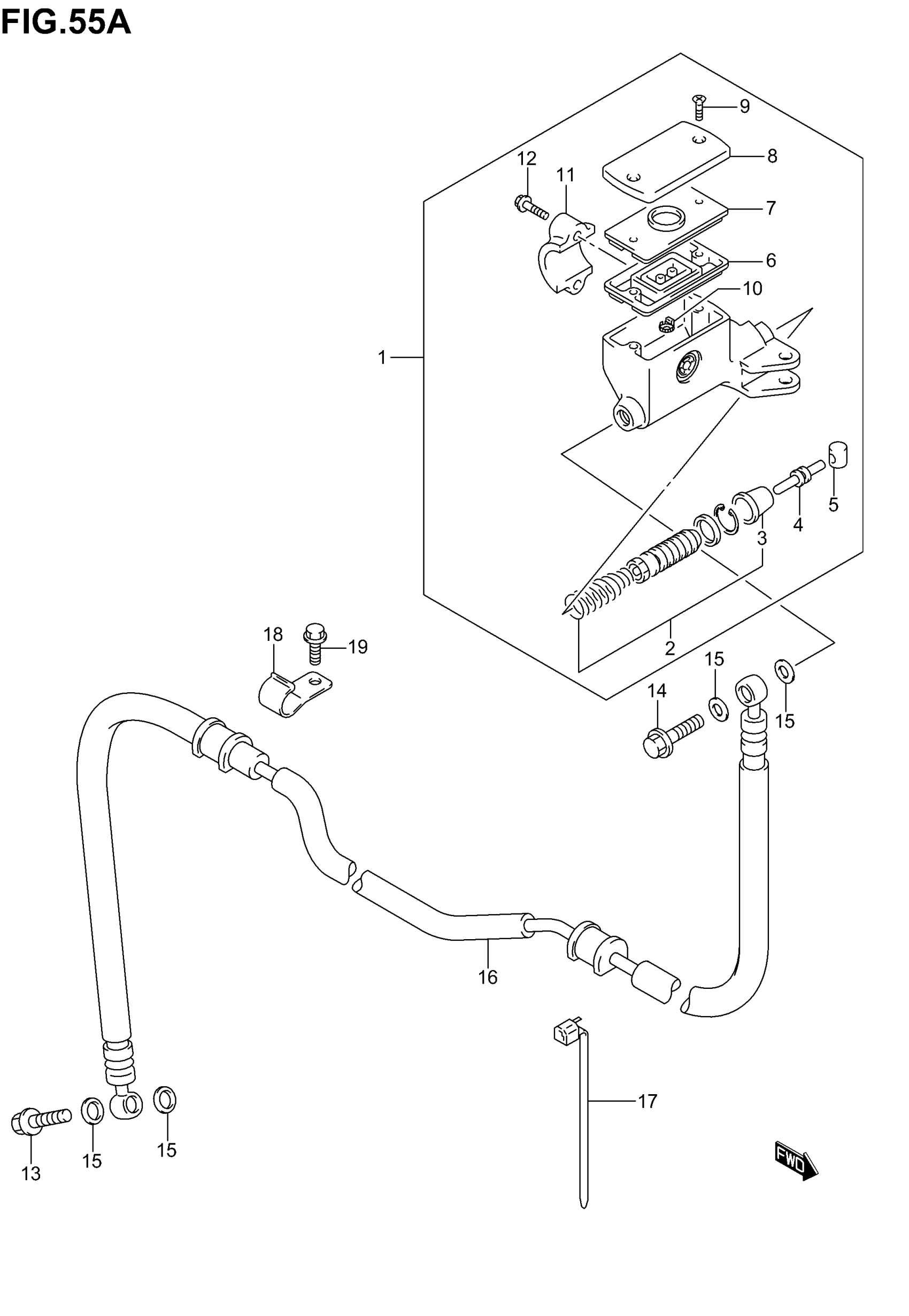

Suzuki GSF1200 (2005) CLUTCH MASTER CYLINDER (GSF1200K1/K2/K3) Diagram

Description

Price

CYLINDER ASSY,C | Includes Item(s) 2 - 12 This part replaces 59800-32F00.

59800-32F02

$330.85

PISTON/CUP SET

59800-08810

$39.48

BOOT

59666-44300

$5.80

PUSH ROD This part replaces 59871-38A00.

59871-32F00

$5.84

BUSH

59892-08A00

$5.05

DIAPHRAGM

59667-49460

$9.78

PLATE

59668-41C00

$9.32

CAP

59669-10G00

$38.30

SCREW

69689-49300

$1.91

PROTECTOR

59664-32F00

$11.68

HOLDER

59671-32F00

$19.52

BOLT

59675-02FA0

$3.82

UNION This part replaces 09360-10041.

09360-10061

$6.43

UNION This part replaces 09360-10042.

09360-10062

$6.43

WASHER (10X15X1.5)

09161-10009

$1.84

HOSE,CLUTCH This part replaces 59910-32F00.

59910-32F11

Unavailable

CLAMP

09407-14403

$2.26

CLAMP

59915-32F00

Unavailable

BOLT This part replaces 01547-06123.

01547-0612B

$1.49
