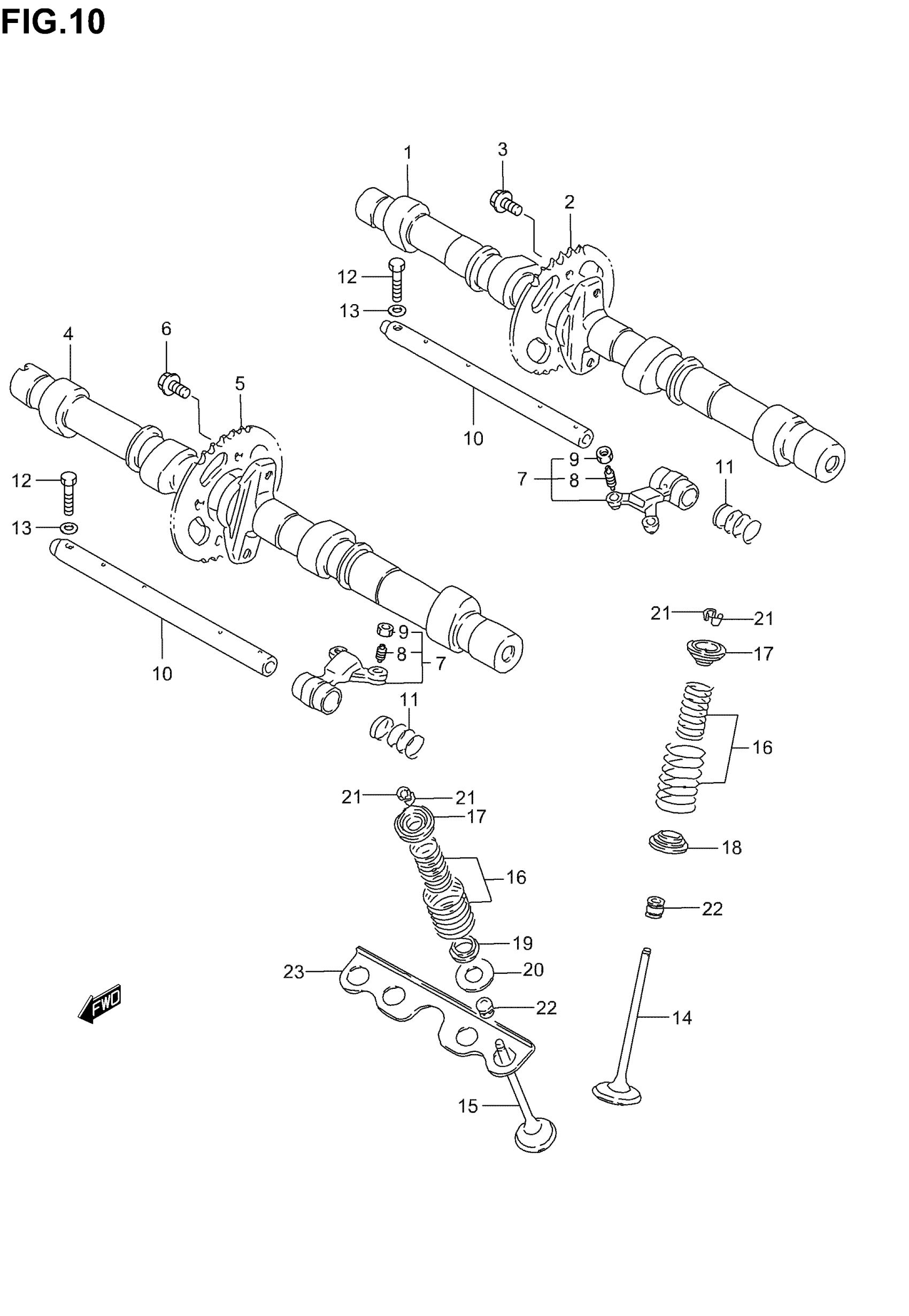

Suzuki GSF1200 (2005) CAM SHAFT / VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE

12711-26D00

Unavailable

2

SPROCKET

12741-26D00

Unavailable

3

BOLT (7X11)

09103-07001

$2.43

4

CAM SHAFT, EXHAUST

12721-26E20

Unavailable

5

SPROCKET

12741-26D00

Unavailable

6

BOLT (7X11)

09103-07001

$2.43

7

ARM, ROCKER | Includes Item(s) 8 - 9

12840-27A01

$76.68

8

SCREW

12842-49201

$6.63

9

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

10

SHAFT, ROCKER ARM

12861-27A00

Unavailable

11

SPRING

09440-13014

$2.45

12

BOLT This part replaces 09112-06004.

01800-06303

Unavailable

13

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

14

VALVE, INTAKE

12911-06B02

$47.72

15

VALVE, EXHAUST

12912-06B00

$77.00

16

SPRING SET

12920-06B00

$13.81

17

RETAINER,VALVE SPRING

12931-27A20

$8.12

18

SEAT,VALVE SPRING

12933-81400

$5.17

19

SEAT, EXHAUST INNER

12934-27A01

$5.36

20

SEAT, EXHAUST OUTER

12935-27A00

$3.25

21

COTTER, VALVE

12932-27A00

$2.26

22

OIL SEAL (5X10X8.7)

09289-05011

$6.32

23

PLATE

11137-27A02

Unavailable
