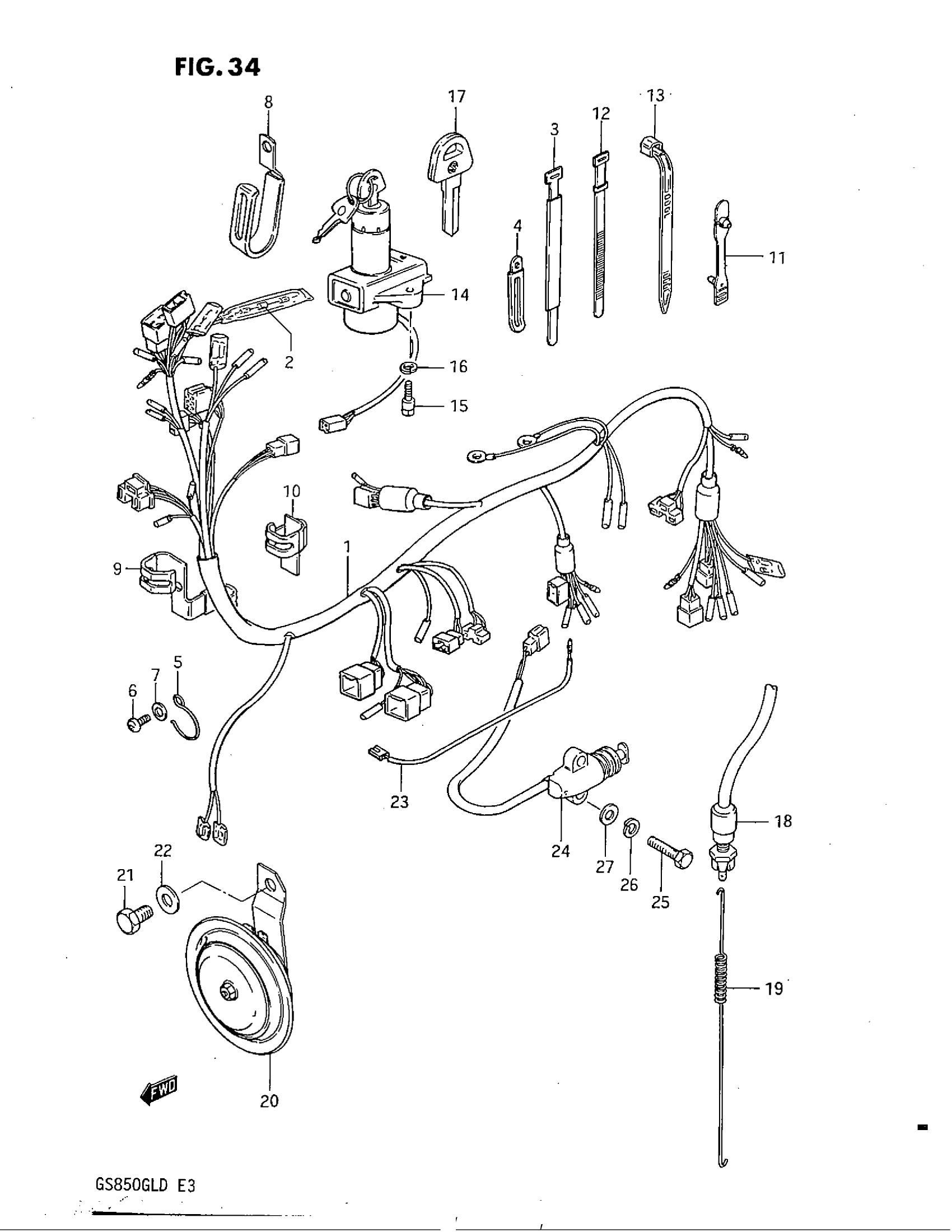

Suzuki GS850GL (1983) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS | MODEL Z

36610-45360

Unavailable

1

WIRING HARNESS | MODEL D; Includes Item(s) 2

36610-49161

Unavailable

2

DIODE

36611-02100

Unavailable

3

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

4

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

$1.74

4

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

5

CLIP, WIRING HARNESS This part replaces 36619-44001.

36619-44002

Unavailable

6

SCREW This part replaces 02112-06128.

02112-06127

$1.84

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

CLAMP

36651-34400

Unavailable

9

CLAMP, RH

36651-34410

Unavailable

10

CLAMP, LH

36651-34420

Unavailable

11

CLAMP

09407-05403

$2.38

12

BAND

09407-14401

$3.77

13

BAND

09407-14403

$2.26

14

SWITCH ASSY, IGNITION | Includes Item(s) 15 - 16

37100-45301

Unavailable

15

BOLT This part replaces 37152-47010.

07130-0616B

$2.39

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

KEY, BLANK | OPT

37146-47010

$18.39

18

SWITCH, REAR BRAKE LAMP This part replaces 37740-04571.

37740-48071

$19.18

19

SPRING This part replaces 09443-06018.

09443-06018-XC0

Unavailable

20

HORN

38500-34230

Unavailable

21

BOLT This part replaces 01107-08128.

01500-08127

$2.62

22

WASHER This part replaces 08322-11088.

08322-01087

$2.13

23

LEAD WIRE, PRESSURE SWITCH This part replaces 36853-45000.

36853-45001

Unavailable

24

SWITCH, SIDE STAND WARNING This part replaces 37840-49400.

37840-14A01

Unavailable

25

BOLT This part replaces 01107-05168.

01500-0516B

$2.15

26

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

27

WASHER This part replaces 08322-21058.

08322-01057

$2.13
