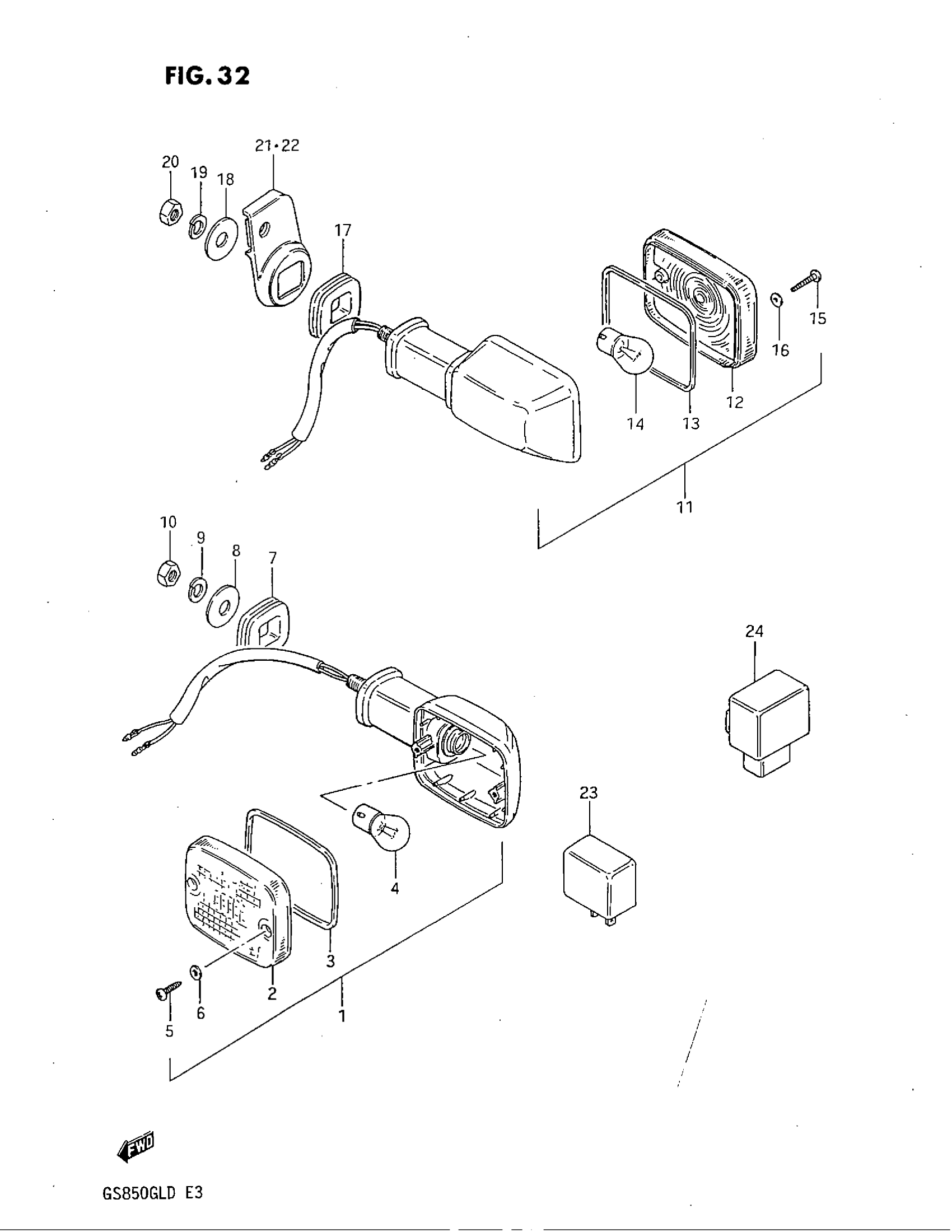

Suzuki GS850GL (1983) TURN SIGNAL LAMP (MODEL D) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 35601-45130.

35603-45131

Unavailable

2

LENS

35612-49231

$17.75

3

GASKET

35613-49230

$5.38

4

BULB (12V,23W)

09471-12006

$3.98

5

SCREW This part replaces 03211-04208.

03211-04207

$1.49

6

GASKET

35627-43010

$2.28

7

CUSHION

09320-15002

$4.11

8

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

9

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

10

NUT This part replaces 08310-12108.

08310-00107

$2.19

11

NO DESCRIPTION AVAILABLE | Includes Item(s) 12 - 16 This part replaces 35603-45130.

35603-45131

Unavailable

12

LENS

35612-49231

$17.75

13

GASKET

35613-49230

$5.38

14

BULB (12V,23W)

09471-12006

$3.98

15

SCREW This part replaces 03211-04208.

03211-04207

$1.49

16

GASKET

35627-43010

$2.28

17

CUSHION

09320-15004

$4.77

18

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

19

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

20

NUT This part replaces 08310-12108.

08310-00107

$2.19

21

BRACKET, REAR RH

35620-45302

Unavailable

22

BRACKET, REAR LH

35640-45302

Unavailable

23

RELAY, TURN SIGNAL

38610-49231

Unavailable

24

UNIT,TURN SIG C This part replaces 38830-49500.

38830-49X00

Unavailable
