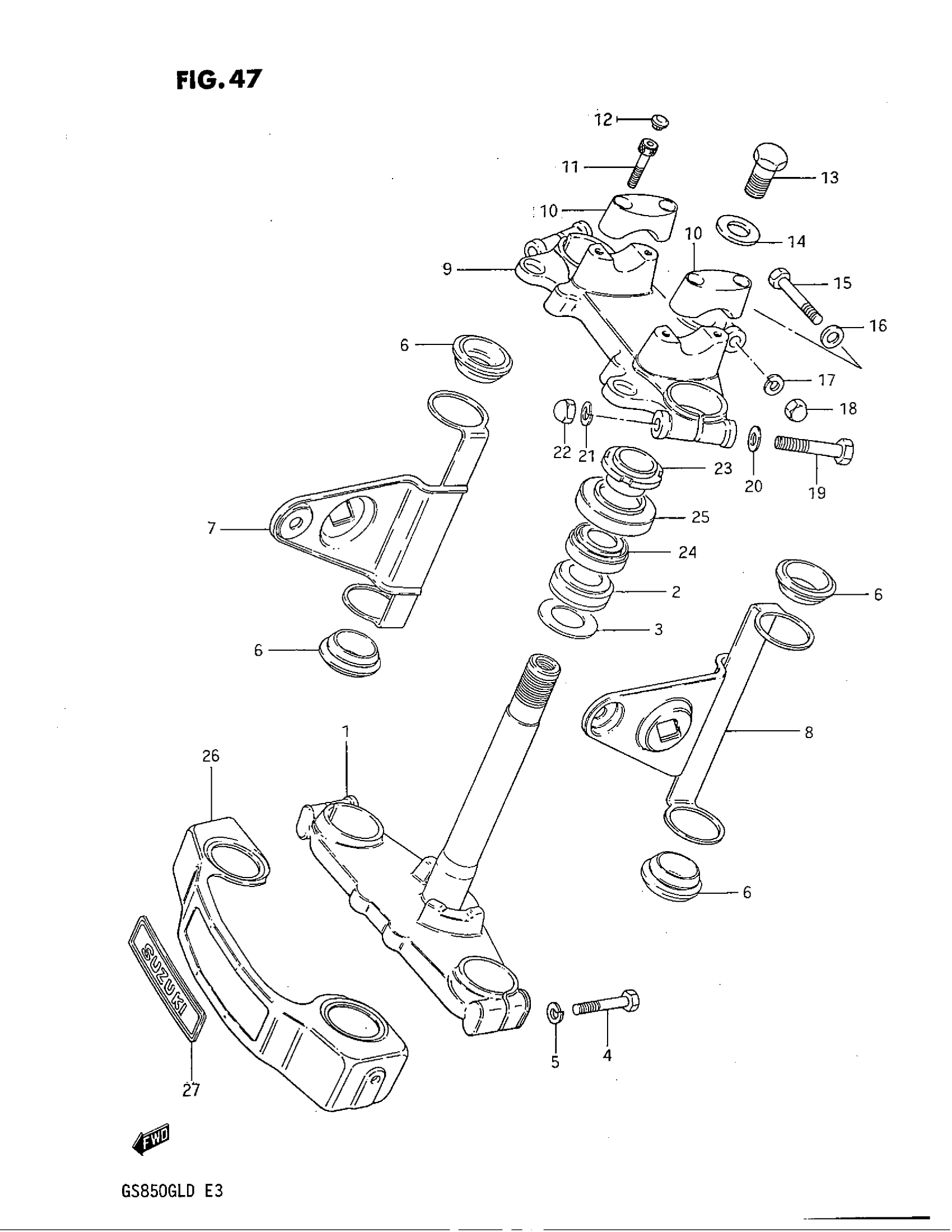

Suzuki GS850GL (1983) STEERING STEM (MODEL D) Diagram

#

Description
Price

1

STEERING STEM (BLACK) | Includes Item(s) 2 - 3

51410-45380-291

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

4

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

CUSHION, BRACKET This part replaces 51553-49000.

51553-34300

$4.52

7

BRACKET, HEADLAMP RH

51530-45380

Unavailable

8

BRACKET, HEADLAMP LH

51540-45380

Unavailable

9

STEM HEAD, STEERING | BLACK

51311-45380-291

Unavailable

10

NO DESCRIPTION AVAILABLE | BLACK This part replaces 56211-49500-291.

56211-26D00

Unavailable

11

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

$1.74

12

CAP

09250-06004

$1.49

13

BOLT This part replaces 51353-45380.

51352-43530

$15.42

14

WASHER

51356-45380

Unavailable

15

BOLT This part replaces 01107-08508.

01500-08507

$3.05

16

WASHER This part replaces 08322-21088.

08322-01087

$2.13

17

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

18

NUT This part replaces 08313-11088.

08313-10087

$2.28

19

BOLT This part replaces 01107-10558.

01500-1055A

$3.55

20

WASHER This part replaces 08322-21108.

08322-01107

$2.15

21

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

22

NUT This part replaces 08313-11108.

08313-10107

$2.50

23

NUT, STEERING STEM

51631-34200

Unavailable

24

BEARING, UPPER

09265-25008

Unavailable

25

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

26

COVER, FRONT FORK

51871-45301

Unavailable

27

EMBLEM, FRONT FORK COVER

68211-45310

Unavailable
