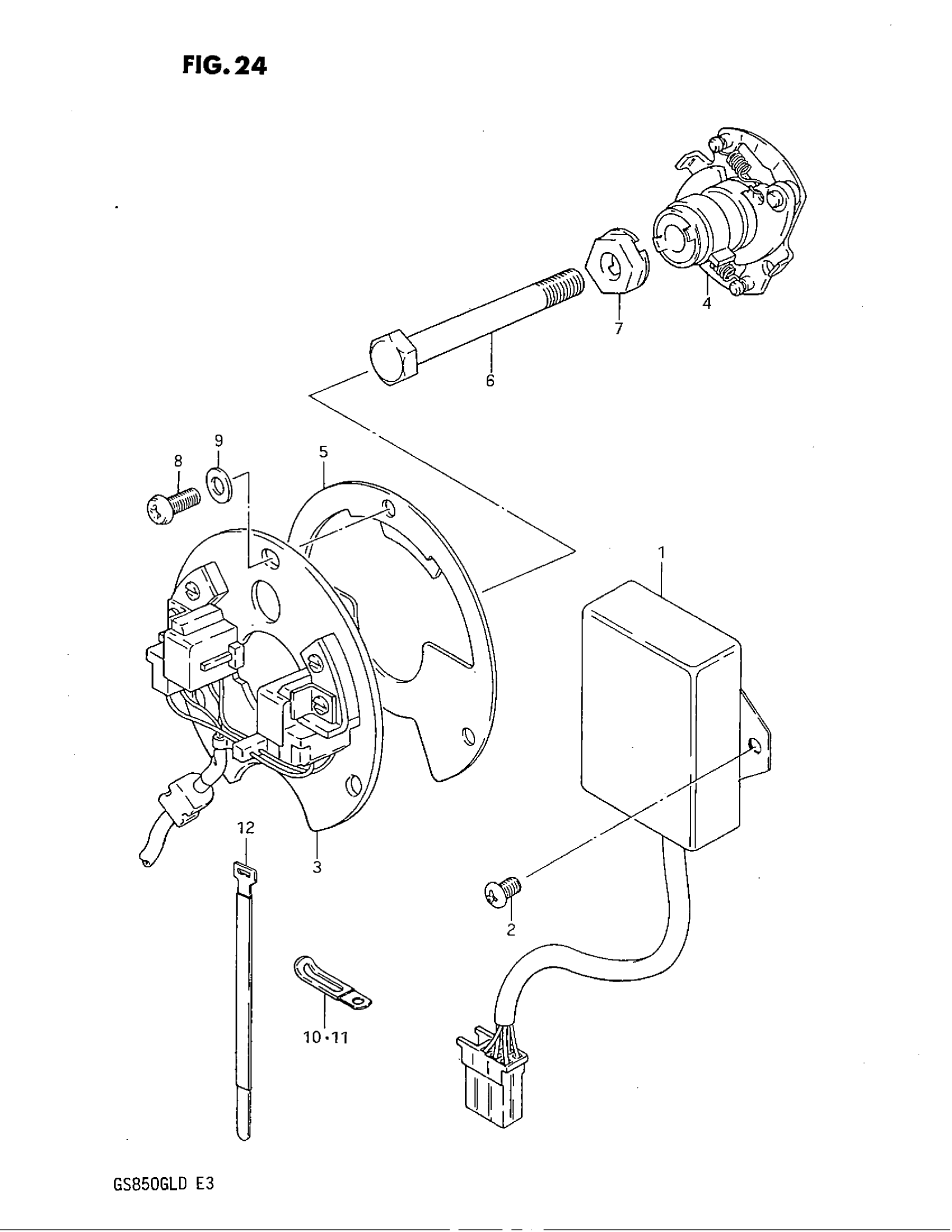

Suzuki GS850GL (1983) SIGNAL GENERATOR (MODEL Z) Diagram

#

Description

Price

1

UNIT, IGNITER This part replaces 32900-45410.

32900-45120

Unavailable

2

SCREW This part replaces 02112-06208.

02112-06207

$1.77

3

GENERATOR ASSY This part replaces 33110-45110.

33110-45410

Unavailable

4

GOVERNOR ASSY, ADVANCE

33120-45110

Unavailable

5

PLATE, TIMING

33371-45100

Unavailable

6

BOLT This part replaces 01107-08658.

01500-0865B

$3.19

7

WASHER

33465-47000

Unavailable

8

SCREW

09125-05024

$1.87

9

WASHER This part replaces 09160-05027.

08322-01057

$1.86

10

CLAMP This part replaces 09404-06401.

09404-06039

$1.73

11

CLAMP This part replaces 09404-08401.

09404-08420

$2.90

12

CLAMP This part replaces 09407-18301.

09407-18302

$2.27
