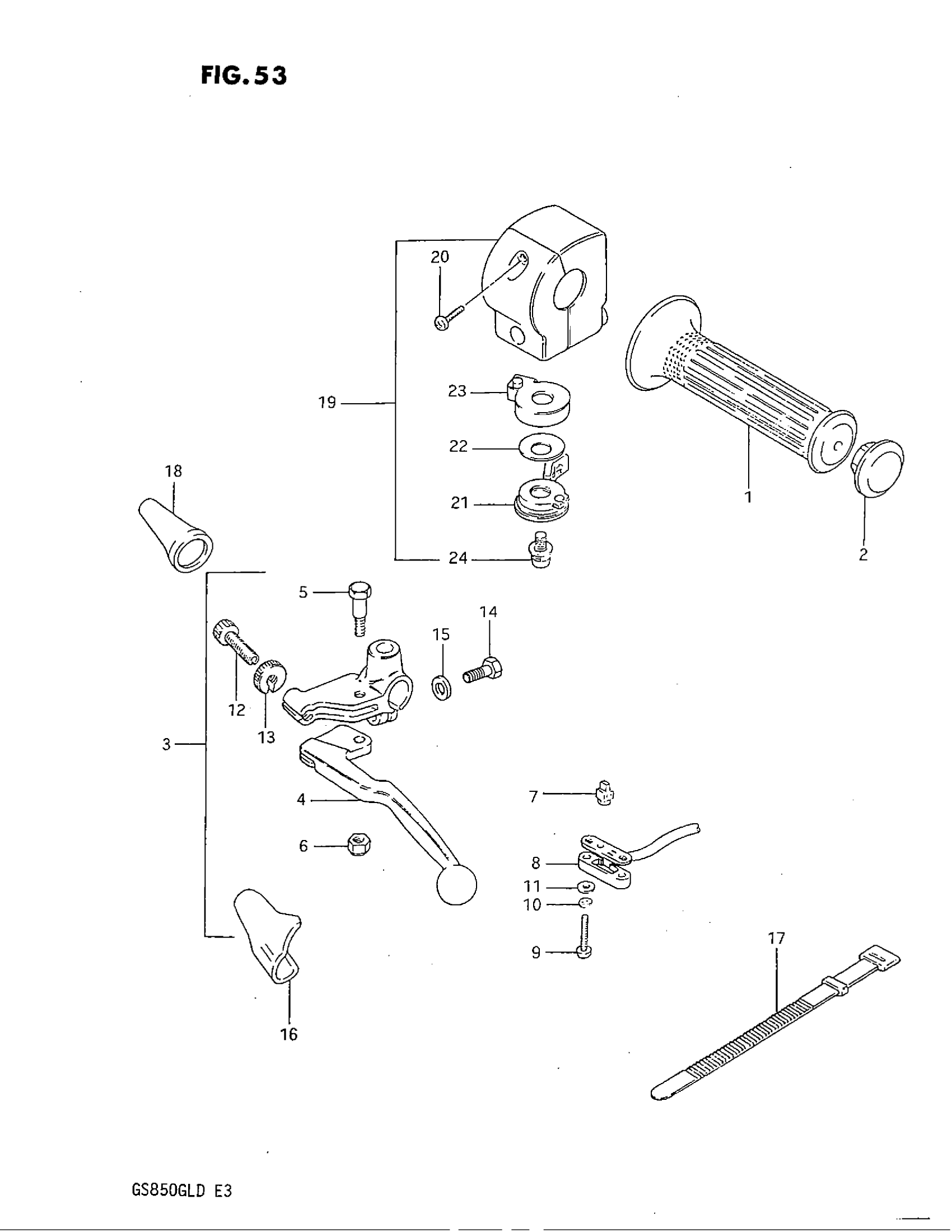

Suzuki GS850GL (1983) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, LH This part replaces 57211-44100.

57211-49500

$13.14

2

CAP, GRIP END LH

57216-49100

Unavailable

3

LEVER ASSY,CLUT | MODEL Z This part replaces 57500-49112.

57500-49301

Unavailable

3

LEVER ASSY,CLUT | MODEL D; Includes Item(s) 4 - 15 This part replaces 57500-49113.

57500-49301

Unavailable

4

LEVER, CLUTCH

57620-49111

$21.26

5

BOLT | MODEL Z This part replaces 57431-11011.

57431-11013

$5.95

5

BOLT, LEVER | MODEL D

57431-49110

$5.95

6

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

7

HOLDER

57465-18601

$3.97

8

COVER

57481-33010

$5.50

9

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.08

10

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

11

WASHER This part replaces 08322-21038.

08322-01037

$1.95

12

ADJUSTER, CABLE

57441-11010

$5.14

13

NUT

57442-11010

$2.80

14

BOLT | MODEL Z

57451-49100

Unavailable

14

BOLT | MODEL D This part replaces 57451-49110.

01204-06204

$2.97

15

.WASHER | MODEL D This part replaces 08322-21064.

08322-0106B

$2.24

16

COVER

57661-31000

$6.83

17

BAND (L:120)

09407-12402

$2.80

18

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.40

19

SWITCH ASSY,HAN | MODEL Z This part replaces 37400-45370.

37400-45373

Unavailable

19

SWITCH ASSY,HAN | MODEL D; Includes Item(s) 20 - 24 This part replaces 37400-45372.

37400-45373

Unavailable

20

SCREW This part replaces 02112-05165.

02112-05164

$2.87

21

LEVER, STARTER

58721-27503

$9.97

22

WASHER

58722-03010

$3.50

23

BODY | MODEL Z This part replaces 37572-49440.

37572-49441

$12.94

23

BODY, STARTER LEVER | MODEL D

37572-49441

$12.94

24

SCREW This part replaces 37574-49440.

02112-7516A

$2.42
