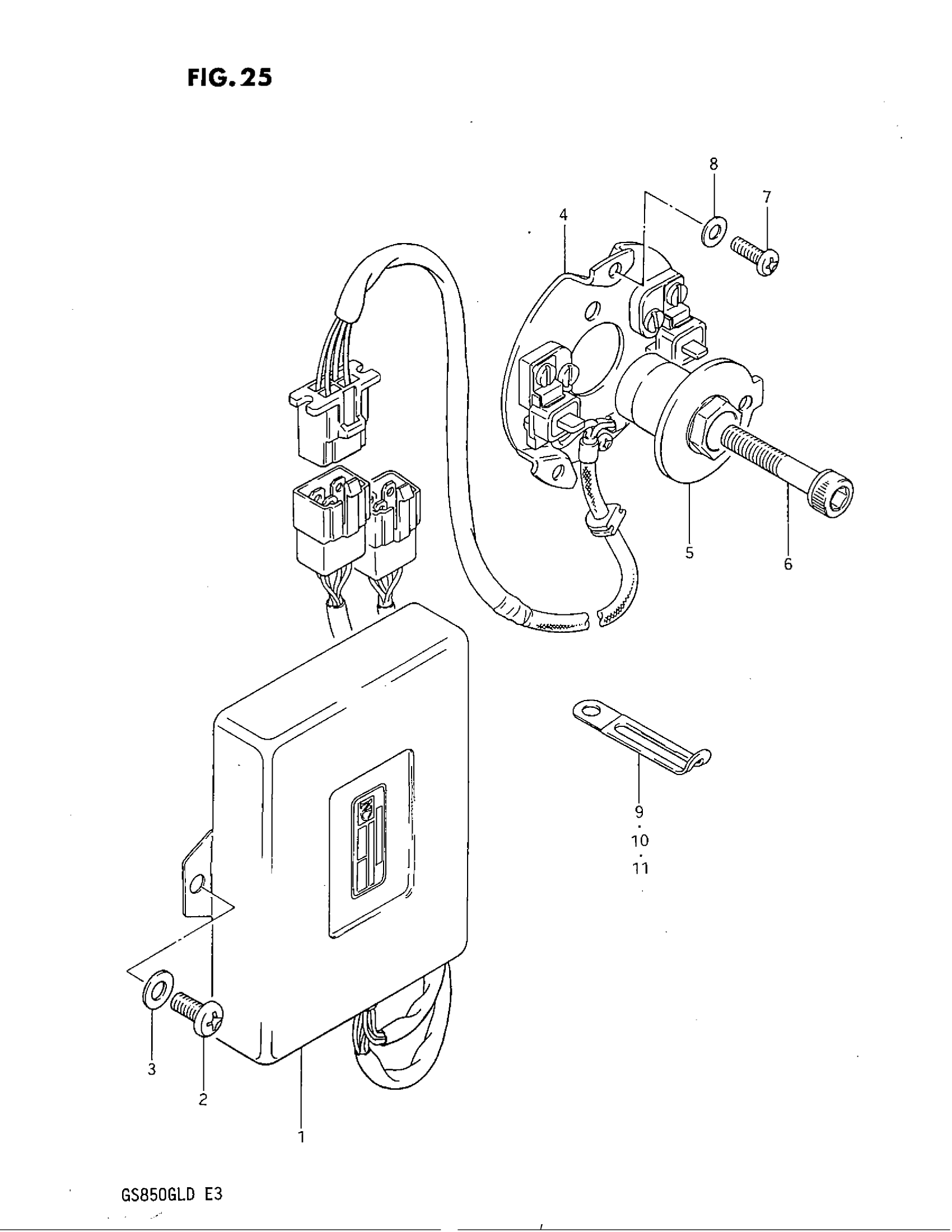

Suzuki GS850GL (1983) SIGNAL GENERATOR (MODEL D) Diagram

#

Description

Price

1

IGNITER UNIT

32900-49410

Unavailable

2

SCREW This part replaces 02112-06128.

02112-06127

$1.84

3

WASHER This part replaces 08322-21068.

08322-01067

$2.13

4

STATOR, SIG GEN This part replaces 33110-49410.

33110-493A0

$343.93

5

ROTOR, SIGNAL

33120-49410

Unavailable

6

BOLT, MUFFLER SUPPORT This part replaces 09106-08018.

07130-0845B

$3.99

7

SCREW

09125-05024

$1.72

8

WASHER This part replaces 09160-05027.

08322-01057

$2.13

9

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

10

CLAMP This part replaces 09404-08401.

09404-08420

$3.16

11

CLAMP This part replaces 09404-08402.

09404-08420

$3.16
