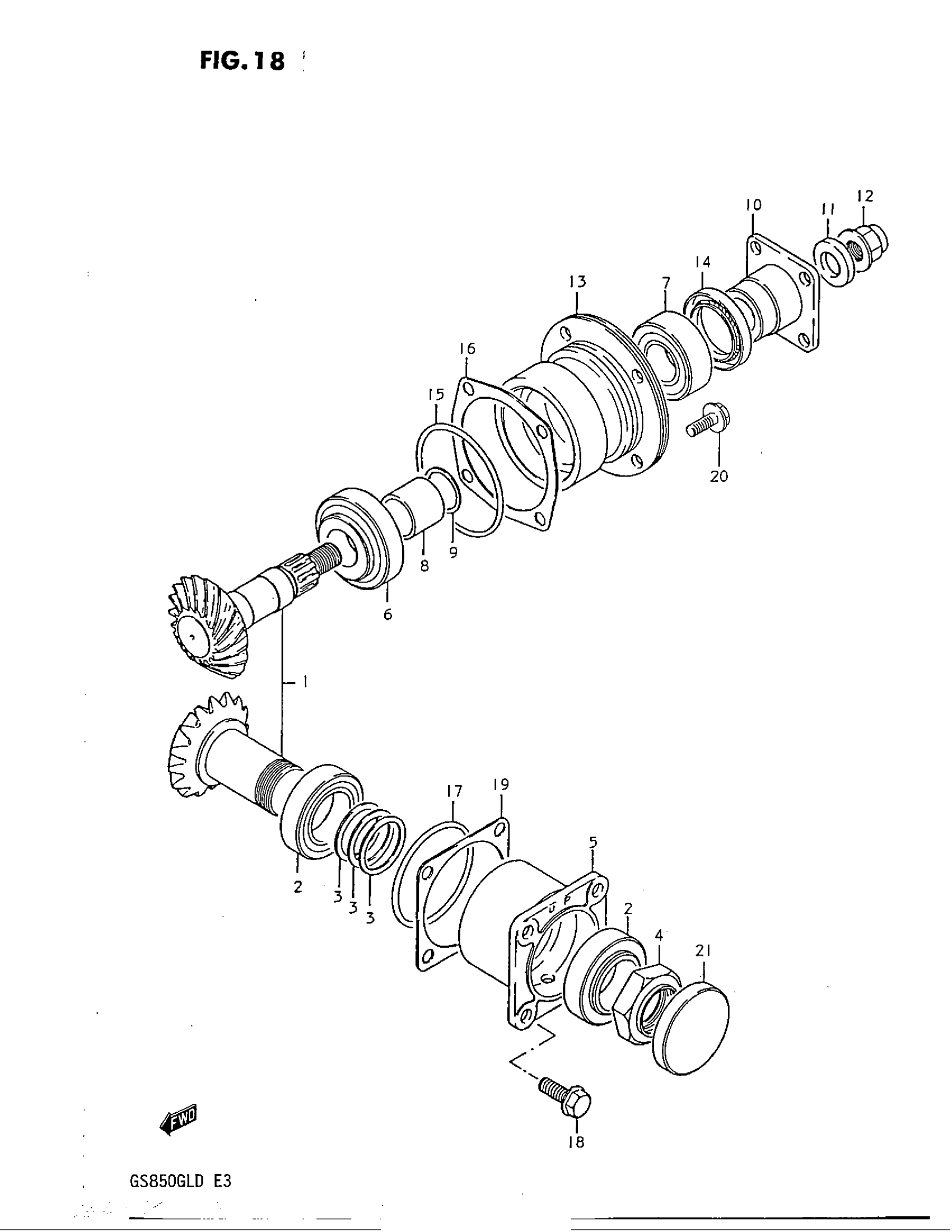

Suzuki GS850GL (1983) SECONDARY DRIVE GEAR Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 14 This part replaces 24900-45830.

24901-45100

Unavailable

1

NO DESCRIPTION AVAILABLE | NT:16/17 This part replaces 24900-45811.

24911-45101

Unavailable

2

BEARING

09265-32001

Unavailable

3

SHIM (T:1.60)

09181-32001

Unavailable

3

SHIM (T:1.62)

09181-32002

Unavailable

3

SHIM (T:1.64)

09181-32003

Unavailable

3

SHIM (T:1.66)

09181-32004

Unavailable

3

SHIM (T:1.68)

09181-32005

Unavailable

3

SHIM (T:1.70)

09181-32006

Unavailable

3

SHIM (T:1.80)

09181-32007

Unavailable

3

SHIM (T:1.90)

09181-32008

Unavailable

3

SHIM (T:2.00)

09181-32009

Unavailable

4

NUT

09159-32001

Unavailable

5

HOUSING, DRIVE BEVEL GEAR

24931-45100

Unavailable

6

BEARING, FRONT

09265-25012

Unavailable

7

BEARING, REAR This part replaces 09265-25011.

09265-25024

$60.80

8

SPACER

09180-25056

Unavailable

9

SHIM (T:1.60)

09181-25006

Unavailable

9

SHIM (T:1.62)

09181-25007

Unavailable

9

SHIM (T:1.64)

09181-25008

Unavailable

9

SHIM (T:1.66)

09181-25009

Unavailable

9

SHIM (T:1.68)

09181-25010

Unavailable

9

SHIM (T:1.70)

09181-25011

Unavailable

9

SHIM (T:1.80)

09181-25012

Unavailable

9

SHIM (T:1.90)

09181-25013

Unavailable

9

SHIM (T:2.00)

09181-25014

Unavailable

10

FLANGE, UNIVERSAL JOINT

24951-49100

Unavailable

11

WASHER

09160-14021

$6.63

12

NUT

09159-14010

$14.12

13

HOUSING, DRIVEN BEVEL GEAR

24941-45101

Unavailable

14

OIL SEAL

09283-35018

Unavailable

15

O RING

09280-70005

$6.23

16

SHIM (T:0.30)

24945-45101

Unavailable

16

SHIM (T:0.35)

24945-45100

Unavailable

16

SHIM (T:0.40)

24945-45102

Unavailable

16

SHIM (T:0.50)

24945-45103

Unavailable

16

SHIM (T:0.60)

24945-45104

Unavailable

17

O RING

09280-63004

$4.75

18

BOLT, REAR LH This part replaces 01517-08208.

01550-08207

$2.69

19

SHIM (T:0.30)

24935-45101

Unavailable

19

SHIM (T:0.35)

24935-45100

Unavailable

19

SHIM (T:0.40)

24935-45102

Unavailable

19

SHIM (T:0.50)

24935-45103

Unavailable

19

SHIM (T:0.60)

24935-45104

Unavailable

20

BOLT This part replaces 01517-08258.

01550-08257

$2.81

21

PLUG

09241-58001

Unavailable
