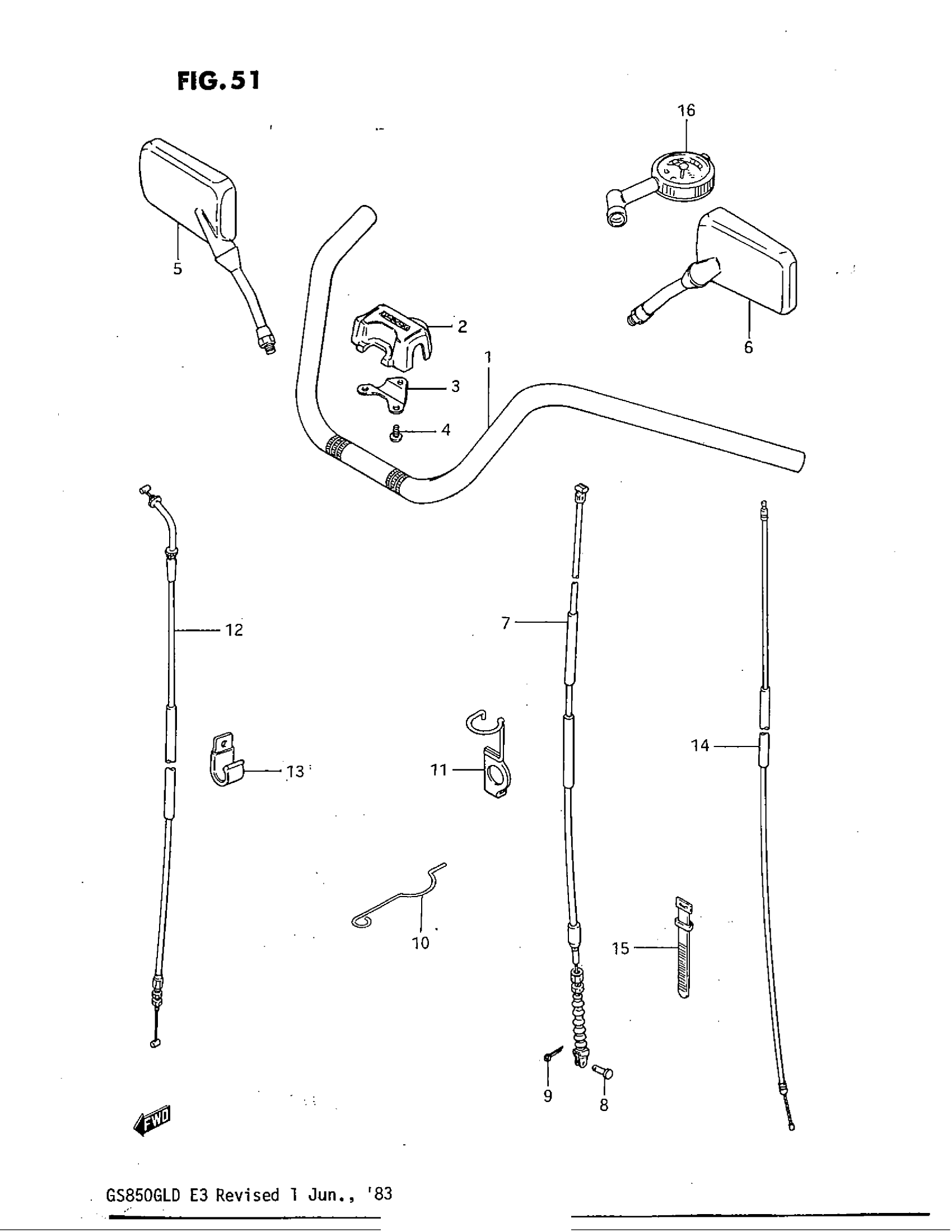

Suzuki GS850GL (1983) HANDLEBAR (MODEL D) Diagram

#

Description
Price

1

HANDLEBAR

56110-49120

Unavailable

2

COVER

56171-49100

Unavailable

3

BRACKET

56175-49100

Unavailable

4

SCREW This part replaces 03211-04108.

03211-0410B

$1.93

5

NO DESCRIPTION AVAILABLE This part replaces 56500-47100.

56500-47102

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 56600-47100.

56600-47102

Unavailable

7

CABLE, CLUTCH

58200-45140

Unavailable

8

PIN

09200-06011

Unavailable

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

10

GUIDE

58621-45100

Unavailable

11

GUIDE, CABLE

58621-34400

Unavailable

12

CABLE, THROTTLE This part replaces 58300-45120.

58300-45221

Unavailable

13

CLAMP This part replaces 09403-00069.

09404-06037

Unavailable

14

CABLE, STARTER This part replaces 58410-45301.

58410-49X00

Unavailable

15

CLAMP (L:125) This part replaces 09407-08401.

09407-14403

$2.26

16

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
