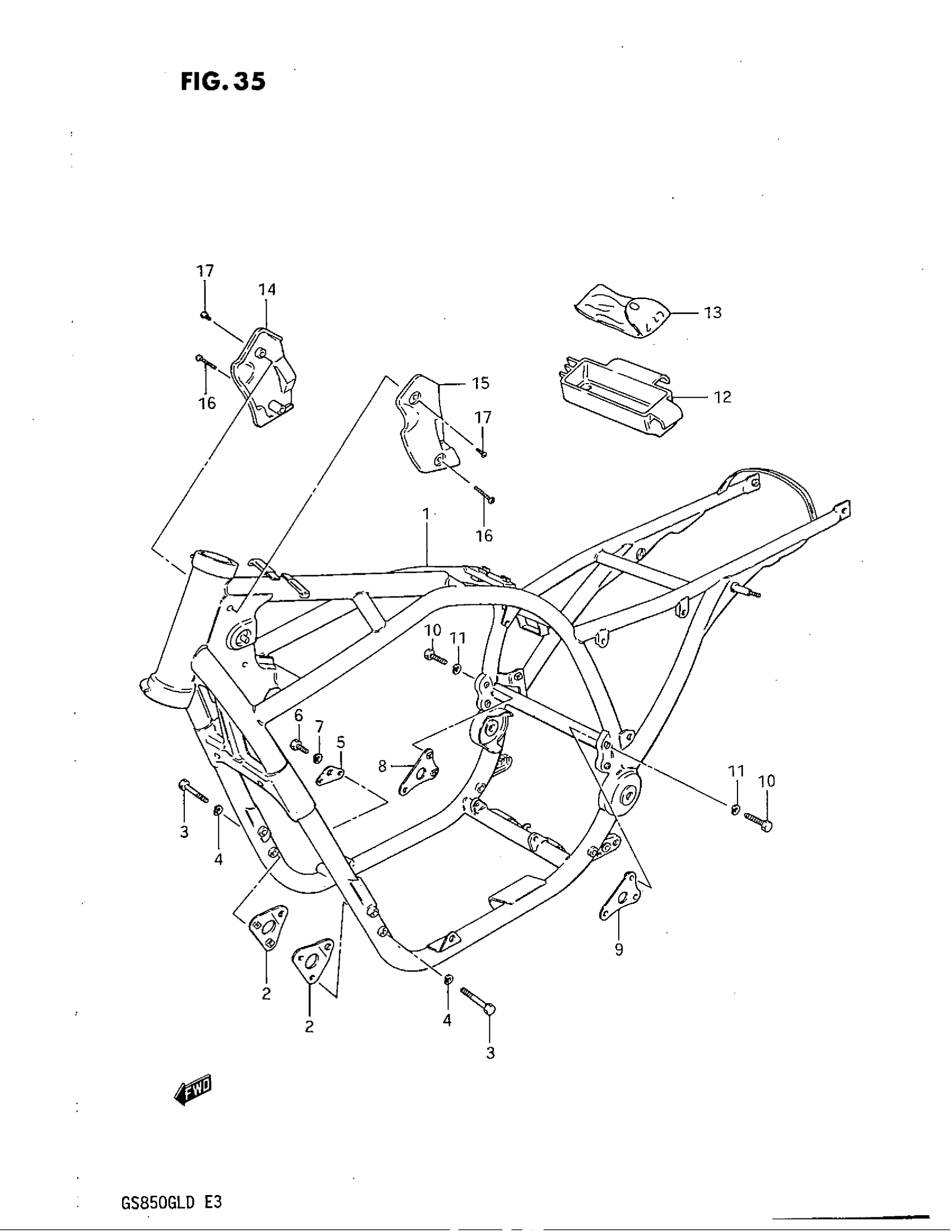

Suzuki GS850GL (1983) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL Z This part replaces 41100-45351-019.

41100-45352-019

Unavailable

1

FRAME (BLACK) | MODEL D

41100-49251-019

Unavailable

2

PLATE, NO.1 (BLACK) | MODEL Z This part replaces 41910-45100-019.

41910-45101-019

Unavailable

2

PLATE, NO.1 (BLACK) | MODEL D

41910-45101-019

Unavailable

3

BOLT This part replaces 01107-08658.

01500-0865B

$3.49

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

PLATE, NO.2 (BLACK)

41993-45000-019

Unavailable

6

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

PLATE, NO.4 RH (BLACK)

41970-45100-019

Unavailable

9

PLATE, NO.4 LH (BLACK)

41980-45350-019

Unavailable

10

BOLT This part replaces 01107-08408.

01500-0840A

$2.60

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

HOLDER, TOOL

41551-45300

Unavailable

13

TOOL ASSY This part replaces 09800-00231.

09800-21025

Unavailable

14

COVER, FRAME HEAD RH

51876-45300

Unavailable

15

COVER, FRAME HEAD LH

51886-45300

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 02142-05505.

02142-05503

Unavailable

17

SCREW, UPPER

02142-05107

$1.49
